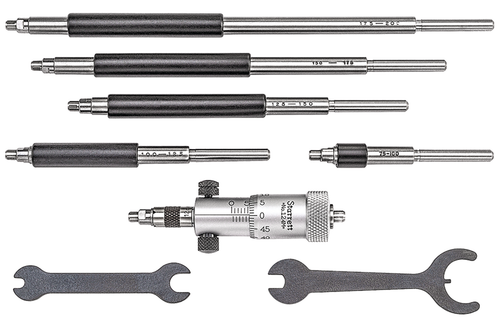

The Starrett 124 Solid -Rod Inside Micrometer Sets are the most popular inside micrometers because of their lightness, ease of use, and range. They are very useful for measuring inside diameters of cylinders and rings and measuring parallel surfaces. The desired range is obtained by assembling rods and spacing collars to the micrometer head. Measuring rods are provided with a shoulder that is set accurately in the micrometer head and locked in position. When assembling rods to the A and B heads, the reading line on the micrometer head should be lined up with the marking on each rod (except for the 2-3" and the 50-75mm rods). Rod diameters are approximately 1/4" (6mm) on the A and B sizes, and approximately 11/32" (8.5mm) on the C size. Each rod has individual length adjustment for the anvil by means of special wrenches furnished. 8-32" Range, .001" Grad, 4 Measuring Rods with Case.
124CZ Solid -Rod Inside Micrometer
$844.00
- SKU:
- 124CZ
- UPC:
- 049659505504
- Case Type:
- Padded Case
- Category:
- Precision Measuring Tools > Precision Hand Tools > Micrometers > Inside Micrometers
- Cal Prop 65 Chemical:
- Lead
- Cal Prop 65 Warning:
- Y
- Cal Prop 65 Statement:
- WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
- Country of Origin :
- United States
- EAN:
- 0049659505504
- EDP:
- 50550
- Feature 01:
- Insulated rods marked with length
- Feature 02:
- Adjustable for length
- Feature 03:
- Measuring rods are solid
- Feature 04:
- Hardened and ground anvils
- Feature 05:
- Quick-reading figures
- Feature 06:
- 6-1/2" (165mm) long handle is available (124H)
- Athol Inventory:
- 2
- Available for Purchase-US-EN:
- Y
- Available In Region :
- United States|Canada
- Description:
- INSIDE MICROMETER SET, 8-32" RANGE, .001"
- Flat Stock Inventory:
- 0
- Item Class:
- Stand-Alone
- Max. Range (in):
- 32
- Min. Range (in):
- 12
- Mt Airy Inventory :
- 0
- Parent SKU As a Regular Field:
- 124
- Product Group Sort:
- icc110104
- Webber Inventory:
- 0
- Website-URL:
- https://www.starrett.com/details?cat-no=124CZ
- Rocky Mountain Inventory:
- 0
- Show in Web Nav?:
- Yes
- To Delete:
- false
- To Remove:
- false
- Total Inventory:
- 2
- US Web Temp Hold:
- Off
- Global Product Classification:
- INSIDE MICROMETER SET, 8-32" RANGE, .001"
- Graduations (in):
- .001"
- Item Segmentation:
- Catalog
- Long Description:
- Each
- Made in America:
- Yes
- Main Image:
- https://s3-us-west-2.amazonaws.com/catsy.833/124CZcUSp1.tif
- Manufacturer's code:
- 049659
- Measuring Rods (qty):
- 4
- Micrometer Type:
- Mechanical Inside Micrometer Set
- NAFTA Producer:
- Yes
- Name:
- INSIDE MICROMETER SET, 8-32" RANGE, .001"
- Item ID:
- 124CZ
- POA Flag:
- N
- Product Photo 01:
- https://s3-us-west-2.amazonaws.com/catsy.833/124CZcUSp1.tif
- Product Title:
- 124CZ Solid -Rod Inside Micrometer
- Range (in):
- 8-32"
- SDS Indicator:
- N
- Series Title:
- 124, 124M Solid-Rod Inside Micrometers
- Shelf Pack Item Qty:
- 1
- Shelf Pack Pricing Quantity:
- 1
- Short Description:
- Solid -Rod Inside Micrometer Set with Case, 8-32" Range, .001"
- Spacing Collars:
- One 1" Two 2"
- Status:
- Active
- A0006160MSDSINDICATOR:
- N
- A002040UCC12UPCA:
- 049659505504
- A002050EANUCC13EAN13:
- 0049659505504
- Accuracy (in):
- Lead accuracy +/-.0001" per inch
- Tariff Code for entry into Mexico:
- Yes
- Top 354:
- N
- Unit Pack Height (in):
- 2
- Unit Pack Height (mm):
- 38.1
- Unit Pack Item Qty:
- 1
- Unit Pack Length (in):
- 26.9
- Unit Pack Length (mm):
- 655.32
- Unit Pack Weight (kg):
- 1.9958048
- Unit Pack Weight (lbs):
- 4.25
- Unit Pack Width (in):
- 5.5
- Unit Pack Width (mm):
- 111.76
- UOM:
- Each
- UPC:
- 049659505504
- Use Placeholder Photo:
- N
- US List Price:
- $844.00
- US Next List Price:
- $844.00
- US Web Price:
- $844.00
- Web Catalog-US-EN:
- Y
- Web Price:
- $844.00
- Web Priority-US-EN:
- 13000015
- Electronic or Mechanical:
- Mechanical
- Starrett Model No.:
- 124
- Category L1:
- Micrometers
- Category L2:
- Inside Micrometers
- 01 Attribute :
- Micrometer Type
- 01 Spec:
- Mechanical Inside Micrometer Set
- 02 Attribute:
- Electronic or Mechanical
- 02 Spec:
- Mechanical
- 03 Attribute:
- Range (in)
- 03 Spec:
- 8-32"
- 04 Attribute:
- Accuracy (in)
- 04 Spec:
- +/- .00015" (whole surface), +/- .0002" (edges),
- 05 Attribute:
- Graduations (in)
- 05 Spec:
- .001"
- 06 Attribute:
- Measuring Rods (qty)
- 06 Spec:
- 4
- 07 Attribute:
- Case Type
- 07 Spec:
- Padded Case
- 08 Attribute:
- Spacing Collars
- 08 Spec:
- One 1" Two 2"
- Dimensional Drawing PDF:
- https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-124CZ-Dimensional-Drawing.pdf
- Dimensional Drawing (IMG):
- https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-124CZ-Dimensional-Drawing.tif
- Discontinued:
- false
- Catalog URL-US-EN:
- https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Precision-Hand-Tools.pdf
- Current Catalog:
- 33
- Current Catalog Page:
- 79
- Catalog Section Page:
- 61
- Catalog:
- https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Precision-Hand-Tools.pdf
- Catalog Section:
- https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Section-01-Micrometers.pdf
- Western Link Inventory:
- 0
- Orderable Online Today (US Only):
- Yes
