The Starrett 196 Universal Back Plunger Dial Indicator features graduations to .001" and 0.02mm that handle by far the majority of jobs. Shank diameter is 1/4" (6.3mm). Antimagnetic models are also available - (inch reading) 196A6Z and 196B6. For full use, the operator first chooses the proper contact from the three hardened contact points that come with each model. Then the contact should be brought against the work with enough pressure to give the hand one full turn. Set the hand at zero by rotating the dial with the knurled bezel. This provides one full rotation of the hand both to the right and left of zero, showing a rise or drop in the work and the amount of that variation. 0-100 with 3 Contact Points and Adapter only This provides one full rotation of the hand both to the right and left of zero, showing a rise or drop in the work and the amount of that variation.

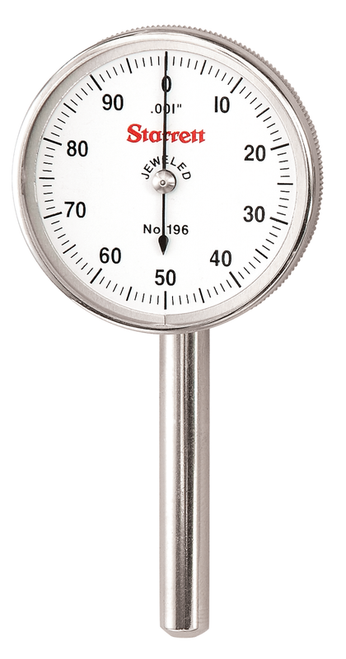

196B1 Universal Back Plunger Dial Indicator
$201.00
- SKU:
- 196B1
- UPC:
- 049659506990
- Case:
- None
- Category:
- Precision Measuring Tools > Precision Hand Tools > Indicators & Gages > Back Plunger Indicators
- Cal Prop 65 Chemical:
- Lead
- Cal Prop 65 Warning:
- Y
- Cal Prop 65 Statement:
- WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
- Country of Origin :
- Brazil
- Dial Color:
- White
- Dial Reading:
- 0-100
- EAN:
- 0049659506990
- EDP:
- 50699
- Feature 01:
- One of the most versatile indicators available
- Feature 02:
- Accurate and reliable
- Feature 03:
- Simple to operate
- Feature 04:
- Rugged, with few moving parts
- Feature 05:
- Smooth in operation
- Feature 06:
- For full use, the operator first chooses the proper contact from the three hardened contact points that come with each model
- Feature 07:
- Shank diameter is 1/4" (6.3mm)
- Feature 08:
- Indicator with 3 Contact Points and Adaptor Only
- Athol Inventory:
- 557
- Attachments:
- Indicator with 3 Contact Points and Adaptor Only
- Available for Purchase-US-EN:
- Y
- Available In Region :
- New Zealand
- Description:
- DIAL TEST INDICATOR, 0-100 DIAL
- Flat Stock Inventory:
- 0
- Item Class:
- Stand-Alone
- Max. Range (in):
- 0.2
- Min. Range (in):
- 0
- Mt Airy Inventory :
- 0
- Parent SKU As a Regular Field:
- 196
- Product Group Sort:
- icc110502
- Webber Inventory:
- 0
- Website-URL:
- https://www.starrett.com/details?cat-no=196B1
- Rocky Mountain Inventory:
- 0
- Show in Web Nav?:
- Yes
- To Delete:
- false
- To Remove:
- false
- Total Inventory:
- 557
- US Web Temp Hold:
- Off
- Global Product Classification:
- BACK PLUNGER INDICATOR, 0-100 DIAL
- Graduations (in):
- .001"
- Includes:
- Indicator and Accessories
- Item Segmentation:
- Catalog
- Long Description:
- Each
- Main Image:
- https://s3-us-west-2.amazonaws.com/catsy.833/196B1cUSp1.tif
- Manufacturer's code:
- 049659
- NAFTA Producer:
- Yes
- Name:
- BACK PLUNGER INDICATOR, 0-100 DIAL
- Item ID:
- 196B1
- POA Flag:
- N
- Product Photo 01:
- https://s3-us-west-2.amazonaws.com/catsy.833/196B1cUSp1.tif
- Product Photo 02:
- https://s3-us-west-2.amazonaws.com/catsy.833/196B1+w-57AcUSa1.tif
- Product Photo 03:
- https://s3-us-west-2.amazonaws.com/catsy.833/657AA_w-196B1cUSa1.tif
- Product Title:
- 196B1 Universal Back Plunger Dial Indicator
- Range (in):
- .200"
- SDS Indicator:
- N
- Series Title:
- 196, 196M Universal Back-Plunger Dial Test Indicators
- Shelf Pack Item Qty:
- 1
- Shelf Pack Pricing Quantity:
- 1
- Short Description:
- Back Plunger Dial Indicator, .200" Range, 0-100 Dial Face, .001" Graduations, 3 Contact Points and Adaptor
- Status:
- Active
- A0006160MSDSINDICATOR:
- N
- Orderable Online Today (US Only):
- Yes
- A002040UCC12UPCA:
- 049659506990
- A002050EANUCC13EAN13:
- 0049659506990
- Allow Testimonial:
- Y
- Tariff Code for entry into Mexico:
- Yes
- Top 354:
- N
- Unit Pack Height (in):
- 1.6
- Unit Pack Height (mm):
- 40.64
- Unit Pack Item Qty:
- 1
- Unit Pack Length (in):
- 3.7
- Unit Pack Length (mm):
- 93.98
- Unit Pack Weight (kg):
- 0.0907184
- Unit Pack Weight (lbs):
- 0.2
- Unit Pack Width (in):
- 2.5
- Unit Pack Width (mm):
- 63.5
- UOM:
- Each
- UPC:
- 049659506990
- Use Placeholder Photo:
- N
- US List Price:
- $201.00
- US Next List Price:
- $201.00
- US Web Price:
- $201.00
- Web Catalog-US-EN:
- Y
- Web Price:
- $201.00
- Web Priority-US-EN:
- 22000010
- Electronic or Mechanical:
- Mechanical
- Starrett Model No.:
- 196
- Category L1:
- Indicators & Gages
- Category L2:
- Back Plunger Indicators
- 01 Attribute :
- Range (in)
- 01 Spec:
- .200"
- 02 Attribute:
- Graduations (in)
- 02 Spec:
- .001"
- 03 Attribute:
- Dial Reading
- 03 Spec:
- 0-100
- 04 Attribute:
- Attachments
- 04 Spec:
- Indicator with 3 Contact Points and Adaptor Only
- 05 Attribute:
- Dial Color
- 05 Spec:
- White
- 06 Attribute:
- Case
- 06 Spec:
- None
- 07 Attribute:
- Includes
- 07 Spec:
- Indicator and Accessories
- Dimensional Drawing PDF:
- https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-196B1-Dimensional-Drawing.pdf
- Dimensional Drawing (IMG):
- https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-196B1-Dimensional-Drawing.tif
- Discontinued:
- false
- Catalog URL-US-EN:
- https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Precision-Hand-Tools.pdf
- Current Catalog Page:
- 142
- Catalog Section Page:
- 10
- Catalog:
- https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Precision-Hand-Tools.pdf
- Catalog Section:
- https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Section-05-Dial-and-Electronic-Indicators-and-Gages.pdf
- Western Link Inventory:
- 0
