252Z-14 Height Transfer Gage

252Z-14 Height Transfer Gage

$2,112.00
(No reviews yet) Write a Review
SKU:
252Z-14
UPC:
049659558906
Category:
Precision Measuring Tools > Height Gages > Height Transfer Gages
Cal Prop 65 Chemical:
Lead, Beryllium
Current Catalog:
33
Current Catalog Page:
120
Athol Inventory:
0
Available for Purchase-US-EN:
Y
Flat Stock Inventory:
0
In Sugar Catalog:
Yes
Item Class:
Stand-Alone
Parent SKU As a Regular Field:
252
Product Group Sort:
height_transfer_gages
Webber Inventory:
0
Website-URL:
https://www.starrett.com/details?cat-no=252Z-14
Rocky Mountain Inventory:
0
Show in Web Nav?:
Yes
To Delete:
false
To Remove:
false
Top Seller:
Yes
Total Inventory:
0
US Web Temp Hold:
Off
Global Product Classification:
HEIGHT TRANSFER GAGE, 14"
Item Segmentation:
Catalog
Long Description:
Each
Made in America:
Yes
Manufacturer's code:
049659
NAFTA Producer:
Yes
Item ID:
252Z-14
Type:
Height Transfer Gage
POA Flag:
N
Product made to order status:
MTO
Shelf Pack Item Qty:
1
Shelf Pack Pricing Quantity:
1
A0006160MSDSINDICATOR:
N
A002040UCC12UPCA:
049659558906
A002050EANUCC13EAN13:
0049659558906
Tariff Code for entry into Mexico:
Yes
Top 354:
N
Unit Pack Height (mm):
599.44
Unit Pack Length (mm):
325.12
Unit Pack Weight (kg):
8.618248
Unit Pack Width (mm):
185.42
UOM:
Each
US Web Price:
$2112.00
Web Catalog-US-EN:
Y
Web Price:
$2112.00
Sales Category:
TOOLS.TOOLS (DISCOUNTABLE).
Discontinued:
false
Catalog Section Page:
14
Catalog Section:
https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Section-03-Height-Gages.pdf
Western Link Inventory:
0
Category L1:
Height Gages
Category L2:
Height Transfer Gages
US Promo Price:
$0.00
01 Attribute:
Range (in)
COO Detail:
Made in the USA with US and Global Content
Schedule B Number:
9017.30.8000
Available In Region:
United States|Canada
Mt Airy Inventory:
0
ORS Part Numbers:
681-55890
Country of Origin:
United States
01 Spec:
0-14"
02 Attribute:
Range (mm)
02 Spec:
0-350mm
03 Attribute:
Product Type
03 Spec:
Height Transfer Gage
Cal Prop 65 Statement:
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
Catalog:
https://s3.us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Precision-Hand-Tools.pdf
EAN:
0049659558906
EDP:
55890
Electronic or Mechanical:
Mechanical
Feature 01:
Extreme rigidity provides the vibration proof stability necessary to permit precise, repeat readings with indicators of the highest amplification
Feature 02:
Extremely rigid, rectangular box-type hollow column mounted integrally on a heavy base
Feature 03:
Adjusting mechanism is located in the base so the column and indicator are isolated and not affected by external factors, i.e. heat or hand pressure
Feature 04:
Hand-fitting base design for sure-grip handling and easy movement
Feature 05:
Bottom of the base has three ground and lapped pads for stability and smooth movement on the surface plate
Feature 06:
Adjustable slide, incorporating a snug for holding test indicators or electronic gage heads, has rapid vertical manual adjustment
Feature 07:
Thumb screw allows slide to be locked
Feature 08:
Knob on base allows fine vertical adjustment of the slide unit relative to the fixed column
Feature 09:
A snug on the slide provides two holes (.375" [9.5mm] and .156" [4mm]) for holding gage rods or scribers
Feature 10:
The rod has a major diameter of .375" (9.5mm) and stepped diameters of 1/4" (3.2mm) and 7/32" (5.5mm) at one end and 5/16" (8mm) at the opposite end.
Feature 11:
Starrett 25, 81, 655 and 656 Series Dial Indicators also can be used on the height gage by means of a PT06784-A Gage Rod
Product Photo 01:
https://s3.us-west-2.amazonaws.com/catsy.833/252-14e55890cUSp1.tif
Product Photo 02:
https://s3.us-west-2.amazonaws.com/catsy.833/252cUSa1.tif
Product Title:
252Z-14 Height Transfer Gage
Product Type:
Height Transfer Gage
Range (in):
0-14"
Range (mm):
0-350mm
Short Description:
Height Transfer Gage, 0 - 14"/0 - 350mm Range
SLC Certification:
Optional Add-On
Unit Pack Height (in):
23.6
Unit Pack Item Qty:
1
Unit Pack Length (in):
12.8
Unit Pack Width (in):
7.3
US List Price:
$2112.00
Web Priority-US-EN:
41400005
Unit Pack Weight (lbs):
19
SDS Indicator:
N
Series Title:
252 Height Transfer Gages
Status:
Active
Catalog URL-US-EN:
https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Precision-Hand-Tools.pdf
Cal Prop 65 Warning:
Y
Max. Range (in):
14
Max. Range (mm):
350
Min. Range (in):
0
Min. Range (mm):
0
Main Image:
https://s3.us-west-2.amazonaws.com/catsy.833/252-14e55890cUSp1.tif

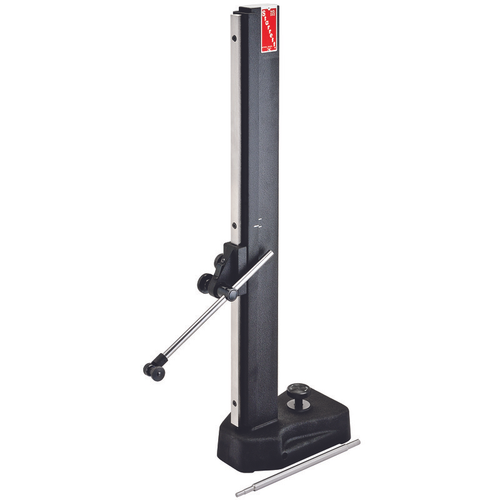

The Starrett 252 Height Transfer Gage is ideal for use with test indicators or electronic amplifiers to accurately transfer height settings from gage blocks, height gages and other standards. 0-14" (350mm) Range.
