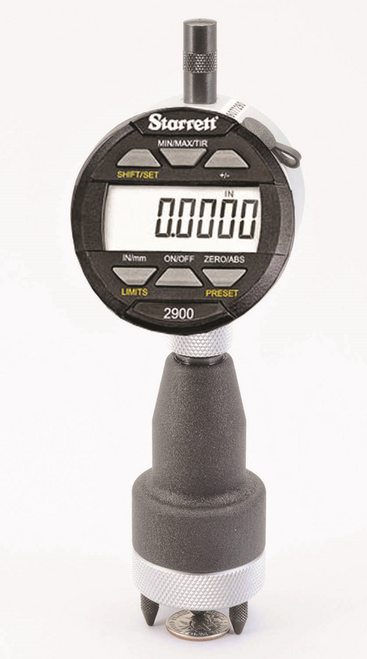

The 2900-5-1R Electronic Indicator Height Gage is used to measure the height (or depth) of rivet and screw heads and the flushness of welds; direct to .0005"... instantly and with great accuracy. Easily maintain Mil Spec riveting standards of + .006"/-.000" base sits solidly on any surface, flat or curved. On curved surfaces, zero is set at a point immediately next to the point to be measured. The contact tip is then slid onto the fastener or weld... thus the effects of curvature are neutralized.
This gage is optimal for measuring rivet and screw heads as well as arc welds in aircraft, missile, aerospace, electronics industries and sheet metal work. Use for set-up and in-process control of rivet head shaving machines. Control staking and rivet height in office machines and other complex mechanisms to prevent shearing and interference. Measure the timing, movement, and pressure correlation of valves, hydraulic valve spools, hydraulic cylinders. Use on embossed, stamped, coined, upset, dimpled, and staked parts.
Provides an independent, unbiased, easily verified flushness measurement... direct in .001" or .0005" increments.
2900-5-1R Rivet Height Gage
$768.00
- SKU:
- 2900-5-1R
- UPC:
- 049659733150
- Product made to order status:
- MTO
- Product Title:
- 2900-5-1R Rivet Height Gage
- Published Locations:
- Catalog 33
- Range (in):
- 0.25"
- Series Title:
- Electronic Indicators
- Short Description:
- Rivet Height Gage - With Electronic Indicator, IP67 Protection, SPC Output, 1"/25mm Range, .0005"/0.01mm Resolutions and 683-3 Body
- Status:
- Active
- YouTube Video Code 01-US-EN:
- Xo9npwHIzko
- Substitute:
- 25-242JR
- Top 354:
- N
- Unit Pack Height (in):
- 2.1
- Unit Pack Invoiced:
- N
- Unit Pack Length (in):
- 6
- Unit Pack Shippable:
- N
- Unit Pack Weight (lbs):
- 0.65
- Unit Pack Width (in):
- 3.4
- UOM:
- Each
- UPC:
- 049659733150
- Use Placeholder Photo:
- N
- US List Price:
- $768.00
- US Web Price:
- $768.00
- Web Catalog-ES-ES:
- Y
- Web Catalog-US-EN:
- Y
- Web Priority-ES-ES:
- 2200
- Web Priority-US-EN:
- 22800210
- A002040UCC12UPCA:
- 049659733150
- A002050EANUCC13EAN13:
- 0049659733150
- Catalog:
- https://s3-us-west-2.amazonaws.com/catsy.833/Starrett+Catalog+33+Precision+Hand+Tools.pdf
- Catalog URL-US-EN:
- https://s3-us-west-2.amazonaws.com/catsy.833/Starrett+Band+Saw+Blades+Catalog+60.pdf
- Category:
- Precision Measuring Tools > Precision Hand Tools > Indicators & Gages > Electronic Indicators
- Cal Prop 65 Chemical:
- Lead
- Cal Prop 65 Warning:
- Y
- Cal Prop 65 Statement:
- WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
- Country of Origin :
- United States
- Current Catalog:
- xx
- Current Catalog Page:
- xx
- EAN:
- 0049659733150
- EDP:
- 73315
- Effective List Date:
- 2022-12-31
- Effective Web Date:
- 2022-07-01
- Assembled in US:
- N
- Athol Inventory:
- 0
- Available for Purchase-US-EN:
- Y
- Available In Region :
- United States|Canada
- Brochure URL-US-EN:
- https://www.starrett.com/vdoc/Catalog 33 - Section 5 - Dial and Electronic Indicators and Gages
- CAN List Price:
- CA$971.00
- CAN Price List Name:
- 133W - 2021
- CAN Web Price:
- CA$806.25
- Combined Dollar Sales:
- 32325.08
- Combined Unit Sales :
- 78
- Description:
- 2900-5-1R Electronic Indicator Height Gage is used to check sheet metal rivets
- In Sugar Catalog:
- Yes
- Item Class:
- Stand-Alone
- Product Group Sort:
- icc110504
- Website-URL:
- https://www.starrett.com/details?cat-no=2900-5-1R
- Show in Web Nav?:
- Yes
- Top Seller:
- Yes
- Total Inventory:
- 0
- Unit Sales 2020:
- 19
- Unit Sales 2021:
- 38
- Unit Sales 2022:
- 21
- US Web Temp Hold:
- Off
- Feature Set:
- Standard
- Max. Range (in):
- .250"
- Max. Range (mm):
- 6.35
- Min. Range (in):
- 0
- Min. Range (mm):
- 0
- Range (mm):
- 6.35mm
- Resolution (in):
- .0005"
- Resolution (mm):
- 0.01mm
- SPC Output:
- Yes
- Accuracy (in):
- +/- .001"
- Accuracy (mm):
- +/- 0.03mm
- Web Price:
- $768.00
- Type:
- Indicator - Rivet Gage
- ICC:
- 110504 Electronic Indicators
- Item Segmentation:
- Catalog
- Long Description:
- RIVET HEIGHT GAGE - 2900-5-1R W/683-3 BODY
- Made in America:
- Yes
- Manufacturer's code:
- 049659
- Name:
- RIVET HEIGHT GAGE - 2900-5-1R W/683-3 BODY
- Item ID:
- 2900-5-1R
- Electronic or Mechanical:
- Electronic
- Category L1:
- Indicators & Gages
- Category L2:
- Electronic Indicators
- Flat Stock Inventory:
- 0
- Mt Airy Inventory :
- 0
- Rocky Mountain Inventory:
- 0
- Starrett Model No.:
- 2900
- US Next List Price:
- $768.00
- IBC Category 1:
- Testing, Measuring and Inspection
- IBC Category 2:
- Dimensional Measurement Tools
- IBC Category 3:
- Electronic Digital Indicators
- Main Image:
- https://s3-us-west-2.amazonaws.com/catsy.833/2900-5-1R.tif
- Product Photo 01:
- https://s3-us-west-2.amazonaws.com/catsy.833/2900-5-1R.tif
- SLC Certification:
- Optional Add-On
- User Manual URL-US-EN:
- https://www.starrett.com/UM-2900-CAP
- To Delete:
- false
- To Remove:
- false
- Dollar Sales 2023:
- $16073.61
- Unit Sales 2023:
- 33
- Webber Inventory:
- 0
- Minimum Order Quantity:
- 0
- Discontinued:
- false
- 01 Attribute :
- Range (in)
- 01 Spec:
- 0.25"
- 02 Attribute:
- Range (mm)
- 02 Spec:
- 6.35mm
- 03 Attribute:
- Resolution (in)
- 03 Spec:
- .0005"
- 04 Attribute:
- Resolution (mm)
- 04 Spec:
- 0.01mm
- 05 Attribute:
- Accuracy (in)
- 05 Spec:
- ±.001"
- 06 Attribute:
- Accuracy (mm)
- 06 Spec:
- ±0.03mm
- 07 Attribute:
- Feature Set
- 07 Spec:
- 0
- 08 Attribute:
- SPC Output
- 08 Spec:
- Yes
- 09 Attribute:
- SLC Certification
- 09 Spec:
- Optional Add-On
