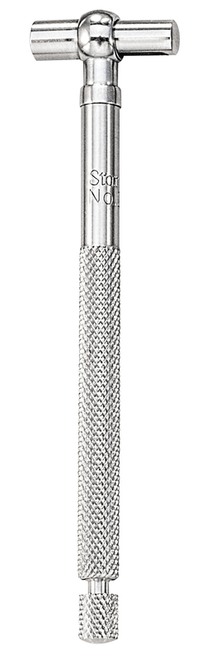

The Starrett 579 Telescoping Gage is used for determining the true size of holes, slots, and recesses up to 6" (150mm). The ends of both contacts are hardened and ground to a radius to allow proper clearance on the smallest hole the gage will enter. The tool must be slightly rocked in the hole being measured to ensure that the tool is on the proper diameter before it is locked and withdrawn. The final hole size is obtained by measuring over the gage contacts with a micrometer. 3/4-1 1/4" (19-32mm) Range, 2 3/8" (60mm) Handle.
579C Telescoping Gage
$55.00
- SKU:
- 579C
- UPC:
- 049659526127
- PMRA Regulated:
- N
- POA Flag:
- N
- Product Photo 01:
- https://s3-us-west-2.amazonaws.com/catsy.833/579CcUSp1.tif
- Product Title:
- 579C Telescoping Gage
- Range (in):
- 3/4 - 1-1/4"
- Range (mm):
- 19-32mm
- Refrigerant Indicator:
- N
- RoHS (EU):
- N
- SDS Indicator:
- N
- Series Title:
- 579 Telescoping Gages and Sets, Self-Centering with Two Telescoping Arms
- Shelf Pack Invoiced:
- N
- Shelf Pack Item Qty:
- 1
- Shelf Pack Pricing Quantity:
- 1
- Shelf Pack Shippable:
- N
- Short Description:
- Telescoping Gage, 3/4 - 1-1/4"/19-32mm Range, 2-3/8"/60mm Handle Length, Self-Centering
- Status:
- Active
- Subject to Environmental Change:
- N
- Temperature Sensitive:
- N
- Unit Pack Height (in):
- 0.5
- Unit Pack Height (mm):
- 15.24
- Unit Pack Invoiced:
- N
- Unit Pack Item Qty:
- 1
- Unit Pack Length (in):
- 3.5
- Unit Pack Length (mm):
- 88.9
- Unit Pack Shippable:
- N
- Unit Pack Weight (kg):
- 0.0453592
- Unit Pack Weight (lbs):
- 0.1
- Unit Pack Width (in):
- 2
- Unit Pack Width (mm):
- 50.8
- UOM:
- Each
- UPC:
- 049659526127
- Use Placeholder Photo:
- N
- US List Price:
- $55.00
- Variable Unit:
- N
- Web Catalog-US-EN:
- Y
- Web Priority-US-EN:
- 35600025
- A0006160MSDSINDICATOR:
- N
- A000670ROHASCOMPLIANT:
- N
- A002040UCC12UPCA:
- 049659526127
- A002050EANUCC13EAN13:
- 0049659526127
- Category:
- Precision Measuring Tools > Precision Hand Tools > Hole Gages > Telescoping Gages
- Cal Prop 65 Chemical:
- Lead
- Cal Prop 65 Warning:
- Y
- Cal Prop 65 Statement:
- WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
- Conflict Minerals:
- N
- Contaminated if Opened:
- N
- Country of Origin :
- United States
- EAN:
- 0049659526127
- EDP:
- 52612
- Effective List Date:
- 2022-12-31
- Exists in Comport:
- N
- Feature 01:
- Precision Ground Radius on each gage provides two-point contact for maximum accuracy
- Feature 02:
- Greater range
- Feature 03:
- Constant spring tension gives uniform contact pressure
- Feature 04:
- Both plungers are easily locked at any desired setting
- Feature 05:
- Handles can be individually ordered. Handles longer than 12" (300mm) are available on special order.
- Feature 06:
- Handles are rigidly attached to the contact plungers and are automatically self-centering
- Feature 07:
- Ends of both contacts are hardened and ground to a radius to allow proper clearance on the smallest hole the gage will enter
- Feature 08:
- Two telescoping contacts
- Combined Dollar Sales:
- 32288.47
- Combined Unit Sales :
- 1139
- Description:
- TELESCOPING GAGE, 3/4-1-1/4"
- Item Class:
- Stand-Alone
- Max. Range (in):
- 1/4"
- Max. Range (mm):
- 32mm
- Min. Range (in):
- 3/4"
- Min. Range (mm):
- 19mm
- Parent SKU As a Regular Field:
- 579
- Product Group Sort:
- icc111401
- Show in Web Nav?:
- Yes
- Total Inventory:
- 0
- Unit Sales 2020:
- 246
- Unit Sales 2021:
- 450
- Unit Sales 2022:
- 443
- US Web Temp Hold:
- Off
- US Web Price:
- $55.00
- Web Price:
- $55.00
- CAN List Price:
- CA$69.00
- Available for Purchase-US-EN:
- Y
- Top 354:
- N
- US Price List Name:
- 133W
- Fragile:
- N
- French Language Included:
- N
- Handle Length (in):
- 2-3/8"
- Handle Length (mm):
- 60mm
- Hazmat Indicator:
- N
- ICC:
- 111402 Telescoping Gages
- Item Discount Code:
- A
- Item Primary Ship Lead Time:
- 3
- Item Segmentation:
- Catalog
- Main Image:
- https://s3-us-west-2.amazonaws.com/catsy.833/579CcUSp1.tif
- Manufacturer's code:
- 049659
- Marked Recyclable:
- N
- Marked Returnable:
- N
- Master Pack Invoiced:
- N
- Master Pack Shippable:
- N
- NAFTA Producer:
- Yes
- Name:
- TELESCOPING GAGE, 3/4-1-1/4"
- Item ID:
- 579C
- Electronic or Mechanical:
- Mechanical
- Athol Inventory:
- 0
- Flat Stock Inventory:
- 0
- Mt Airy Inventory :
- 0
- Rocky Mountain Inventory:
- 0
- US Next List Price:
- $55.00
- IBC Category 1:
- Testing, Measuring and Inspection
- IBC Category 2:
- Inside Diameter Measurement Equipment
- IBC Category 3:
- Telescoping Gages and Sets
- Dimensional Drawing PDF:
- https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-579C-Dimensional-Drawing.pdf
- Dimensional Drawing (IMG):
- https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-579C-Dimensional-Drawing.tif
- Product Photo 02:
- https://s3-us-west-2.amazonaws.com/catsy.833/579cUSa1.tif
- Website-URL:
- https://www.starrett.com/details?cat-no=579C
- To Delete:
- false
- To Remove:
- false
- Made in America:
- Yes
- Dollar Sales 2023:
- $11322.74
- Unit Sales 2023:
- 348
- Starrett Model No.:
- 579
- Webber Inventory:
- 0
- Minimum Order Quantity:
- 0
- Discontinued:
- false
- 01 Attribute :
- Range (in)
- 01 Spec:
- 3/4 - 1-1/4"
- 02 Attribute:
- Range (mm)
- 02 Spec:
- 19-32mm
- 03 Attribute:
- Handle Length (in)
- 03 Spec:
- 2-3/8"
- 04 Attribute:
- Handle Length (mm)
- 04 Spec:
- 60mm
- Available In Region :
- United States|Canada
