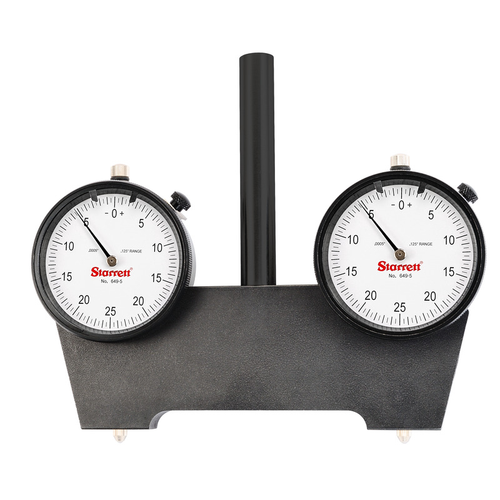

649-1 Spindle Square

649-1 Spindle Square

$315.00
(No reviews yet) Write a Review
SKU:
649-1
UPC:
049659520804
Category:
Precision Measuring Tools > Precision Hand Tools > Indicators & Gages > Spindle Square Gages
Dial Reading:
0-50-0
EAN:
0049659520804
EDP:
52080
Feature 01:
Fully assembled with two AGD Group 2 dial indicators
Feature 02:
Patented design
Feature 03:
Solid steel body construction with durable black oxide finish
Feature 04:
Ground gaging surface
Feature 05:
Approximately 4 lbs with custom case
Feature 06:
3/8" inch shank diameter
Feature 07:
4" (100mm) between contact points
Feature 08:
Approximately 6-3/4" (172mm) wide and 5-1/2" (140mm) from the top of shank to the end of the contact points
Athol Inventory:
21
Available for Purchase-US-EN:
Y
Flat Stock Inventory:
0
Item Class:
Stand-Alone
Max. Range (in):
0.25
Min. Range (in):
0
Parent SKU As a Regular Field:
649
Product Group Sort:
icc110507_spindle_square_gages
Webber Inventory:
0
Website-URL:
https://www.starrett.com/details?cat-no=649-1
Rocky Mountain Inventory:
0
Show in Web Nav?:
Yes
To Delete:
false
To Remove:
false
Total Inventory:
21
US Web Temp Hold:
Off
Finish:
Black Oxide
Global Product Classification:
SPINDLE SQUARE, .250" RANGE, .001" GRAD
Graduations (in):
.001"
Item Segmentation:
Catalog
Long Description:
Each
Made in America:
Yes
Main Image:
https://s3-us-west-2.amazonaws.com/catsy.833/649-1cUSp1.tif
Manufacturer's code:
049659
Material of Construction:
.
NAFTA Producer:
Yes
Item ID:
649-1
Product Photo 01:
https://s3-us-west-2.amazonaws.com/catsy.833/649-1cUSp1.tif
Product Title:
649-1 Spindle Square
Range (in):
0 - .250"
Series Title:
649 Spindle Squares
Shank Size (in):
3/8
Short Description:
Spindle Square, 0-.250", .001", 0-50-0
Special Function Dial Gage Type:
Spindle Square
Status:
Active
A002040UCC12UPCA:
049659520804
A002050EANUCC13EAN13:
0049659520804
Tariff Code for entry into Mexico:
Yes
Top 354:
N
Unit Pack Height (in):
2.3
Unit Pack Item Qty:
1
Unit Pack Length (in):
8.2
Unit Pack Weight (lbs):
3.05
Unit Pack Width (in):
8
UOM:
Each
Use Placeholder Photo:
N
User Manual URL-US-EN:
https://www.starrett.com/um-649
US List Price:
$315.00
US Web Price:
$315.00
Web Catalog-US-EN:
Y
Web Price:
$315.00
Web Priority-US-EN:
26800005
Electronic or Mechanical:
Mechanical
01 Spec:
0 - .250"
02 Attribute:
Graduations (in)
02 Spec:
.001"
03 Attribute:
Dial Reading
03 Spec:
0-50-0
Discontinued:
false
Catalog URL-US-EN:
https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Precision-Hand-Tools.pdf
Current Catalog Page:
188
Catalog Section Page:
56
Catalog:
https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Precision-Hand-Tools.pdf
Catalog Section:
https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Section-05-Dial-and-Electronic-Indicators-and-Gages.pdf
Western Link Inventory:
0
Category L1:
Indicators & Gages
Category L2:
Spindle Square Gages
04 Attribute:
Material
04 Spec:
Solid steel body
Current Catalog:
33
US Promo Price:
$0.00
01 Attribute:
Range (in)
material:
Solid steel body
COO Detail:
Made in the USA with US and Global Content
Schedule B Number:
9017.30.8000
Product made to order status:
MTO
Available In Region:
United States|Canada
Mt Airy Inventory:
0
Orderable Online Today (US Only):
Yes
Product Type:
Spindle Square
Country of Origin:
United States
Adding to cart… The item has been added
The Starrett 649 Series Spindle Square offers accuracy, convenience and significant time saving with the common shop task of tramming the head of a vertical milling machine. This must be done regularly to ensure squarness and perpendicularity between the spindle and work surface. The spindle square is easier to use and more precise than the traditional method of tramming with a dial test indicator. .001" Grad, 0-50-0 Dial; .250" Range.
