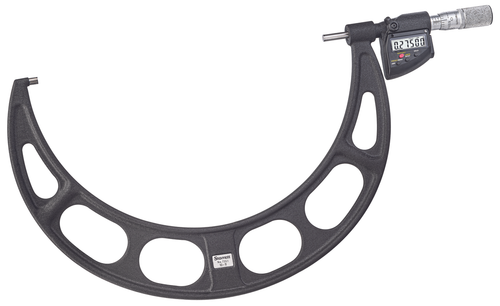

733.1XFLZ-23 Electronic Micrometer

733.1XFLZ-23 Electronic Micrometer

$1,307.00
(No reviews yet) Write a Review
SKU:
733.1XFLZ-23
UPC:
049659726343
Category:
Precision Measuring Tools > Precision Hand Tools > Micrometers > Electronic Outside Micrometers
Cal Prop 65 Chemical:
Lead
Current Catalog Page:
3
Athol Inventory:
0
Available for Purchase-US-EN:
Y
Flat Stock Inventory:
0
In Sugar Catalog:
Yes
Item Class:
Stand-Alone
Parent SKU As a Regular Field:
733.1
Product Group Sort:
pim_icc_num_110102
Webber Inventory:
0
Website-URL:
https://www.starrett.com/details?cat-no=733.1XFLZ-23
Rocky Mountain Inventory:
0
Show in Web Nav?:
Yes
To Delete:
false
To Remove:
false
Total Inventory:
0
US Web Temp Hold:
Off
Global Product Classification:
ELECTRONIC MICROMETER 23"
Item Segmentation:
Catalog
Long Description:
Each
Made in America:
Yes
Main Image:
https://s3.us-west-2.amazonaws.com/catsy.833/733.1XFLZ-11e72536cUSp1.tif
Manufacturer's code:
049659
Item ID:
733.1XFLZ-23
Type:
Micrometer - Outside
Placeholder Photo:
https://s3-us-west-2.amazonaws.com/catsy.833/733.1XFLZ-11e72536cUSp1.tif
Product made to order status:
MTO
Resolution (in):
.00005"
Resolution (mm):
0.001mm
A002040UCC12UPCA:
049659726343
A002050EANUCC13EAN13:
0049659726343
Top 354:
N
UOM:
Each
Use Placeholder Photo:
Y
US Web Price:
$1307.00
Web Catalog-US-EN:
Y
Web Price:
$1307.00
Starrett Model No.:
733.1
Sales Category:
TOOLS.HARDWARE TOOLS (NON-DISCOUNTABLE).
Discontinued:
false
Current Catalog:
33 Add
Catalog Section Page:
add
Western Link Inventory:
0
Category L1:
Micrometers
Category L2:
Electronic Outside Micrometers
US Promo Price:
$0.00
01 Attribute:
Micrometer Type
Whitepaper 1:
https://s3-us-west-2.amazonaws.com/catsy.833/Data-Collection-in-Manufacturing.pdf
Battery Type:
Rechargeable
COO Detail:
Made in the USA with US and Global Content
Schedule B Number:
9017.30.4000
Output:
Cabled Only
Available In Region:
United States|Canada
Mt Airy Inventory:
0
ORS Part Numbers:
681-72634
Country of Origin:
United States
01 Spec:
Outside
02 Attribute:
Range (in)
02 Spec:
22-23"
03 Attribute:
Range (mm)
03 Spec:
559-584mm
04 Attribute:
Resolution (in)
04 Spec:
.00005"
05 Attribute:
Resolution (mm)
05 Spec:
0.001mm
06 Attribute:
Accuracy (in)
06 Spec:
+/- .0003"
07 Attribute:
Accuracy (mm)
07 Spec:
+/- .008mm
08 Attribute:
Output
08 Spec:
Cabled Only
09 Attribute:
Anvil Type
09 Spec:
Flat
10 Attribute:
Anvil Type
10 Spec:
Flat
11 Attribute:
Spindle Type
11 Spec:
Flat
12 Attribute:
Anvil/Spindle Material
12 Spec:
Carbide
13 Attribute:
Lock Nut Type
13 Spec:
Lever
14 Attribute:
Thimble Type
14 Spec:
Friction
15 Attribute:
Mechanical Graduations
15 Spec:
English
16 Attribute:
Display Type
16 Spec:
LCD
17 Attribute:
Power supply
17 Spec:
USB/AC (power cable included)|Battery
18 Attribute:
Battery Type
18 Spec:
Rechargeable
19 Attribute:
Case Type
19 Spec:
Wood
Accuracy (in):
+/- .0003"
Accuracy (mm):
+/-.008mm
Anvil Type:
Flat
Brochure 1:
https://s3.us-west-2.amazonaws.com/catsy.833/starrett-electronic-precision-hand-tools-bulletin-590.pdf
Cal Prop 65 Statement:
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
Case Study:
https://s3.us-west-2.amazonaws.com/catsy.833/Data-Collection-at-Roush-Yates.pdf
EAN:
0049659726343
EDP:
72634
Electronic or Mechanical:
Electronic
Feature 01:
Starrett no-glare satin chrome finish on thimble and sleeve
Feature 02:
Micro-lapped carbide measuring faces
Feature 03:
Large, easy-to-read .275 (7mm) high contrast LCD digital readout
Feature 04:
Balanced and tapered frame
Feature 05:
Extremely hard and stable one-piece spindle
Feature 06:
Auto Off after 20 minutes of nonuse
Feature 07:
Inch/millimeter conversion on English versions
Feature 08:
Smooth friction thimble for uniform pressure
Feature 09:
Measurement HOLD button
Feature 10:
Zero at any position
Feature 11:
Retain and return to true zero reading
Feature 12:
Spindle lock
Feature 13:
Data Output
Feature 14:
Resolution: .00005" (0.001mm)
Feature 15:
Accuracy +/-.0001 (=+/-.002mm)
Feature 16:
PRESET button to install any reading at any position
Feature 17:
Ability to install minimum and maximum limits
Lock Nut Type:
Lever
Micrometer Type:
Outside
Product Photo 01:
https://s3.us-west-2.amazonaws.com/catsy.833/733.1+Group.tif
Product Photo 02:
https://s3.us-west-2.amazonaws.com/catsy.833/733.1XFLZ-11e72536cUSp1.tif
Product Title:
733.1XFLZ-23 Electronic Micrometer
Product Type:
Micrometer
Range (in):
22-23"
Range (mm):
559-584mm
SDS Sheet:
https://s3.us-west-2.amazonaws.com/catsy.833/SDS-Renata-CR2032-ASDS.pdf
Short Description:
LCD Outside Micrometer, Friction Thimble, Carbide Anvil, SPC Output, .0001", 22-23" Range
Thimble Graduations:
English
Thimble Type:
Friction
Unit Pack Height (in):
35.5
Unit Pack Length (in):
21
Unit Pack Width (in):
3.5
US List Price:
$1307.00
Web Priority-US-EN:
12200235
Unit Pack Weight (lbs):
20
User Manual URL-US-EN:
https://www.starrett.com/um-733.1
Series Title:

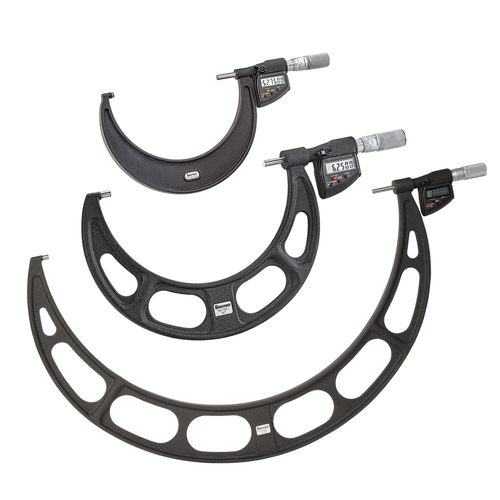

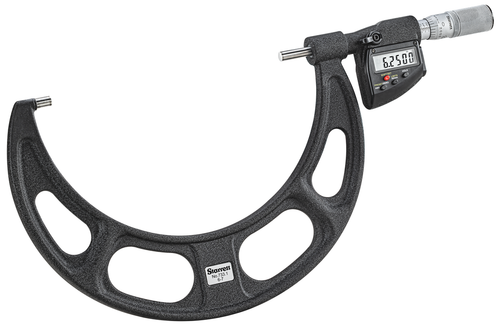

733.1 Electronic Digital Micrometers
Status:
Active
Cal Prop 65 Warning:
Y
Case Type:
Wood
Display Type:
LCD
Max. Range (in):
23
Max. Range (mm):
584
Min. Range (in):
22
Min. Range (mm):
559
Spindle Type:
Flat
Anvil/Spindle Material:
Carbide
The Starrett 733.1 Electronic Micrometer with Output is a full-featured precision measuring tool built with customary Starrett quality and workmanship. It includes output capability for data transmission. The 733.1 series includes a large, easy-to-read, high-contrast LCD digital readout for clear readings. With its automatic OFF functionality, smooth friction thimble for uniform pressure, and balanced frame design, Starrett products provide comfortable and accurate measuring. Its no-glare satin chrome finish minimizes annoying surface glare under bright lights indoors. Starrett electronic micrometers guarantee a precise measurement at every position each and every time.
