The Starrett 749.1 Electronic Depth Micrometer has a wide 0-12" (0-300mm) range for measuring the depth of most holes, slots, shoulders and projections. Ships in a protective case. [Discontinued 10/2022]

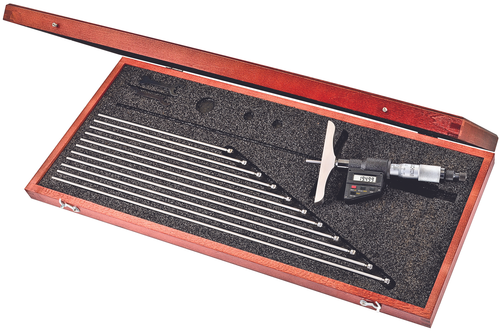

749.1MEBZ-300 Electronic Micrometer Depth Gage
$956.00
- SKU:
- 749.1MEBZ-300
- UPC:
- 049659727821
- Dimensional Drawing PDF:
- https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-749.1MEBZ-300-Dimensional-Drawing.pdf
- Dimensional Drawing (IMG):
- https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-749.1MEBZ-300-Dimensional-Drawing.tif
- Discontinued:
- false
- 01 Spec:
- Depth
- 01 Attribute:
- Micrometer Type
- 02 Attribute:
- Electronic or Mechanical
- 02 Spec:
- Electronic
- 03 Attribute:
- Range (mm)
- 03 Spec:
- 0-300mm
- 04 Attribute:
- Range (in)
- 04 Spec:
- 0-12"
- 05 Attribute:
- Resolution (mm)
- 05 Spec:
- 0.001mm
- 06 Attribute:
- Resolution (in)
- 06 Spec:
- .00005"
- 07 Attribute:
- Accuracy (mm)
- 07 Spec:
- +/- 0.002mm
- 08 Attribute:
- Accuracy (in)
- 08 Spec:
- +/- .0001"
- 09 Attribute:
- Lock Nut Type
- 09 Spec:
- Lever
- 10 Attribute:
- Base Length (mm)
- 10 Spec:
- 100mm
- 11 Attribute:
- Base Length (in)
- 11 Spec:
- 4"
- 12 Attribute:
- Measuring Rods (qty)
- 12 Spec:
- 12
- 13 Attribute:
- Rod Diameter (mm)
- 13 Spec:
- 4mm
- 14 Attribute:
- Rod Diameter (in)
- 14 Spec:
- 5/32"
- 15 Attribute:
- Mechanical Graduations
- 15 Spec:
- .50mm
- 16 Attribute:
- Thimble Type
- 16 Spec:
- Ratchet
- 17 Attribute:
- Power supply
- 17 Spec:
- Battery
- 18 Attribute:
- Battery Type
- 18 Spec:
- CR2032 lithium Battery (Qty 1), Included
- 19 Attribute:
- Case Type
- 19 Spec:
- Padded Case
- A002040UCC12UPCA:
- 049659727821
- A002050EANUCC13EAN13:
- 0049659727821
- Accuracy (in):
- Mic head +/- .0001"; Rods +/- .0002"
- Accuracy (mm):
- Mic head +/-.003mm; Rods +/-.005mm
- Available for Purchase-US-EN:
- N
- Base Length (in):
- 4"
- Base Length (mm):
- 100mm
- Brochure 1:
- https://s3-us-west-2.amazonaws.com/catsy.833/starrett-electronic-precision-hand-tools-bulletin-590.pdf
- Cal Prop 65 Statement:
- WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
- Category:
- Closeouts
- Category L1:
- Micrometers
- Category L2:
- Depth Micrometers
- EAN:
- 0049659727821
- EDP:
- 72782
- Electronic or Mechanical:
- Electronic
- Feature 01:
- Starrett no-glare satin chrome finish on thimble and sleeve
- Feature 02:
- Large, easy-to-read .275 (7mm) high contrast LCD digital readout
- Feature 03:
- Extremely hard and stable one-piece spindle
- Feature 04:
- Auto Off after 20 minutes of nonuse
- Feature 05:
- Inch/millimeter conversion on English versions
- Feature 06:
- Measurement HOLD button
- Feature 07:
- Zero at any position
- Feature 08:
- Retain and return to true zero reading
- Feature 09:
- Spindle lock
- Feature 10:
- Data Output
- Feature 11:
- Resolution: .00005" (0.001mm)
- Feature 12:
- Accuracy +/-.0001 (+/-.002mm)
- Feature 13:
- PRESET button to install any reading at any position
- Feature 14:
- Ability to install minimum and maximum limits
- Feature 15:
- Base Length 4"/rod diameter 5/32"
- Item Segmentation:
- Catalog
- Lock Nut Type:
- Lever
- Micrometer Type:
- Depth
- Item ID:
- 749.1MEBZ-300
- Product Photo 01:
- https://s3-us-west-2.amazonaws.com/catsy.833/749MEBZ-300cUSp1.tif
- Product Title:
- 749.1MEBZ-300 Electronic Micrometer Depth Gage
- Range (in):
- 0-12"
- Range (mm):
- 0-300mm
- Resolution (in):
- .00005"
- Resolution (mm):
- 0.001mm
- SDS Sheet:
- https://s3-us-west-2.amazonaws.com/catsy.833/SDS-Renata-CR2032-ASDS.pdf
- Short Description:
- Electronic Digital Micrometer Depth Gage, Ratchet Thimble, 0-300mm Range, Resolution: .00005" (0.001mm)
- Show in Web Nav?:
- Yes
- SLC Certification:
- Optional Add-On
- Starrett Model No.:
- 749.1

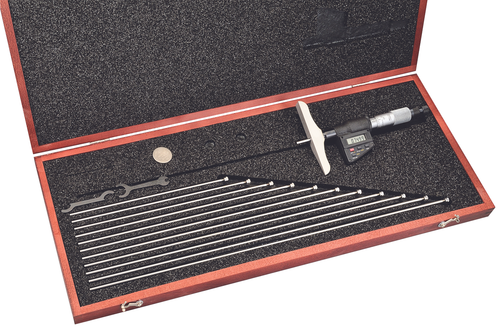

- Superseded By:
- 749.1BZ-12RL
- Thimble Graduations:
- Metric
- Thimble Type:
- Ratchet
- Unit Pack Height (in):
- 1.7
- Unit Pack Length (in):
- 21.2
- Unit Pack Width (in):
- 9.7
- UOM:
- Each
- US List Price:
- $956.00
- US Promo Price:
- $0.00
- US Web Price:
- $956.00
- Web Catalog-US-EN:
- Y
- Web Priority-US-EN:
- 99999999
- Unit Pack Weight (lbs):
- 4.15
- Series Title:
- 749.1 Electronic Digital Micrometer Depth Gages
- Status:
- GOING DISC
- Global Product Classification:
- ELECTRONIC DEPTH MICROMETER 300mm
- Manufacturer's code:
- 049659
- Output:
- None
- Athol Inventory:
- 27
- Available In Region:
- United States|Canada
- Battery Type:
- CR2032 lithium Battery (Qty 1), Included
- Brochure URL-US-EN:
- https://www.starrett.com/vdoc/Starrett Electronic Precision Hand Tools (Bulletin 590)
- Cal Prop 65 Chemical:
- Lead
- Cal Prop 65 Warning:
- Y
- Case Type:
- Padded Case
- Depth Micrometer Type:
- Electronic
- Flat Stock Inventory:
- 0
- In Sugar Catalog:
- Yes
- Item Class:
- Stand-Alone
- Max. Range (in):
- 12
- Max. Range (mm):
- 300
- Min. Range (in):
- 0
- Min. Range (mm):
- 0
- Mt Airy Inventory:
- 0
- Product Group Sort:
- closeouts
- Rocky Mountain Inventory:
- 0
- To Delete:
- false
- To Remove:
- false
- Total Inventory:
- 27
- US Web Temp Hold:
- Off
- Webber Inventory:
- 0
- Website-URL:
- https://www.starrett.com/metrology/product-detail/749.1MEBZ-300
- Western Link Inventory:
- 0
- Long Description:
- ECO-19808
- Main Image:
- https://s3-us-west-2.amazonaws.com/catsy.833/749MEBZ-300cUSp1.tif
- Measuring Rods (qty):
- 12
- Next Catalog:
- No
- Product made to order status:
- MTA
- Rod Diameter (in):
- 5/32"
- Rod Diameter (mm):
- 4mm
- Schedule B Number:
- 9017.30.4000
- Sales Category:
- TOOLS.HARDWARE TOOLS (NON-DISCOUNTABLE).
- Top 354:
- N
- Use Placeholder Photo:
- Y
- Web Price:
- $956.00
- Country of Origin:
- China
