The Starrett AccuBore is a high-quality, trigger-activated, three-point contact bore gaging system with extended range and Blue tooth Data Output. Its convenient single-hand operation provides speed and control. It also features an easy-to-read digital display as well as mechanically-driven parallel anvils which extend simultaneously, establishing a more true alignment to the axis of the bore, providing consistent pressure and more accurate readings as opposed to models with spring-driven contacts. The gage also features a display with integrated LEDs tolerances that quickly indicate whether a bore measurement is within a preset tolerance window. Pistol Grip w/Ind, 4-8" (100-200mm) Range.

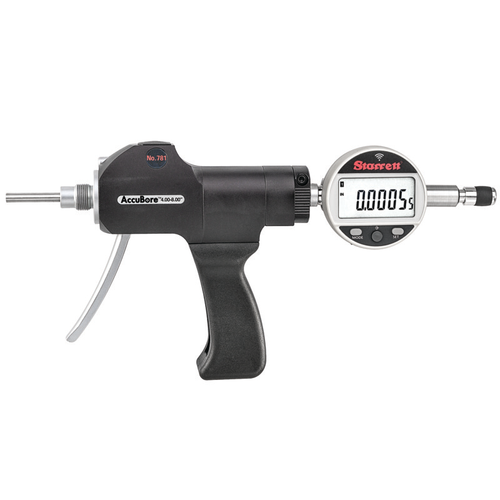

781BXTP-12 Pistol Grip Gage Only with Indicator
$2,774.00
- SKU:
- 781BXTP-12
- UPC:
- 049659730227
- Category:
- Precision Measuring Tools > Precision Hand Tools > Bore Gages > Electronic Pistol Grip Bore Gages
- Cal Prop 65 Chemical:
- Lead
- Cal Prop 65 Warning:
- Y
- Cal Prop 65 Statement:
- WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
- Country of Origin :
- United Kingdom
- EAN:
- 0049659730227
- EDP:
- 73022
- Effective List Date:
- 2022-12-31
- Feature 01:
- Pistol Grip Gage Only With Indicator
- Feature 02:
- Does Not Include Measuring Heads or Rings
- Feature 03:
- Single-hand operation with right- and left-hand viewing flexibility
- Feature 04:
- Large, easy-to-read digital display with integrated LEDs tolerances
- Feature 05:
- True alignment with mechanically-driven parallel anvils
- Feature 06:
- Push button inch/metric conversion
- Feature 07:
- Preset and preset recall
- Feature 08:
- Hold, max/min and zeroing capabilities
- Feature 09:
- Blind bore measurement is standard from .50" (12.7mm) and above
- Feature 10:
- Bluetooth Output capability for Statistical Process Control (SPC) analysis
- Assembled in US:
- N
- Athol Inventory:
- 0
- Available for Purchase-US-EN:
- Y
- Brochure 2:
- https://s3-us-west-2.amazonaws.com/catsy.833/starrett-electronic-precision-hand-tools-bulletin-590.pdf
- CAN List Price:
- CA$3512.00
- Combined Dollar Sales:
- 14436.38
- Combined Unit Sales :
- 9
- Description:
- ELECT PISTOL WITH INDICATOR 4"- 8" RANGE
- Dollar Sales 2023:
- $9316.52
- Unit Sales 2023:
- 5
- Flat Stock Inventory:
- 0
- Item Class:
- Stand-Alone
- Max. Range (in):
- 8
- Max. Range (mm):
- 200
- Min. Range (in):
- 4
- Min. Range (mm):
- 100
- Mt Airy Inventory :
- 0
- Parent SKU As a Regular Field:
- 781BXT
- Product Group Sort:
- icc110601
- Webber Inventory:
- 0
- Website-URL:
- https://www.starrett.com/details?cat-no=781BXTP-12
- Rocky Mountain Inventory:
- 0
- Show in Web Nav?:
- Yes
- To Delete:
- false
- To Remove:
- false
- Total Inventory:
- 0
- Unit Sales 2020:
- 4
- Unit Sales 2021:
- 4
- Unit Sales 2022:
- 1
- US Price List Name:
- 133W
- US Web Temp Hold:
- Off
- IBC Category 1:
- Testing, Measuring and Inspection
- IBC Category 2:
- Inside Diameter Measurement Equipment
- IBC Category 3:
- Electronic Bore Gages
- ICC:
- 110601 Electronic Pistol Grip
- Item Segmentation:
- Catalog
- Main Image:
- https://s3-us-west-2.amazonaws.com/catsy.833/781BXTP-12cUSp1.tif
- Manufacturer's code:
- 049659
- Minimum Order Quantity:
- 0
- Name:
- ELECT PISTOL WITH INDICATOR 4"- 8" RANGE
- Item ID:
- 781BXTP-12
- Product Photo 01:
- https://s3-us-west-2.amazonaws.com/catsy.833/781BXTP-12cUSp1.tif
- Product Photo 02:
- https://s3-us-west-2.amazonaws.com/catsy.833/781BXTP-12cUSz1.tif
- Product Title:
- 781BXTP-12 Pistol Grip Gage Only with Indicator
- Range (in):
- 4 - 8"
- Range (mm):
- 100-200mm
- Resolution (in):
- .00005"
- Resolution (mm):
- 0.001mm
- Series Title:
- 781BXT AccuBore Electronic Bore Gages
- Short Description:
- AccuBore Electronic Pistol Grip Gage Only With Indicator, SPC Output, 4-8" Range, .00005" Res.
- SPC Output:
- Yes
- Status:
- Active
- A002040UCC12UPCA:
- 049659730227
- A002050EANUCC13EAN13:
- 0049659730227
- Top 354:
- N
- Unit Pack Height (in):
- 4.2
- Unit Pack Height (mm):
- 106.68
- Unit Pack Invoiced:
- N
- Unit Pack Length (in):
- 18.1
- Unit Pack Length (mm):
- 459.74
- Unit Pack Shippable:
- N
- Unit Pack Weight (kg):
- 3.5380176
- Unit Pack Weight (lbs):
- 7.8
- Unit Pack Width (in):
- 11.5
- Unit Pack Width (mm):
- 292.1
- UOM:
- Each
- UPC:
- 049659730227
- Use Placeholder Photo:
- N
- User Manual URL-US-EN:
- https://www.starrett.com/um-781
- US List Price:
- $2774.00
- US Next List Price:
- $2774.00
- US Web Price:
- $2774.00
- Web Catalog-US-EN:
- Y
- Web Price:
- $2774.00
- Web Priority-US-EN:
- 30400170
- Electronic or Mechanical:
- Electronic
- Discontinued:
- false
- 01 Attribute :
- Range (in)
- 01 Spec:
- 4 - 8"
- 02 Attribute:
- Range (mm)
- 02 Spec:
- 100-200mm
- 03 Attribute:
- Resolution (in)
- 03 Spec:
- .00005"
- 04 Attribute:
- Resolution (mm)
- 04 Spec:
- 0.001mm
- 05 Attribute:
- SPC Output
- 05 Spec:
- Yes
- Available In Region :
- United States|Canada
