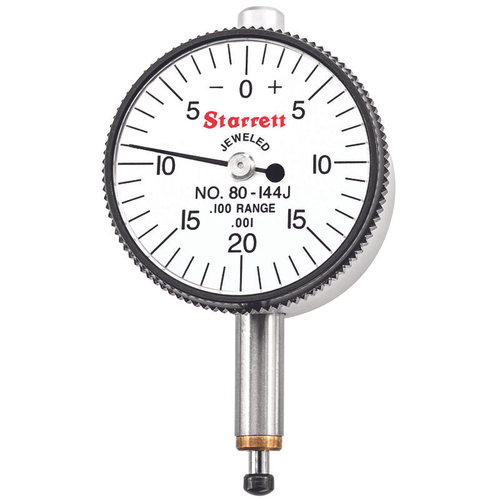

80-144J Miniature Dial Indicator

80-144J Miniature Dial Indicator

$344.00
(No reviews yet) Write a Review
SKU:
80-144J
UPC:
049659558937
POA Flag:
N
Product made to order status:
MTA
Product Photo 01:
https://s3-us-west-2.amazonaws.com/catsy.833/80-144JcUSp1.tif
Product Title:
80-144J Miniature Dial Indicator
Range One Rev. (in):
.040"
SDS Indicator:
N
Series Title:
80 Miniature Dial Indicators
Shelf Pack Item Qty:
1
Shelf Pack Pricing Quantity:
1
Short Description:
Mini Dial Indicator, 0-.100" Range, 0-20-0 Balanced Dial, .001" Grads, .040" Range Per Rev, .2185" Stem
Status:
Active
Stem Diameter (in):
.2185"
Top 354:
Y
Total Range (in):
.100"
Unit Pack Height (in):
2.1
Unit Pack Height (mm):
53.34
Unit Pack Item Qty:
1
Unit Pack Length (in):
3.1
Unit Pack Length (mm):
78.74
Unit Pack Weight (kg):
0.0907184
Unit Pack Weight (lbs):
0.2
Unit Pack Width (in):
2.3
Unit Pack Width (mm):
58.42
UOM:
Each
UPC:
049659558937
Use Placeholder Photo:
N
US List Price:
$344.00
US Web Price:
$344.00
Web Catalog-US-EN:
Y
Web Priority-US-EN:
22400050
A0006160MSDSINDICATOR:
N
A002040UCC12UPCA:
049659558937
A002050EANUCC13EAN13:
0049659558937
Catalog:
https://s3-us-west-2.amazonaws.com/catsy.833/Starrett+Catalog+33+Precision+Hand+Tools.pdf
Catalog URL:
https://www.starrett.com/dms/flipbooks/Cat-33/index.html?page=146
Category:
Precision Measuring Tools > Precision Hand Tools > Indicators & Gages > Dial Indicators
Cal Prop 65 Chemical:
Lead
Cal Prop 65 Warning:
Y
Cal Prop 65 Statement:
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
Country of Origin :
United States
Current Catalog:
33
Current Catalog Page:
146
Dial Color:
White
Dial Reading:
0-20-0
EAN:
0049659558937
EDP:
55893
Effective List Date:
2022-12-31
Effective Web Date:
2022-07-01
Feature 01:
Built for gaging dimensions in tight places
Feature 02:
Equipped with high precision, low friction movements and frictionally adjustable bezels for quick, positive zero setting
Feature 03:
No-glare, white eggshell finish dials
Feature 04:
Black bezel, silver finish on case
Feature 05:
Furnished with balanced dial, jeweled bearings and lug-on center back
Feature 06:
Black bezel, silver finish on case
Feature 07:
Unbreakable crystal
Feature 08:
Hardened stainless steel bottom stems can be held in fixtures without cramping rack action
Feature 09:
Hardened stainless steel stem
Feature 10:
Hardened stainless steel rack and spindle
Feature 11:
Hardened stainless steel gears and pinions
Feature 12:
The case is light but sturdy, with a hardened, precision stainless steel rack that rides in bronze bushings
Feature 13:
No-glare satin finish on case
Feature 14:
Direct acting compression spring eliminates side friction
Feature 15:
Contact points and backs can be ordered individually. Order by part number/EDP number
Feature 16:
Frictionally adjustable bezels for quick, positive zero setting
Feature 17:
Easy readability with the best, balanced style of graduation and number combination
Feature 18:
Balanced and tapered hands are easy to follow
Feature 19:
Furnished with balanced dial, jeweled bearings and lug-on-center back.
Athol Inventory:
0
Available for Purchase-US-EN:
Y
Available In Region :
United States|Canada
Brochure:
https://s3-us-west-2.amazonaws.com/catsy.833/Catalog+33+Section++5+-+Dial+and+Electronic+Indicators+and+Gages.pdf
CAN List Price:
CA$437.00
CAN Price List Name:
133W - 2021
CAN Web Price:
CA$362.49
Combined Dollar Sales:
194997.89
Combined Unit Sales :
1078
Description:
The Starrett 80 Series Miniature Dial Indicator is similar in design to AGD dial indicators. The
In Sugar Catalog:
Yes
Item Class:
Stand-Alone
Max. Range (in):
0.1
Min. Range (in):
0
ORS Part Numbers :
681-55893
Parent SKU As a Regular Field:
80
Product Group Sort:
icc110503
Website-URL:
https://www.starrett.com/details?cat-no=80-144J
Show in Web Nav?:
Yes
Top Seller:
Yes
Total Inventory:
0
Unit Sales 2020:
217
Unit Sales 2021:
481
Unit Sales 2022:
380
US Price List Name:
133W - 2021
US Web Temp Hold:
Off
Version:
Lug on center back
Web Price:
$344.00
Starrett Model No.:
80
Style:
Miniature
Indicator Group :
ANSI 0
AGD and Starrett No.:
ANSI 0, Starrett Model 80
Graduations (in):
.001"
ICC:
110503 Dial Indicators
Item Discount Code:
A
Item Primary Ship Lead Time:
3
Item Segmentation:
Catalog
Made in America:
Yes
Main Image:
https://s3-us-west-2.amazonaws.com/catsy.833/80-144JcUSp1.tif
Manufacturer's code:
049659
NAFTA Producer:
Yes
Name:
MINI DIAL INDICATOR, 0 -.100", .001" GRAD
Item ID:
80-144J
Electronic or Mechanical:
Mechanical
Category L1:
Indicators & Gages
Category L2:
Dial Indicators
Sales Category:
TOOLS.INDICATORS (& INDICATOR PARTS).
Flat Stock Inventory:
0
Mt Airy Inventory :
0
Rocky Mountain Inventory:
0
US Next List Price:
$344.00
IBC Category 1:
Testing, Measuring and Inspection
IBC Category 2:
Dimensional Measurement Tools
IBC Category 3:
Dial Indicator and Base Kits
Dimensional Drawing PDF:
https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-80-144J-Dimensional-Drawing.pdf
Dimensional Drawing (IMG):
https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-80-144J-Dimensional-Drawing.tif
To Delete:
false
To Remove:
false
Dollar Sales 2023:
$73967.78
Unit Sales 2023:
365
Webber Inventory:
0
Minimum Order Quantity:
0
Discontinued:
false
01 Attribute :
Graduations (in)
01 Spec:
.001"
02 Attribute:
Dial Reading
02 Spec:
0-20-0
03 Attribute:
Dial Color
03 Spec:
White
04 Attribute:
Style
04 Spec:
Miniature
05 Attribute:
Total Range (in)
05 Spec:
.100"
06 Attribute:
Range One Rev. (in)
06 Spec:
.040"
07 Attribute:
Stem Diameter (in)
07 Spec:
.2185"
08 Attribute:
Version
08 Spec:
Lug on center back
09 Attribute:
Indicator Group
09 Spec:
ANSI 0
Catalog URL-US-EN:
https://s3-us-west-2.amazonaws.com/catsy.833/Starrett+Band+Saw+Blades+Catalog+60.pdf
The Starrett 80 Series Miniature Dial Indicator is similar in design to AGD dial indicators. The miniature is built for gaging dimensions in tight places. Equipped with high precision, low friction movements, it is made in four models, all with frictionally adjustable bezels for quick, positive zero setting. No-glare, white eggshell finish dials. Black bezel, silver finish on case. Furnished with balanced dial, jeweled bearings and lug-on-center back. .100" Range, Dial Reading 0-20-0, .001" Grad, Furnished with balanced dial, jeweled bearings and lug-on-center back.
