The Starrett 80 Series Miniature Dial Indicator is similar in design to AGD dial indicators. The miniature is built for gaging dimensions in tight places.

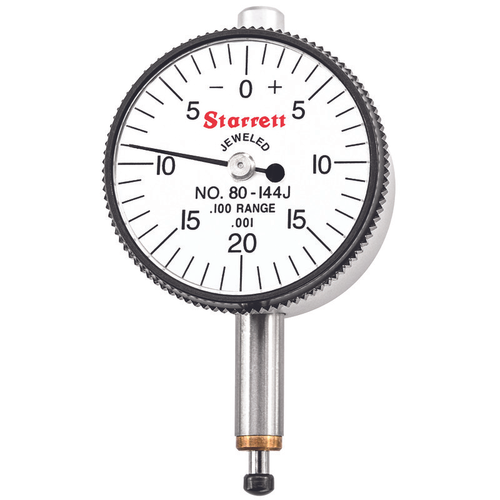

80-144J WFB Miniature Dial Indicator
$353.00
- SKU:
- 80-144J WFB
- UPC:
- 049659568080
- POA Flag:
- N
- Product made to order status:
- MTO
- Product Photo 01:
- https://s3-us-west-2.amazonaws.com/catsy.833/80-144JcUSp1.tif
- Product Title:
- 80-144J WFB Miniature Dial Indicator
- Range One Rev. (in):
- .040"
- SDS Indicator:
- N
- Series Title:
- 80 Miniature Dial Indicators
- Short Description:
- WFB Mini Dial Indicator, Flat Back, 0-.100" Range, 0-20-0 Balanced Dial, .001" Grads, .040" Range Per Rev, .2185" Stem
- Status:
- Active
- Stem Diameter (in):
- .2185"
- Top 354:
- N
- Total Range (in):
- .100"
- Unit Pack Height (in):
- 2.1
- Unit Pack Height (mm):
- 53.34
- Unit Pack Item Qty:
- 1
- Unit Pack Length (in):
- 3.1
- Unit Pack Length (mm):
- 78.74
- Unit Pack Weight (kg):
- 0.0907184
- Unit Pack Weight (lbs):
- 0.2
- Unit Pack Width (in):
- 2.3
- Unit Pack Width (mm):
- 58.42
- UOM:
- Each
- UPC:
- 049659568080
- Use Placeholder Photo:
- Y
- US List Price:
- $353.00
- US Web Price:
- $353.00
- Web Catalog-US-EN:
- Y
- Web Priority-US-EN:
- 22400325
- Category:
- Precision Measuring Tools > Precision Hand Tools > Indicators & Gages > Dial Indicators
- Cal Prop 65 Chemical:
- Lead
- Cal Prop 65 Warning:
- Y
- Cal Prop 65 Statement:
- WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
- Country of Origin :
- United States
- Dial Color:
- White
- Dial Reading:
- 0-20-0
- EAN:
- 0049659568080
- EDP:
- 56808
- Effective List Date:
- 2022-12-31
- Effective Web Date:
- 2022-07-01
- Feature 01:
- Equipped with high precision, low friction movements, made in four models, all with frictionally adjustable bezels for quick, positive zero setting
- Feature 02:
- No-glare, white eggshell finish dials
- Feature 03:
- Black bezel, silver finish on case
- Feature 04:
- Furnished with balanced dial, jeweled bearings and lug-on-center back
- Feature 11:
- Hardened stainless steel gears and pinions
- Feature 12:
- The case is light but sturdy, with a hardened, precision stainless steel rack that rides in bronze bushings
- Feature 13:
- No-glare satin finish on case
- Feature 14:
- Direct acting compression spring eliminates side friction
- Feature 15:
- Contact points and backs can be ordered individually. Order by part number/EDP number
- Feature 16:
- Frictionally adjustable bezels for quick, positive zero setting
- Feature 17:
- Easy readability with the best, balanced style of graduation and number combination
- Feature 18:
- Balanced and tapered hands are easy to follow
- Feature 19:
- Furnished with balanced dial, jeweled bearings and lug-on-center back.
- Available for Purchase-US-EN:
- Y
- Available In Region :
- United States|Canada
- CAN List Price:
- CA$446.00
- CAN Price List Name:
- 133W - 2021
- CAN Web Price:
- CA$370.23
- Combined Dollar Sales:
- 6775.25
- Combined Unit Sales :
- 36
- Description:
- The Starrett 80 Series Miniature Dial Indicator is similar in design to AGD dial indicators. The
- In Sugar Catalog:
- Yes
- Item Class:
- Stand-Alone
- Max. Range (in):
- 0.1
- Min. Range (in):
- 0
- Parent SKU As a Regular Field:
- 80
- Product Group Sort:
- icc110503
- Website-URL:
- https://www.starrett.com/details?cat-no=80-144J WFB
- Show in Web Nav?:
- Yes
- Total Inventory:
- 1
- Unit Sales 2020:
- 10
- Unit Sales 2021:
- 19
- Unit Sales 2022:
- 7
- US Price List Name:
- 133W - 2021
- US Web Temp Hold:
- Off
- Version:
- Flat Back
- A0006160MSDSINDICATOR:
- N
- A002040UCC12UPCA:
- 049659568080
- A002050EANUCC13EAN13:
- 0049659568080
- Web Price:
- $353.00
- Style:
- Miniature
- Starrett Model No.:
- 80
- Indicator Group :
- ANSI 0
- AGD and Starrett No.:
- ANSI 0, Starrett Model 80
- Graduations (in):
- .001"
- ICC:
- 110503 Dial Indicators
- Item Discount Code:
- A
- Item Primary Ship Lead Time:
- 3
- Item Segmentation:
- Catalog
- Made in America:
- Yes
- Main Image:
- https://s3-us-west-2.amazonaws.com/catsy.833/80-144JcUSp1.tif
- Manufacturer's code:
- 049659
- NAFTA Producer:
- Yes
- Name:
- MINI DIAL INDICATOR, FLAT BACK, 0 -.100"
- Item ID:
- 80-144J WFB
- Electronic or Mechanical:
- Mechanical
- Category L1:
- Indicators & Gages
- Category L2:
- Dial Indicators
- Sales Category:
- TOOLS.INDICATORS (& INDICATOR PARTS).
- Athol Inventory:
- 1
- Flat Stock Inventory:
- 0
- Mt Airy Inventory :
- 0
- Rocky Mountain Inventory:
- 0
- US Next List Price:
- $353.00
- IBC Category 1:
- Testing, Measuring and Inspection
- IBC Category 2:
- Dimensional Measurement Tools
- IBC Category 3:
- Dial Indicator and Base Kits
- To Delete:
- false
- To Remove:
- false
- Dollar Sales 2023:
- $2676.01
- Unit Sales 2023:
- 12
- Webber Inventory:
- 0
- Minimum Order Quantity:
- 0
- Discontinued:
- false
- Orderable Online Today (US Only):
- Yes
- 01 Attribute :
- Graduations (in)
- 01 Spec:
- .001"
- 02 Attribute:
- Dial Reading
- 02 Spec:
- 0-20-0
- 03 Attribute:
- Dial Color
- 03 Spec:
- White
- 04 Attribute:
- Style
- 04 Spec:
- Miniature
- 05 Attribute:
- Total Range (in)
- 05 Spec:
- .100"
- 06 Attribute:
- Range One Rev. (in)
- 06 Spec:
- .040"
- 07 Attribute:
- Stem Diameter (in)
- 07 Spec:
- .2185"
- 08 Attribute:
- Version
- 08 Spec:
- Flat Back
- 09 Attribute:
- Indicator Group
- 09 Spec:
- ANSI 0
