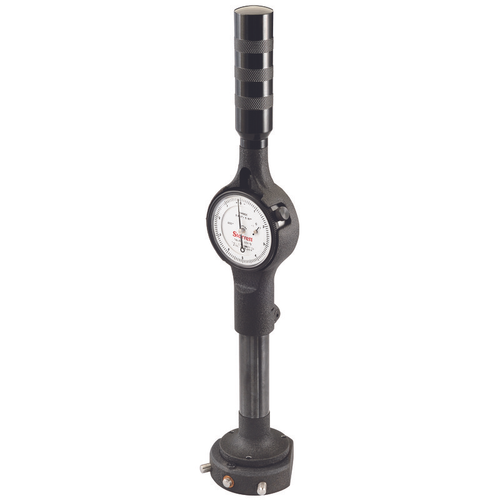

84Z-134-5J Dial Bore Gage (3 €“ 5-3/16" Range)

84Z-134-5J Dial Bore Gage (3 €“ 5-3/16" Range)

$1,551.00
(No reviews yet) Write a Review
SKU:
84Z-134-5J
UPC:
049659503920
Discontinued:
false
A0006160MSDSINDICATOR:
N
A002040UCC12UPCA:
049659503920
A002050EANUCC13EAN13:
0049659503920
Available for Purchase-US-EN:
N
Category:
Discontinued
Item Segmentation:
Catalog
NAFTA Producer:
Yes
Item ID:
84Z-134-5J

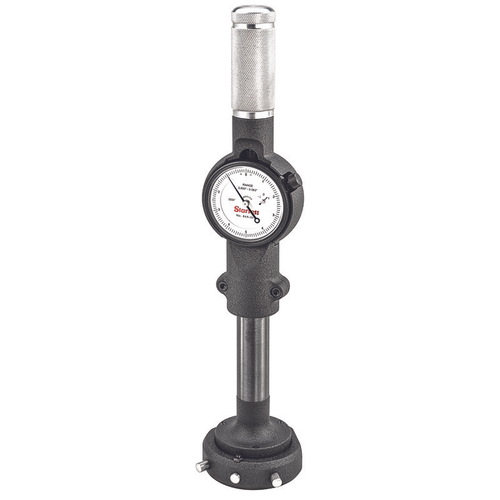

Superseded By:
84AZ-134-5J
UOM:
Each
US Promo Price:
$0.00
US Web Price:
$1551.00
Web Catalog-US-EN:
Y
COO Detail:
Made in the USA with US and Global Content
Global Product Classification:
BORE GAGE, DIAL
Manufacturer's code:
049659
Athol Inventory:
0
Available In Region:
United States|Canada
Flat Stock Inventory:
0
Item Class:
Stand-Alone
Mt Airy Inventory:
0
Product Group Sort:
discontinued
Rocky Mountain Inventory:
0
To Delete:
false
To Remove:
false
Total Inventory:
0
US Web Temp Hold:
Off
Webber Inventory:
0
Western Link Inventory:
0
Long Description:
84Z-134-5J
Made in America:
Yes
POA Flag:
N
Schedule B Number:
9017.30.8000
Shelf Pack Item Qty:
1
Shelf Pack Pricing Quantity:
1
Tariff Code for entry into Mexico:
Yes
Top 354:
N
Unit Pack Height (mm):
160.02
Unit Pack Length (mm):
393.7
Unit Pack Volume (cu ft):
551.304
Unit Pack Weight (kg):
3.0390664
Unit Pack Width (mm):
137.16
Use Placeholder Photo:
Y
Web Price:
$1551.00
Country of Origin:
United States
Approximate Measuring Depth (in):
6"
EAN:
0049659503920
EDP:
50392
Feature 01:
Can be easily held to inspect bores and hole sizes without removing the workpiece
Feature 02:
An adjustable range screw and two centralizing plungers provide accurate, three-point contact for tool alignment in larger bores
Feature 03:
All contacts and centralized plungers are of hardened tool steel for wear and spring-loaded for sensitivity
Feature 04:
The housing and knurled handle are aluminum for light weight and good balance
Feature 05:
Dial indicators have jewel bearings for sensitivity
Feature 06:
Furnished in finished wood case
Feature 07:
Bore depths are also available up to 12" (300mm) in 1" (25mm) increments on special order
Feature 08:
Also available with carbide contacts or electronic indicators with output capability on special order
Graduations (in):
.0005"
Product Photo 01:
https://s3.us-west-2.amazonaws.com/catsy.833/84Z-134-4JcUSp2.tif
Product Title:
84Z-134-5J Dial Bore Gage (3 €“ 5-3/16" Range)
Range (in):
3 to 5-3/16"
SLC Certification:
Optional Add-On
Unit Pack Height (in):
6.2
Unit Pack Item Qty:
1
Unit Pack Length (in):
15.6
Unit Pack Width (in):
5.7
US List Price:
$1551.00
Web Priority-US-EN:
99999999
Unit Pack Weight (lbs):
6.25
SDS Indicator:
N
Series Title:
84, 84M Dial Bore Gages with Cases
Status:
GOING DISC
Main Image:
https://s3.us-west-2.amazonaws.com/catsy.833/84Z-134-4JcUSp2.tif
The Starrett 84 Dial Bore Gage allows for bore measurements beyond the size range of our 82 Series. It is a comparison gage and should be set with a master ring gage, gage blocks with parallel jaws, outside micrometer or vernier caliper. Ring gage is available by request, quoted by application. Good practice is to set the gage to zero, as near to the desired dimension as possible. 3"-5 3/16" Range .0005" Grad possible. Note: This item is discontinued. Please consider the recommended alternative listed above or contact our special order department at (978) 249-3551 x410 for more information.
