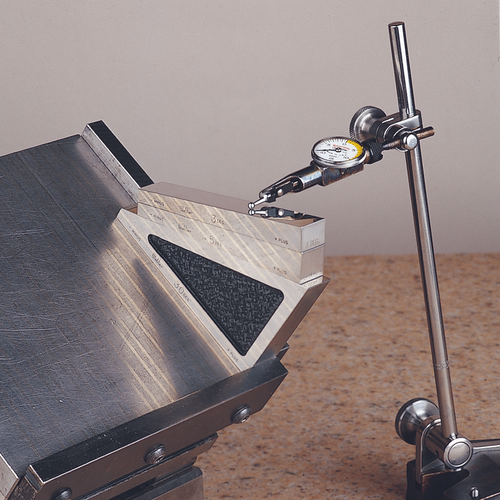

AG 3. SC Angle Gage Block

AG 3. SC Angle Gage Block

$613.00
(No reviews yet) Write a Review
SKU:
AG 3. SC
Category:
Gage Blocks and Calibration Solutions > Angle Gage Blocks and Sets
Cal Prop 65 Warning:
N
Description / Accuracy Grade:
Calibration Grade ±2.0 Seconds
EDP:
93853
Feature 01:
Traditional High Grade Steel Construction
Feature 02:
Rockwell "C" Hardness of approximately 64-65
Feature 03:
Accuracy Grade: Callibration
Available for Purchase-US-EN:
Y
Item Class:
Stand-Alone
Product Group Sort:
angle_blocks_and_sets
Website-URL:
https://www.starrett.com/details?cat-no=AG 3. SC
Show in Web Nav?:
Yes
To Delete:
false
To Remove:
false
Total Inventory:
0
US Web Temp Hold:
Off
Item Segmentation:
Catalog
Long Description:
STEEL ANGLE BLOCK
Made in America:
Yes
Main Image:
https://s3.us-west-2.amazonaws.com/catsy.833/angle+block_cUSa1.tif
Item ID:
AG 3. SC
Product Photo 01:
https://s3.us-west-2.amazonaws.com/catsy.833/angle+block_cUSa1.tif
Product Title:
AG 3. SC Angle Gage Block
Series Title:
Angle Gage Blocks
Shape:
Angle
Short Description:
Angle Steel Gage Block - 3 Degrees, Callibration Grade
Size:
3 Degrees
Status:
Active
Accuracy Grade:
Calibration
Top 354:
N
Unit Of Measure:
Each
Unit Pack Weight (lbs):
1
UOM:
Each
Use Placeholder Photo:
Y
US List Price:
$613.00
Web Catalog-US-EN:
Y
Web Priority-US-EN:
49607340
Component Type:
Individual Gage Block
01 Spec:
Individual Angle Block
02 Attribute:
Material Type
02 Spec:
Steel
03 Attribute:
Nominal Size
03 Spec:
3 Degrees
04 Attribute:
Accuracy Grade
04 Spec:
Seconds
Discontinued:
false
Catalog URL-US-EN:
https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Precision-Hand-Tools.pdf
Current Catalog:
33
Current Catalog Page:
399
Catalog Section Page:
25
Catalog:
https://s3.us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Precision-Hand-Tools.pdf
Catalog Section:
https://s3.us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Section-19-Starrett-Webber-Gage-Blocks.pdf
Category L1:
Gage Blocks
Category L2:
Angle
01 Attribute:
Block Type
material:
Steel
Unit Pack Item Qty:
1
Product Type:
Individual Angle Block
Product made to order status:
MTO
Available In Region:
United States|Canada
Country of Origin:
United States
Minimum Order Quantity:
0
Angle Units:
Seconds
Nominal Size:
3 Degrees
05 Attribute:
Accuracy Grade
05 Spec:
Callibration
06 Attribute:
Tolerances: Deviation From Nominal
06 Spec:
±2.0 second
07 Attribute:
Flatness of Gaging Surfaces
07 Spec:
8μin. (0.20μm)
08 Attribute:
Flatness & Parallelism of Sides
08 Spec:
8μin. (0.20μm)
09 Attribute:
Squareness of Sides to Gaging Surfaces
09 Spec:
8 seconds
10 Attribute:
Area of Gaging Surfaces
10 Spec:
1 x 2" (25 x 50mm)
11 Attribute:
Surface Finish (Gage Surfaces Only)
11 Spec:
0.6μin. AA (.015μm AA)
Estimated Uncertainty of Measurement (k=2):
1.0 seconds
Flatness of Gaging Surfaces:
8μin. (0.20μm)
Material Type:
Steel
Type:
Individual Angle Block
Tolerances: Deviation From Nominal:
±2.0 second
Area of Gaging Surfaces:
1 x 2" (25 x 50mm)
Flatness & Parallelism of Sides:
8μin. (0.20μm)
Material of Construction:
Steel
Squareness of Sides to Gaging Surfaces:
8 seconds
Surface Finish (Gage Surfaces Only):
0.6μin. AA (.015μm AA)
Block Type:
Individual Angle Block
Application Grade:
Calibration
Blades per Pack (pcs):
1
12 Attribute:
Estimated Uncertainty of Measurement (k=2)
12 Spec:
1.0 seconds
3 Degree, Callibration Grade Angle Gage Block produced from tradtional high-grade steel. Recommended for universal use in shop floor environments.
