E1175Z Digital Indicator Groove Gage

E1175Z Digital Indicator Groove Gage

$3,466.00
(No reviews yet) Write a Review
SKU:
E1175Z
UPC:
049659614725
Category:
Precision Measuring Tools > Precision Hand Tools > Indicators & Gages > Groove Gages
Cal Prop 65 Chemical:
Lead, Beryllium
Conflict Minerals:
N
Contaminated if Opened:
N
Exists in Comport:
N
Assembled in US:
N
Athol Inventory:
0
Available for Purchase-US-EN:
Y
Flat Stock Inventory:
0
Item Class:
Stand-Alone
Parent SKU As a Regular Field:
1175
Product Group Sort:
icc110507_groove_gages
Webber Inventory:
0
Website-URL:
https://www.starrett.com/details?cat-no=E1175Z
Rocky Mountain Inventory:
0
Show in Web Nav?:
Yes
To Delete:
false
To Remove:
false
Total Inventory:
0
US Web Temp Hold:
Off
Fragile:
N
French Language Included:
N
Global Product Classification:
ELECTRONIC DIAL INDICATOR GROOVE GAGE
Hazmat Indicator:
N
Item Segmentation:
Catalog
Long Description:
Each
Made in America:
Yes
Manufacturer's code:
049659
Marked Recyclable:
N
Item ID:
E1175Z
PMRA Regulated:
N
Refrigerant Indicator:
N
Resolution (in):
.0001"
Resolution (mm):
0.001mm
Shelf Pack Invoiced:
N
Shelf Pack Shippable:
N
A0006160MSDSINDICATOR:
N
A000670ROHASCOMPLIANT:
N
A002040UCC12UPCA:
049659614725
A002050EANUCC13EAN13:
0049659614725
Subject to Environmental Change:
N
Temperature Sensitive:
N
Top 354:
N
Unit Pack Height (mm):
96
Unit Pack Invoiced:
N
Unit Pack Length (mm):
274
Unit Pack Shippable:
N
Unit Pack Weight (kg):
1.7
Unit Pack Width (mm):
274
UOM:
Each
Use Placeholder Photo:
N
US Web Price:
$3466.00
Variable Unit:
N
Web Catalog-US-EN:
Y
Web Price:
$3466.00
Discontinued:
false
Current Catalog:
33
Current Catalog Page:
add?
Western Link Inventory:
0
Category L1:
Indicators & Gages
Category L2:
Groove Gages
US Promo Price:
$0.00
01 Attribute:
Range (in)
COO Detail:
Made in the USA with US and Global Content
Schedule B Number:
9017.30.8000
Product made to order status:
MTO
Available In Region:
United States|Canada
Mt Airy Inventory:
0
Country of Origin:
United States
01 Spec:
.375 - 6"
02 Attribute:
Range (mm)
02 Spec:
9.5 - 150mm
03 Attribute:
Accuracy (in)
03 Spec:
.0002"
04 Attribute:
Accuracy (mm)
04 Spec:
0.002mm
05 Attribute:
Resolution (in)
05 Spec:
.0001"
06 Attribute:
Resolution (mm)
06 Spec:
0.001mm
Accuracy (in):
.0002"
Accuracy (mm):
0.002mm
Cal Prop 65 Statement:
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
Datasheet:
https://s3.us-west-2.amazonaws.com/catsy.833/starrett-e1175z-electronic-multi-anvil-micrometer-bulletin-1846.pdf
Dial Indicator Graduations (In):
.0005"
EAN:
0049659614725
EDP:
61472
Electronic or Mechanical:
Electronic
Feature 01:
The reference jaw can be mounted in two positions on the range adjusting bar
Feature 02:
The bar itself is also adjustable for greater or lesser range
Feature 03:
A fine adjustment screw and a lock are also provided
Feature 04:
Supplied with two sets of jaws, both readily interchangeable
Feature 05:
Three sets of contacts are furnished (Styles 1-10, 2-10, 2-20) that can be attached to the ends of the jaws without replacing the entire jaw.
Feature 06:
Contacts have flush ends so that grooves at the bottom of blind holes can be gaged
Feature 07:
The contacts are hardened steel with a hard chrome finish for long life
Feature 08:
Gage can be set with gage blocks or other methods such as micrometers, vernier calipers and ring gages
Feature 09:
Furnished with storage case
Product Photo 01:
https://s3.us-west-2.amazonaws.com/catsy.833/E1175Ze61472cUSp1.tif
Product Photo 02:
https://s3.us-west-2.amazonaws.com/catsy.833/E1175Ze61472cUSz1.tif
Product Title:
E1175Z Digital Indicator Groove Gage
Product Type:
Groove Gage
Range (in):
.375 - 6"
Range (mm):
9.5 - 150mm
Short Description:
Digital Indicator Groove Gage, .375-6" Range, .0001"Resolution
Throat Depth (in):
4 and 6"
Throat Depth (mm):
100 and 150mm
Unit Pack Height (in):
3.6
Unit Pack Item Qty:
1
Unit Pack Length (in):
10.6
Unit Pack Width (in):
10.6
US List Price:
$3466.00
Web Priority-US-EN:
26400015
Unit Pack Weight (lbs):
4.25
User Manual URL-US-EN:
https://www.starrett.com/um-1175
RoHS (EU):
N
SDS Indicator:
N
Series Title:
1175,1175M - Dial Indicator Groove Gages
Status:
Active
Cal Prop 65 Warning:
Y
Max. Range (in):
6
Max. Range (mm):
150
Min. Range (in):
0.375
Min. Range (mm):
9.5
Main Image:
https://s3.us-west-2.amazonaws.com/catsy.833/E1175Ze61472cUSp1.tif
Special Function Dial Gage Type:
Groove Gage
Indicator Dial Reading:
±30
Indicator Range:
.060"

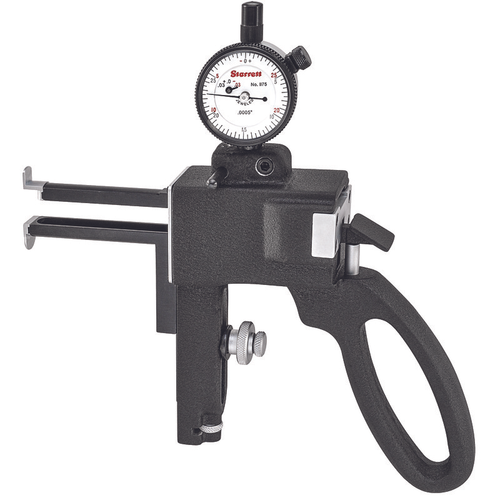

This lightweight gage is used for in-process or bench inspection of oil grooves, snap ring retainer grooves, O ring seat retainer grooves and similar internal recesses. It is also useful for checking bore dimensions and testing for taper, bell-mouth and out-of-roundness. The movable, sensitive gaging contact has a 1/2" (12.7mm) retractable range and transfers the measurement through a linear, friction-free transfer mechanism to the dial indicator. The lower reference jaw is fixed and supports the entire weight of the gage and the operator's hands, thus preventing incorrect gaging pressure and false readings. The reference jaw can be mounted in two positions on the range adjusting bar. The bar itself is also adjustable for greater or lesser range. A fine adjustment screw and a lock are also provided. .375-6" Range with F2715AD Indicator in Case. A fine adjustment screw and a lock are also provided.
