F2715MV Group 1 Electronic Indicator

(No reviews yet) Write a Review

Write a Review

Close ×

F2715MV Group 1 Electronic Indicator

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name Required

Email Required

Review Subject Required

Comments Required

SKU:

F2715MV

UPC:

049659624618

Category:

Precision Measuring Tools > Precision Hand Tools > Indicators & Gages > Electronic Indicators

Current Catalog:

Add

Current Catalog Page:

add

Feature 01:

Absolute Sensor – Never lose position (even when replacing batteries)

Feature 02:

Long Battery Life – Approximate Hours: Casual Daily 3,000 Hours

Feature 03:

No Over-Speed Error – Fast spindle speeds

Feature 04:

Fixed Scale – More robust, reliable, & compact design than a moving scale

Feature 05:

3 Measuring Modes: INC (Incremental); PRESET (Change Zero Value);TIR (Total Indicator Reading) Scroll through TIR, Max, and Min Values

Feature 06:

Off Button

Feature 07:

Rotating Bezel 270 degrees

Feature 08:

TOL (Tolerance) Program HI / LOW Values

Feature 09:

+ / - Travel Direction Changeable

Feature 10:

Floating Zero

Feature 11:

Resolution -Changeable

Feature 12:

Programmable Ratio

Feature 13:

IN mm Button – Change displayed units

Feature 14:

Programmable Lock

Feature 15:

Data Send

Feature 16:

Data Cables USB, MTI (Digimatic), RS232

Feature 17:

200 Data Measurements Stored in Indicator

Feature 18:

CALC software (optional) allows for measurement Formula & Lookup Tables to be downloaded into indicator.

Athol Inventory:

41

Available for Purchase-US-EN:

Y

In Sugar Catalog:

No

Item Class:

Stand-Alone

Max. Range (in):

.4

Min. Range (in):

0

Product Group Sort:

icc110504

Webber Inventory:

0

Western Link Inventory:

0

Rocky Mountain Inventory:

0

SLC Certification:

Optional Add-On

To Delete:

false

To Remove:

false

Top Seller:

N

Total Inventory:

41

US Web Temp Hold:

Off

Global Product Classification:

INDICATOR, ELECTRONIC - IQ (RANGE - .400 / 10mm) 0.00005" READING

Item Segmentation:

Catalog

Long Description:

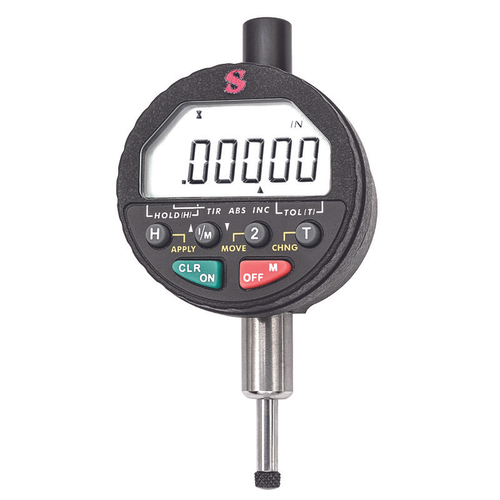

Replaces catalog numbers F2715AD and F2715IQ

Made in America:

Yes

Main Image:

https://s3-us-west-2.amazonaws.com/catsy.833/F2715MVp1.tif

Item ID:

F2715MV

Product made to order status:

MTA

Product Photo 01:

https://s3-us-west-2.amazonaws.com/catsy.833/F2715MVp1.tif

Product Title:

F2715MV Group 1 Electronic Indicator

Range (in):

.40"

Range (mm):

10mm

Resolution (in):

.001"|.0005"|.0001"|.00005"

Resolution (mm):

0.02mm|0.01mm|0.002mm

Series Title:

2700MV Electronic Digital Indicators

Short Description:

Digital Indicator, AGD Group 1, SPC Output, 10mm/.4" Range, 0.02mm/0.01mm/0.002mm/0.001mm/.001"/.0005"/.0001"/.00005" Res.

Status:

Active

Stem Diameter (in):

.375"

Orderable Online Today (US Only):

Yes

Accuracy (in):

+/- .0001"

Accuracy (mm):

+/- 0.002mm

Stocked Locally(Y/N)-US-EN:

Y

Thread Size:

#4-48 UNF

Top 354:

N

Unit Pack Item Qty:

1

Unit Pack Weight (lbs):

0.95

UOM:

Each

US List Price:

$538.00

Web Catalog-US-EN:

Y

Web Price:

$0.00

Web Priority-US-EN:

22800301

Starrett Model No.:

2700

Category L1:

Indicators

Category L2:

Electronic Indicators

Discontinued:

false

Max. Range (mm):

6

Min. Range (mm):

0

US Web Price:

$0.00

01 Spec:

.40"

02 Attribute:

Range (mm)

02 Spec:

10mm

03 Attribute:

Resolution (in)

03 Spec:

.001"/.0005"/.0001"/.00005"

04 Attribute:

Resolution (mm)

04 Spec:

0.02mm/0.01mm/0.002m/0.001mm

05 Attribute:

Accuracy (in)

05 Spec:

+/- .0001

06 Attribute:

Accuracy (mm)

06 Spec:

+/- 0.002mm

07 Attribute:

Stem Diameter (in)

07 Spec:

.375"

08 Attribute:

Output

08 Spec:

Cabled Only

09 Attribute:

Thread Size

09 Spec:

#4-48 UNF

10 Attribute:

SLC Certification

10 Spec:

Optional Add-On

User Manual URL-US-EN:

https://www.starrett.com/UM-2700iqad

Cal Prop 65 Warning:

N

Conflict Minerals:

N

Contaminated if Opened:

N

Exists in Comport:

N

Fragile:

N

French Language Included:

N

Hazmat Indicator:

N

Marked Recyclable:

N

PMRA Regulated:

N

Refrigerant Indicator:

N

Shelf Pack Invoiced:

N

Shelf Pack Shippable:

N

A0006160MSDSINDICATOR:

N

A000670ROHASCOMPLIANT:

N

Subject to Environmental Change:

N

Temperature Sensitive:

N

Unit Pack Height (in):

3.1

Unit Pack Invoiced:

N

Unit Pack Length (in):

7.2

Unit Pack Shippable:

N

Unit Pack Width (in):

5.5

Variable Unit:

N

EDP:

62461

Manufacturer's code:

049659

A002050EANUCC13EAN13:

0049659624618

US Promo Price:

$0.00

01 Attribute:

Range (in)

Battery Type:

CR2032 lithium Battery (Qty 1), Included

COO Detail:

Made in the USA with US and Global Content

Schedule B Number:

9017.30.8000

Output:

Cabled Only

11 Attribute:

Power supply

11 Spec:

Battery

12 Attribute:

Battery Type

12 Spec:

CR2032 lithium Battery (Qty 1), Included

Available In Region:

United States|Canada|United Kindom|Mexico|New Zealand|Australia|China

Mt Airy Inventory:

0

Product Type:

Electronic Indicator

Country of Origin:

United States

A002040UCC12UPCA:

049659624618
