G-80501 36" Planekator Kit

G-80501 36" Planekator Kit

$5,231.05
(No reviews yet) Write a Review
SKU:
G-80501
Catalog:
https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Precision-Hand-Tools.pdf
Catalog URL-US-EN:
https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Precision-Hand-Tools.pdf
Category:
Granite Surface Plates and Accessories > Planekator
Cal Prop 65 Warning:
N
Country of Origin :
United States
Current Catalog:
33
Current Catalog Page:
422
Available for Purchase-US-EN:
N
Available In Region :
United States|Canada
Item Class:
Stand-Alone
Product Group Sort:
icc130213
Website-URL:
https://www.starrett.com/details?cat-no=G-80501
To Delete:
false
To Remove:
false
Top Seller:
N
Total Inventory:
0
US Web Temp Hold:
Off
Item Segmentation:
Catalog
Length (in):
36
Made in America:
Yes
Main Image:
https://s3-us-west-2.amazonaws.com/catsy.833/Planekator-kit.tif
Minimum Order Quantity:
0
Name:
36" Planekator Kit
Item ID:
G-80501
Product Photo 01:
https://s3-us-west-2.amazonaws.com/catsy.833/Planekator-kit.tif
Product Title:
G-80501 36" Planekator Kit
Series Title:
Planekator Kit
Short Description:
36" Planekator kit, 0.000075" Straight Edge Accuracy
Status:
Active
Top 354:
N
Unit Of Measure:
Each
Unit Pack Weight (lbs):
1
UOM:
Each
US List Price:
$5231.05
Web Catalog-US-EN:
Y
Web Priority-US-EN:
48800002
Weight (lbs):
80
Category L1:
Granite Products
Category L2:
Planekator
01 Attribute :
Length (in)
01 Spec:
36
Discontinued:
false
Catalog Section Page:
14
Catalog Section:
https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Section-20-Precision-Granite-Products.pdf
02 Attribute:
Straight Edge Accuracy (In)
02 Spec:
0.000075
03 Attribute:
Weight (lbs)
03 Spec:
80

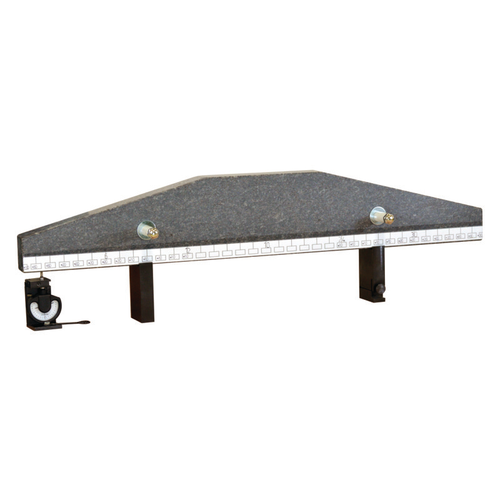

The Planekator measures the overall flatness of your surface plate. It enables you to take direct indicator readings of your surface plate with autocollimator-accuracy, but without the complicated mathematics of the autocollimator. When used in conjunction with a Starrett Repeat Reading Gage, you'll have a very accurate idea of the flatness of your surface plate. Each kit includes a precision granite straight edge, one adjustable support, one fixed support, a certified 0.00002" dial indicator and an indicator carriage. The entire kit is shipped in a heavy-duty travel case. The straight edge comes equipped with lifting handles, correction tape indicating the accuracy at 1" intervals, and includes a NIST-traceable certificate that meets ISO/IEC 17025 requirements. The Planekator straight edge should be at least equal to the full width, and at least equal to 50% of the length of the largest surface you will be inspecting. For example, a 36" planekator straight edge can be used to calibrate any surface up to 36" x 72".
