G-80729 36" x 72" x 12" Surface Plate

G-80729 36" x 72" x 12" Surface Plate

$6,898.00
(No reviews yet) Write a Review
SKU:
G-80729
UPC:
049659807295
Discontinued:
false
A002040UCC12UPCA:
049659807295
A002050EANUCC13EAN13:
0049659807295
Available for Purchase-US-EN:
N
Category:
Discontinued
Item Segmentation:
Catalog
NAFTA Producer:
Yes
Item ID:
G-80729
Show in Web Nav?:
Yes
Superseded By:
G-80756
UOM:
Each
US Promo Price:
$0.00
US Web Price:
$6898.00
Web Catalog-US-EN:
Y
Global Product Classification:
SURFACE PLATE CR PINK 36X72X12 AA 2L
Manufacturer's code:
049659
Athol Inventory:
0
Available In Region:
United States|Canada
Current Catalog:
33
Current Catalog Page:
415
Flat Stock Inventory:
0
Item Class:
Stand-Alone
Mt Airy Inventory:
0
Parent SKU As a Regular Field:
GSP-CP
Product Group Sort:
discontinued
Rocky Mountain Inventory:
0
To Delete:
false
To Remove:
false
Total Inventory:
0
US Web Temp Hold:
Off
Webber Inventory:
0
Website-URL:
https://www.starrett.com/metrology/product-detail/G-80729
Western Link Inventory:
0
Long Description:
G-80729
Made in America:
Yes
Main Image:
https://s3-us-west-2.amazonaws.com/catsy.833/2-ledge+granite_ecUSp1.tif
Placeholder Photo:
https://s3-us-west-2.amazonaws.com/catsy.833/2-ledge+granite_ecUSp1.tif
POA Flag:
N
Schedule B Number:
6802.93.0000
Tariff Code for entry into Mexico:
Yes
Top 354:
N
Unit Pack Height (mm):
508
Unit Pack Length (mm):
2032
Unit Pack Weight (kg):
1402.052872
Unit Pack Width (mm):
1117.6
Use Placeholder Photo:
Y
Web Price:
$6898.00
Country of Origin:
United States
EAN:
0049659807295
EDP:
80729
Feature 01:
Meets or exceeds U.S. Federal Specification GGG-P-463c and ASME B89.3.7 2013 for flatness.
Feature 02:
Great surface hardness and wear resistance €“ the highest percentage of quartz crystals of any granite plate.
Feature 03:
Smooth, jewel-like quartz bearing points protect accuracy and finish of both the surface and the tools used on it.
Feature 04:
Quality and economy combined.
Feature 05:
Comparable to black granite plates while outwearing them as much as 5 to 1.
Feature 06:
Meets or exceeds 50 lb per square foot (24kg per 1,000 sq. cm) load bearing specifications. Available in 100 lb (45kg) test series.
Feature 07:
Standard-size plates are mounted on resilient support pads, providing isolation from normal vibration and a non-distorting 3-point suspension.
Feature 08:
Packed one per crate with skids for forklift handling.
Grade (U.S.):
AA Laboratory
Ledges:
2
material:
Crystal Pink
Product Photo 01:
https://s3.us-west-2.amazonaws.com/catsy.833/2-ledge+granite_ecUSp1.tif
Product Title:
G-80729 36" x 72" x 12" Surface Plate
Short Description:

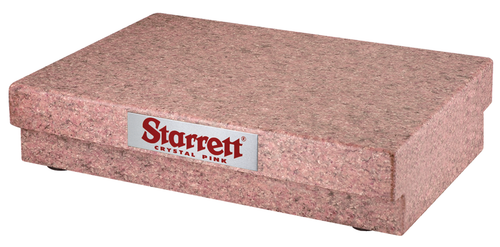

36" x 72" x 12" Crystal Pink® Granite Surface Plate - Grade AA, 2 Ledges
Size LxW (in):
36 x 72
Size LxW (mm):
900 x 1800
Size LxWxT (in):
36 X 72 X 12
Size LxWxT (mm):
900 X 1800 X 300
Thickness (in):
12
Thickness (mm):
300
Unit Pack Height (in):
20
Unit Pack Item Qty:
1
Unit Pack Length (in):
80
Unit Pack Width (in):
44
US List Price:
$0.00
Web Priority-US-EN:
44801080
Unit Pack Weight (lbs):
3091
Series Title:
Crystal Pink® Granite Surface Plate
Status:
Active
Product made to order status:
MTO
36" x 72" (900mm x 1800mm) Crystal Pink® Granite Surface Plate with a 12" (300mm) thickness. Crystal Pink® Granite has the highest percentage of quartz of any granite for superb wear resistance. Grade AA (Laboratory Grade) for precision operations in constant temperature gaging rooms and metrology departments. .000300" (0.0076mm) Flatness unilateral tolerance. Produced with 2 ledges. [Discontinued 05/2022]
