G-88662 24" x 36" x 6" Surface Plate

G-88662 24" x 36" x 6" Surface Plate

$2,489.00
(No reviews yet) Write a Review
SKU:
G-88662
UPC:
049659886627
Category:
Granite Surface Plates and Accessories > Precision Surface Plates
Cal Prop 65 Warning:
N
Country of Origin :
United States
EDP:
88662
Accessory:
G-83025|G-82259|G-82258|G-81824|G-81506|G-81504|G-81320
Feature 01:
Meets or exceeds U.S. Federal Specification GGG-P-463c and ASME B89.3.7 2013 for flatness.
Feature 02:
Best surface hardness and wear resistance - The highest percentage of quartz crystals of any granite plate.
Feature 03:
Smooth, jewel-like quartz bearing points protect accuracy and finish of both the surface and the tools used on it.
Feature 04:
Quality and economy combined.
Feature 05:
Comparable to black granite plates while outwearing them as much as 5 to 1.
Feature 06:
Meets or exceeds 50 lb per square foot (24kg per 1,000 sq. cm) load bearing specifications. Available in 100 lb (45kg) test series.
Feature 07:
Standard-size plates are mounted on resilient support pads, providing isolation from normal vibration and a non-distorting 3-point suspension.
Feature 08:
Packed one per crate with skids for forklift handling.
Available for Purchase-US-EN:
N
Available In Region :
United States|Canada
In Sugar Catalog:
No
Item Class:
Stand-Alone
Parent SKU As a Regular Field:
GSP-CP
Product Group Sort:
icc1301
Website-URL:
https://www.starrett.com/details?cat-no=G-88662
Show in Web Nav?:
Yes
To Delete:
false
To Remove:
false
Total Inventory:
0
US Web Temp Hold:
Off
Grade (U.S.):
B Toolroom
Item Segmentation:
Catalog
Ledges:
2
Made in America:
Yes
Main Image:
https://s3-us-west-2.amazonaws.com/catsy.833/Superior+Red+p1.tif
Manufacturer's code:
049659
Material:
Superior Red
Minimum Order Quantity:
0
Name:
Surface Plate SupRed 24x36x6 B 2L
Item ID:
G-88662
Product Photo 01:
https://s3-us-west-2.amazonaws.com/catsy.833/Superior+Red+p1.tif
Product Photo 02:
https://s3-us-west-2.amazonaws.com/catsy.833/Superior+Red+p3.tif
Product Photo 03:
https://s3-us-west-2.amazonaws.com/catsy.833/Superior+Red+p6.tif
Product Title:
G-88662 24" x 36" x 6" Surface Plate
Series Title:
Superior Red Granite Surface Plate
Short Description:
24 x 36 Superior Red Granite Surface Plate, 6" Thickness, B Grade, 2 Ledges
Size LxW (in):
24 x 36
Size LxW (mm):
600 x 900
Size LxWxT (in):
24 x 36 x 6
Size LxWxT (mm):
600 x 900 x 150
Status:
Active
Thickness (in):
6
Thickness (mm):
150
Top 354:
N
Unit Pack Weight (lbs):
1
UOM:
Each
UPC:
049659886627
US Launch Date:
2023-06-01
US List Price:
$2489.00
Web Catalog-US-EN:
Y
Web Priority-US-EN:
44800650
Category L1:
Granite Products
Category L2:
Precision Surface Plates
01 Attribute :
Size LxWxT (in)
01 Spec:
24 x 36 x 6
02 Attribute:
Grade (U.S.)
02 Spec:
B Toolroom
03 Attribute:
Size LxWxT (mm)
03 Spec:
600 x 900 x 150
04 Attribute:
Ledges
04 Spec:
2
05 Attribute:
Size LxW (in)
05 Spec:
24 x 36
06 Attribute:
Size LxW (mm)
06 Spec:
600 x 900
Discontinued:
false
Current Catalog:
33
Current Catalog Page:
add

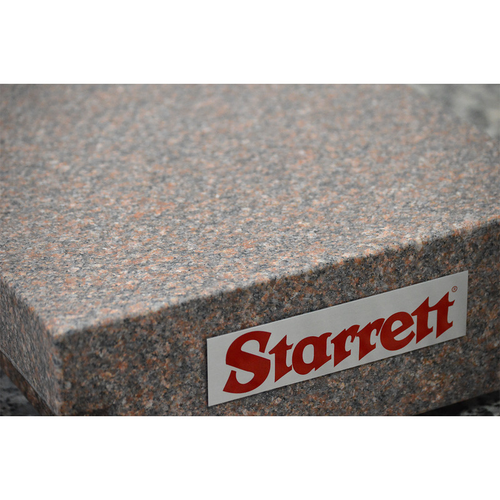

24" x 36" (600mm x 900mm) Superior Red Granite Surface Plate with a 6" (150mm) thickness. Superior Red Granite offers unparalleled wear resistance compared to other surface plates. Grade B (Toolroom Grade) for production checking work throughout the shop. .000400" (0.0102mm) Flatness unilateral tolerance. Produced with 2 ledges.
