S436.1MFXRLZ Outside Micrometer Set

S436.1MFXRLZ Outside Micrometer Set

$18,160.00
(No reviews yet) Write a Review
SKU:
S436.1MFXRLZ
UPC:
049659524192
Discontinued:
false
01 Spec:
Mechanical Outside
01 Attribute:
Micrometer Type
02 Attribute:
Set Range (mm)
02 Spec:
300-600mm
03 Attribute:
Graduations (mm)
03 Spec:
0.01mm
04 Attribute:
Micrometer Sizes
04 Spec:
325, 350, 375, 400, 425, 450, 475, 500, 525, 550, 575 and 600mm
05 Attribute:
Micrometers Included
05 Spec:
12
06 Attribute:
Anvil/Spindle Material
06 Spec:
Carbide
07 Attribute:
Anvil Type
07 Spec:
Flat
08 Attribute:
Spindle Type
08 Spec:
Flat
09 Attribute:
Lock Nut Type
09 Spec:
Knurled Ring Type
10 Attribute:
Thimble Type
10 Spec:
Ratchet
11 Attribute:
Frame Finish
11 Spec:
Black Wrinkle
12 Attribute:
Standards Included
12 Spec:
300, 325, 350, 375, 400, 425, 450, 475, 500, 525, 550, 575mm
13 Attribute:
Case Type
13 Spec:
Wood Case
A002040UCC12UPCA:
049659524192
A002050EANUCC13EAN13:
0049659524192
Anvil Type:
Flat
Available for Purchase-US-EN:
Y
Catalog:
https://s3.us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Precision-Hand-Tools.pdf
Catalog Section:
https://s3.us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Section-01-Micrometers.pdf
Catalog Section Page:
18
Category:
Precision Measuring Tools > Precision Hand Tools > Micrometers > Micrometer Sets
Category L1:
Micrometers
Category L2:
Micrometer Sets
EAN:
0049659524192
EDP:
52419
Feature 01:
The most popular precision micrometers used by skilled workmen worldwide
Feature 02:
Accurate, rugged, and easy to use
Feature 03:
All sets come with attractive, protective case, which keep micrometers and standards together, readily accessible
Feature 04:
Hard and stable one-piece friction thimble permits one-hand operation of micrometer and uniform contact pressure
Feature 05:
Balanced frame and thimble design ensure easy handling
Feature 06:
Gracefully designed tapered frame for use in narrow slots and tight places
Feature 07:
Micro-lapped measuring faces
Feature 08:
Starrett No-glare satin chrome finish on thimble and sleeve minimizes annoying surface glare under bright lights and resists rust
Feature 09:
Anvils sized at .250" (6.35mm) diameter.
Frame Finish:
Black Wrinkle
Graduations (mm):
0.01mm
Item Segmentation:
Catalog
Lock Nut Type:
Knurled Ring Type
Micrometer Type:
Mechanical Outside
Item ID:
S436.1MFXRLZ
Orderable Online Today (US Only):
Yes
Product Photo 01:
https://s3.us-west-2.amazonaws.com/catsy.833/S436MFRZe64462cUSp1.tif
Product Title:
S436.1MFXRLZ Outside Micrometer Set
Resolution (mm):
0.01mm
Set Range (mm):
300-600mm
Short Description:
Outside Micrometer Set, Ratchet Thimble, Carbide Anvil-Spindle, 300-600mm Range, 0.01mm
SLC Certification:
Optional Add-On
Starrett Model No.:
436.1
Thimble Graduations:
Metric
Thimble Type:
Ratchet
UOM:
Each
US List Price:
$18160.00
US Promo Price:
$0.00
US Web Price:
$18160.00
Web Catalog-US-EN:
Y
Web Priority-US-EN:
12600096
User Manual URL-US-EN:
https://www.starrett.com/um-436.1
Series Title:
436.1, 436.1M Outside Micrometers
Status:
Active
Catalog URL-US-EN:
https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Precision-Hand-Tools.pdf
Global Product Classification:
OUTSIDE MICROMETER SET, 300-600mm, 0.01mm GRADS
Manufacturer's code:
049659
Athol Inventory:
5
Case Type:
Wood Case
Flat Stock Inventory:
0
Item Class:
Stand-Alone
Max. Range (mm):
600
Min. Range (mm):
300
Mt Airy Inventory:
0
Product Group Sort:
pim_icc_num_110103
Rocky Mountain Inventory:
0
To Delete:
false
To Remove:
false
Total Inventory:
5
US Web Temp Hold:
Off
Webber Inventory:
0
Western Link Inventory:
0
Long Description:
Each
Main Image:
https://s3.us-west-2.amazonaws.com/catsy.833/S436MFRZe64462cUSp1.tif
Micrometer Sizes:
325, 350, 375, 400, 425, 450, 475, 500, 525, 550, 575 and 600mm
Product made to order status:
MTO
Schedule B Number:
9017.30.8000
Spindle Type:
Flat
Standards Included:
300, 325, 350, 375, 400, 425, 450, 475, 500, 525, 550, 575mm
Anvil/Spindle Material:
Carbide
Top 354:
N
Web Price:
$18160.00
Country of Origin:
China
Dimension Type:
Metric
Adding to cart… The item has been added

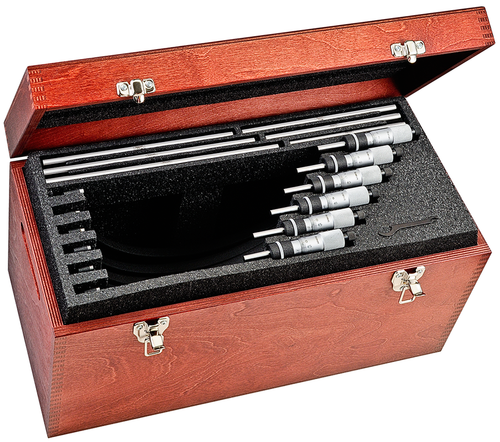

This Starrett S436.1 Outside Micrometer Set includes micrometers from 325mm through 600mm in 25mm increments, twelve standards, adjusting wrench, in case. The most popular precision micrometers used by skilled workmen worldwide. This model features 300-600mm measuring range. Combination ratchet and speeder for uniform pressure and quicker adjustment. Recommended for mechanics, automotive service and machine shops, toolrooms, inspection departments and wherever gaging involves a wide range of measurements.
