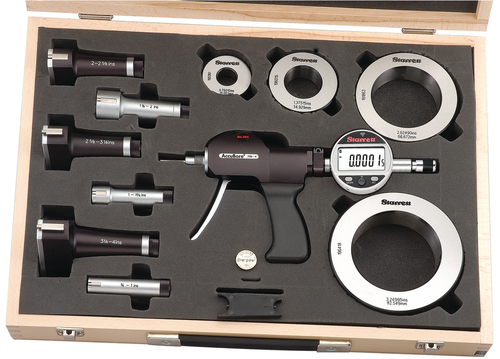

S781BXTFZ AccuBore Electronic Bore Gage Set

S781BXTFZ AccuBore Electronic Bore Gage Set

$5,616.00
(No reviews yet) Write a Review
SKU:
S781BXTFZ
UPC:
049659729948
Category:
Precision Measuring Tools > Precision Hand Tools > Bore Gages > Electronic Pistol Grip Bore Gages
Cal Prop 65 Chemical:
Lead
Cal Prop 65 Warning:
Y
Cal Prop 65 Statement:
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
Contaminated if Opened:
N
EAN:
0049659729948
EDP:
72994
Exists in Comport:
N
Feature 01:
Single-hand operation with right- and left-hand viewing flexibility
Feature 02:
Large, easy-to-read digital display with integrated LEDs tolerances
Feature 03:
Enhanced wear life with carbide-faced contacts - available from 5/16" to 8"
Feature 04:
True alignment with mechanically-driven parallel anvils
Feature 05:
Push button inch/metric conversion
Feature 06:
Preset and preset recall
Feature 07:
Hold, max/min and zeroing capabilities
Feature 08:
Blind bore measurement is standard from .50" (12.7mm) and above
Feature 09:
Wireless output capability for Statistical Process Control (SPC) analysis
Approximate Measuring Depth (in):
3-1/16 to 3-3/8"
Approximate Measuring Depth (mm):
80-85mm
Assembled in US:
N
Athol Inventory:
1
Available for Purchase-US-EN:
Y
Flat Stock Inventory:
0
Item Class:
Stand-Alone
Max. Range (in):
4
Max. Range (mm):
100
Min. Range (in):
2
Min. Range (mm):
50
Parent SKU As a Regular Field:
781BXT
Product Group Sort:
icc110601
Webber Inventory:
0
Website-URL:
https://www.starrett.com/details?cat-no=S781BXTFZ
Rocky Mountain Inventory:
0
Show in Web Nav?:
Yes
To Delete:
false
To Remove:
false
Total Inventory:
1
US Web Temp Hold:
Off
Fragile:
N
French Language Included:
N
Global Product Classification:
ELECT BT PISTOL BORE GAGE SET 2.000-4.000" RANGE
Hazmat Indicator:
N
Item Segmentation:
Catalog
Long Description:
Each
Main Image:
https://s3-us-west-2.amazonaws.com/catsy.833/S781BXTFZcUSp1.tif
Manufacturer's code:
049659
Marked Recyclable:
N
Item ID:
S781BXTFZ
Number of Heads:
3
Number of Rings:
2
PMRA Regulated:
N
Product Photo 01:
https://s3-us-west-2.amazonaws.com/catsy.833/S781BXTFZcUSp1.tif
Product Title:
S781BXTFZ AccuBore Electronic Bore Gage Set
Range (in):
2 - 4"
Range (mm):
50-100mm
Refrigerant Indicator:
N
Resolution (in):
.00005"
Resolution (mm):
0.001mm
RoHS (EU):
N
SDS Indicator:
N
Series Title:
781BXT AccuBore Electronic Bore Gages
Shelf Pack Invoiced:
N
Shelf Pack Shippable:
N
Short Description:
AccuBore Electronic Bore Gage Set, 3-Point Contact (2-4" (50-100mm) Range) and built-in Wireless
Status:
Active
A0006160MSDSINDICATOR:
N
A000670ROHASCOMPLIANT:
N
A002040UCC12UPCA:
049659729948
A002050EANUCC13EAN13:
0049659729948
Subject to Environmental Change:
N
Temperature Sensitive:
N
Top 354:
N
Unit Pack Height (in):
4.1
Unit Pack Height (mm):
99.06
Unit Pack Invoiced:
N
Unit Pack Length (in):
18.6
Unit Pack Length (mm):
469.9
Unit Pack Shippable:
N
Unit Pack Weight (kg):
7.257472
Unit Pack Weight (lbs):
16.65
Unit Pack Width (in):
15
Unit Pack Width (mm):
355.6
UOM:
Each
Use Placeholder Photo:
N
User Manual URL-US-EN:
https://www.starrett.com/um-781
US List Price:
$5616.00
US Web Price:
$5616.00
Variable Unit:
N
Web Catalog-US-EN:
Y
Web Price:
$5616.00
Web Priority-US-EN:
30400125
Electronic or Mechanical:
Electronic
01 Spec:
2 - 4"
02 Attribute:
Range (mm)
02 Spec:
50-100mm
03 Attribute:
Resolution (in)
03 Spec:
.00005"
04 Attribute:
Resolution (mm)
04 Spec:
0.001mm
05 Attribute:
Output
05 Spec:
Cabled and Wireless
06 Attribute:
Approximate Measuring Depth (in)
06 Spec:
3-1/16 to 3-3/8"
08 Attribute:
Battery Type
08 Spec:
CR2032 lithium Battery (Qty 1), Included
09 Attribute:
Number of Heads
09 Spec:
3
Discontinued:
false
Catalog URL-US-EN:
https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Precision-Hand-Tools.pdf
Current Catalog Page:
206
Catalog Section Page:
4
Catalog:
https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Precision-Hand-Tools.pdf
Catalog Section:
https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Section-06-Bore-Gages.pdf
Brochure 1:
https://s3-us-west-2.amazonaws.com/catsy.833/starrett-electronic-precision-hand-tools-bulletin-590.pdf
Western Link Inventory:
0
Unit Pack Item Qty:
1
Category L1:
Bore Gages
Category L2:
Electronic Pistol Grip Bore Gages
Current Catalog:
33
US Promo Price:
$0.00
07 Attribute:
Power supply
07 Spec:
USB/AC (power cable included)|Battery
01 Attribute:
Range (in)
Battery Type:
CR2032 lithium Battery (Qty 1), Included
Starrett Model No.:
781
Schedule B Number:
9017.30.4000
Product made to order status:
MTO
Output:
Cabled and Wireless
10 Attribute:
Number of Rings
10 Spec:
2
Available In Region:
United States|Canada
Mt Airy Inventory:
0
Orderable Online Today (US Only):
Yes
Product Type:
Bore Gage
Country of Origin:
United Kingdom
Adding to cart… The item has been added
The Starrett AccuBore is a high-quality, trigger-activated, three-point contact bore gaging system with extended range and Bluetooth Data Output. Its convenient single-hand operation provides speed and control. It features a large, easy-to-read digital display, and a mechanically-driven parallel anvil, establishing a more true alignment to the axis of the bore that provides consistent pressure, resulting in more accurate readings than models with spring-driven contacts. Speed and convenience are further enhanced by the repositionable AccuBore indicator, which may be swiveled and rotated for left, right hand or even vertical viewing. The gage also features a display with integrated LEDs tolerances that quickly indicate whether a bore measurement is within a preset tolerance window. SET, Pistol Grip, 2 - 4" (50-100mm) Range window.
