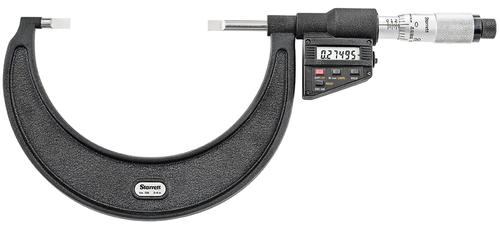

W786.1P-4 Wireless Electronic Blade-Type Micrometer

W786.1P-4 Wireless Electronic Blade-Type Micrometer

$1,321.00
(No reviews yet) Write a Review
SKU:
W786.1P-4
UPC:
049659623383
Assembled in US:
N
Athol Inventory:
0
Brochure URL-US-EN:
https://www.starrett.com/vdoc/Starrett DataSure 4.0 (Bulletin 591)
Flat Stock Inventory:
0
Item Class:
Stand-Alone
Max. Range (in):
4
Max. Range (mm):
100
Min. Range (in):
3
Min. Range (mm):
75
Parent SKU As a Regular Field:
786.1
Product Group Sort:
blade_micrometers
Webber Inventory:
0
Website-URL:
https://www.starrett.com/details?cat-no=W786.1P-4
Rocky Mountain Inventory:
0
Secondary Category:
Precision Measuring Tools > Precision Hand Tools > Wireless
To Delete:
false
To Remove:
false
Total Inventory:
0
US Web Temp Hold:
Off
Global Product Classification:
ELECTRONIC BLADE MICROMETER, WIRELESS
Long Description:
Each
Made in America:
Yes
Main Image:
https://s3-us-west-2.amazonaws.com/catsy.833/W786.1P-4e62338cUSp1.tif
Manufacturer's code:
049659
Next Catalog:
34
Other Document 1 URL-US-EN:
https://www.starrett.com/vdoc/DataSure 4.0 Whitepaper
Other Document 2 URL-US-EN:
https://www.starrett.com/vdoc/DS 4.0 at Roush Yates Engines
RoHS (EU):
N
SDS Indicator:
N
Series Title:
786.1 Electronic Digital Blade Type Micrometers
Spindle Type:
0.030" Blade
Status:
Active
Anvil/Spindle Material:
Steel
Top 354:
N
Unit Pack Invoiced:
N
Unit Pack Shippable:
N
Unit Pack Weight (lbs):
1
Use Placeholder Photo:
Y
User Manual URL-US-EN:
https://www.starrett.com/UM-W733.1
US Launch Date:
2022-07-05
Web Price:
$1321.00
Sales Category:
TOOLS.HARDWARE TOOLS (NON-DISCOUNTABLE).
Discontinued:
false
Current Catalog:
33
Current Catalog Page:
Add
Western Link Inventory:
0
brochure:
https://s3-us-west-2.amazonaws.com/catsy.833/starrett-electronic-precision-hand-tools-bulletin-590.pdf
categoryl1:
Micrometers
categoryl2:
Blade Micrometers
01 Attribute:
Micrometer Type
01 Spec:
Wireless Electronic Blade-Type Micrometers
02 Attribute:
Electronic or Mechanical
02 Spec:
Electronic
03 Attribute:
Range (in)
03 Spec:
3-4"
04 Attribute:
Range (mm)
04 Spec:
75-100mm
05 Attribute:
Resolution (in)
05 Spec:
.00005"
06 Attribute:
Resolution (mm)
06 Spec:
0.001mm
07 Attribute:
Accuracy (in)
07 Spec:
+/- .0001"
08 Attribute:
Accuracy (mm)
08 Spec:
+/- .002mm
09 Attribute:
Graduations (in)
09 Spec:
.001"
10 Attribute:
Lock Nut Type
10 Spec:
Lever
11 Attribute:
Output
11 Spec:
Wireless Only
12 Attribute:
Mechanical Graduations
12 Spec:
English
13 Attribute:
Thimble Type
13 Spec:
Speeder
14 Attribute:
Anvil/Spindle Material
14 Spec:
Steel
15 Attribute:
Anvil Type
15 Spec:
0.030" Blade
16 Attribute:
Spindle Type
16 Spec:
.030" Blade
17 Attribute:
Spindle Rotation
17 Spec:
No
18 Attribute:
Power supply
18 Spec:
USB/AC (power cable included)|Battery
A002040UCC12UPCA:
049659623383
A002050EANUCC13EAN13:
0049659623383
Accessory:
PT64036
Accuracy (in):
+/- .0001"
Accuracy (mm):
+/-.002mm
Anvil Type:
0.030" Blade
Available for Purchase-US-EN:
Y
Brochure 1:
https://s3-us-west-2.amazonaws.com/catsy.833/starrett-electronic-precision-hand-tools-bulletin-590.pdf
Cal Prop 65 Statement:
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
Case Study:
https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Datasure-4-Whitepaper-RYE.pdf
Category:
Precision Measuring Tools > Precision Hand Tools > Micrometers > Blade Micrometers
Category L1:
Micrometers
Category L2:
Blade Micrometers
EAN:
0049659623383
EDP:
62338
Electronic or Mechanical:
Electronic
Feature 01:
Wireless operating distance up to 9 meters (30 feet)
Feature 02:
Rechargeable battery port
Feature 03:
Starrett no-glare satin chrome finish on thimble and sleeve
Feature 04:
Large, easy-to-read .275 (7mm) high contrast LCD digital readout
Feature 05:
Attractive no glare black wrinkle finish on the frame
Feature 06:
Auto Off after 20 minutes of nonuse
Feature 07:
Inch/millimeter conversion on English versions
Feature 08:
Smooth friction thimble for uniform pressure
Feature 09:
Measurement HOLD button
Feature 10:
Zero at any position
Feature 11:
Retain and return to true zero reading
Feature 12:
.030 Blade Thickness
Feature 13:
Ability to install minimum and maximum limits
Feature 14:
Resolution: .00005" (0.001mm)
Feature 15:
Accuracy +/-.0001 (+/-.002mm)
Feature 16:
PRESET button to install any reading at any position
Graduations (in):
.001"
Item Segmentation:
Catalog
Lock Nut Type:
Lever
Micrometer Type:
Wireless Electronic Blade-Type Micrometers
Item ID:
W786.1P-4
Type:
Micrometer - Blade
Product Photo 01:
https://s3-us-west-2.amazonaws.com/catsy.833/W786.1P-4e62338cUSp1.tif
Product Title:
W786.1P-4 Wireless Electronic Blade-Type Micrometer
Range (in):
3-4"
Range (mm):
75-100mm
Resolution (in):
.00005"
Resolution (mm):
0.001mm
Short Description:
Wireless Blade Type Micrometer, Speeder Thimble, 0.030" Blade Anvil, .00005", 3-4" Range
Show in Web Nav?:
Yes
Spindle Rotation:
No
Starrett Model No.:
786.1
Thimble Graduations:
English
Thimble Type:
Speeder
Unit Pack Item Qty:
1
UOM:
Each
US List Price:
$1321.00
US Promo Price:
$0.00
US Web Price:
$1321.00
Web Catalog-US-EN:
Y
Web Priority-US-EN:
15000105
Battery Type:
Rechargeable
Brochure 2:
https://s3-us-west-2.amazonaws.com/catsy.833/starrett-datasure-4-0-bulletin-591.pdf
COO Detail:
Made in the USA with US and Global Content
Product made to order status:
MTO
Output:
Wireless Only
19 Attribute:
Battery Type
19 Spec:
Rechargeable
Available In Region:
United States|Canada
Mt Airy Inventory:
0
Product Type:
Micrometer
Country of Origin:
United States
The Starrett W786.1 Wireless Blade-Type Micrometer with Non-Rotating Spindle With Output is a full-featured precision measuring tool built with customary Starrett quality and workmanship. The 786 series includes a large, easy-to-read, high-contrast LCD digital readout for clear readings and a speeder for quicker adjustment on all sizes. The non-rotating spindle prevents blade from turning in narrow slots or rolling off shoulder. Its no-glare satin chrome finish minimizes annoying surface glare under bright lights indoors or filters out UV light. This product features output capability for data transmission. Starrett electronic micrometers guarantee a precise measurement at every position each and every time. 3-4" Range, .00005" Resolution Free Mobile Application To use the wireless feature, download the free Datasure Mobile application from i-Tunes (iOS) or Play Store (Android devices). Your wireless Starrett tool will communicate to your mobile device from a distance of up to 30 feet. Send the data with the click of a button or your Starrett wireless gage. It is automatically collected on your device, and can be emailed. air-dropped or texted. The datasure app also provides lots of features and functions such as digital read out (DRO), formulas, unit conversions (SAE/mm), ability to name tools (connect 5 to 8 tools depending your on device capability), name parts being measured, set min/max levels, use device as a remote display, and much more. Download the brochure or give us a call for more details!
