256MRL-25 Disc-Type Micrometer

$495.00

(No reviews yet) Write a Review

SKU:: 256MRL-25
UPC:: 049659512380
Discontinued:: false
A0006160MSDSINDICATOR:: N
A002040UCC12UPCA:: 049659512380
A002050EANUCC13EAN13:: 0049659512380
Available for Purchase-US-EN:: N
Category:: Discontinued
Category L1:: Micrometers
Category L2:: Disc Micrometers
Item Segmentation:: Catalog
NAFTA Producer:: Yes
Item ID:: 256MRL-25
Show in Web Nav?:: Yes

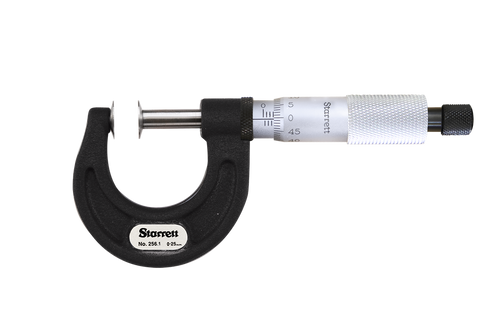

Superseded By:: 256.1MRL-25
UOM:: Each
US Promo Price:: $0.00
US Web Price:: $495.00
Web Catalog-US-EN:: Y
COO Detail:: Made in the USA with US and Global Content
Global Product Classification:: DISC MICROMETER, 0-25mm, 0.01mm GRADS
Manufacturer's code:: 049659
Assembled in US:: N
Athol Inventory:: 0
Available In Region:: United States|Canada
Cal Prop 65 Chemical:: Lead
Flat Stock Inventory:: 0
Item Class:: Stand-Alone
Mt Airy Inventory:: 0
Product Group Sort:: discontinued
Rocky Mountain Inventory:: 0
To Delete:: false
To Remove:: false
Total Inventory:: 0
US Web Temp Hold:: Off
Webber Inventory:: 0
Western Link Inventory:: 0
Long Description:: Each
Made in America:: Yes
Schedule B Number:: 9017.30.4000
Shelf Pack Item Qty:: 1
Shelf Pack Pricing Quantity:: 1
Tariff Code for entry into Mexico:: Yes
Top 354:: N
Unit Pack Height (mm):: 25.4
Unit Pack Invoiced:: N
Unit Pack Length (mm):: 134.62
Unit Pack Shippable:: N
Unit Pack Weight (kg):: 0.1814368
Unit Pack Width (mm):: 60.96
Use Placeholder Photo:: N
Web Price:: $495.00
Country of Origin:: United States
Dimensional Drawing PDF:: https://s3.us-west-2.amazonaws.com/catsy.833/Starrett-256MRL-25-Dimensional-Drawing.pdf
Dimensional Drawing (IMG):: https://s3.us-west-2.amazonaws.com/catsy.833/Starrett-256MRL-25-Dimensional-Drawing.tif
Cal Prop 65 Statement:: WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
EAN:: 0049659512380
EDP:: 51238
Feature 01:: Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
Feature 02:: Quick-reading figures - every thousandth numbered on inch tools
Feature 03:: Balanced frame and thimble design ensure easy handling and better readability
Feature 04:: Available in the 1" and 25mm sizes with rotating or non-rotating spindle
Feature 05:: Quick and easy adjustment
Feature 06:: Starrett satin chrome finish - no glare - resists rust
Feature 07:: Ring-type knurled lock nut for quick and sure locking
Feature 08:: The combination ratchet and speeder for uniform pressure and quicker adjustment on all sizes
Feature 09:: Gracefully designed tapered frame for use in narrow slots and tight places
Feature 10:: Anvil and spindle discs are 1/2" (12.7mm) diameter tapering to .015" (0.4mm) edge thickness making it possible to enter narrow grooves and recesses
Feature 11:: Rigid one-piece frame of drop forged steel
Feature 12:: Extremely hard and stable one-piece spindle
Feature 13:: Micro-lapped measuring faces
Feature 14:: This tool is accurate to .00015" or 0.003mm measuring over the whole surface and .0002" or 0.004mm measuring on the edges
Product Photo 01:: https://s3.us-west-2.amazonaws.com/catsy.833/256MRL-25e51238cUSp1.tif
Product Title:: 256MRL-25 Disc-Type Micrometer
Short Description:: Disc-Type Micrometer, Ratchet Thimble, 0-25mm Range
SLC Certification:: Optional Add-On
Unit Pack Height (in):: 0.9
Unit Pack Item Qty:: 1
Unit Pack Length (in):: 5.1
Unit Pack Width (in):: 2.2
US List Price:: $495.00
Web Priority-US-EN:: 99999999
Unit Pack Weight (lbs):: 0.5
SDS Indicator:: N
Series Title:: 256, 256M Disc Type Micrometers with Rotating and Non-Rotating Spindle
Status:: GOING DISC
Cal Prop 65 Warning:: Y
Main Image:: https://s3.us-west-2.amazonaws.com/catsy.833/256MRL-25e51238cUSp1.tif
Product made to order status:: MTO
Blades per Pack (pcs):: 1
Market:: USA/CANADA
