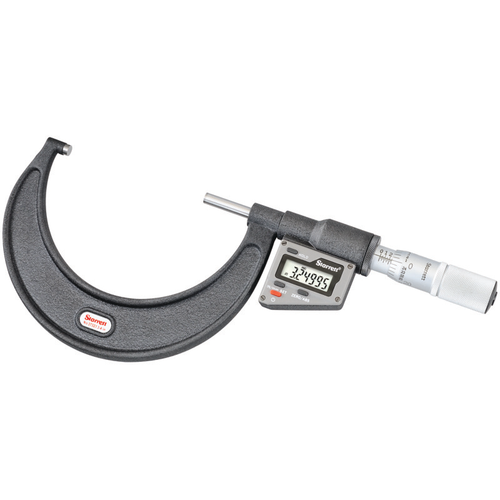

3732.1XFL-2 Inch/Metric Electronic Micrometer without Output

3732.1XFL-2 Inch/Metric Electronic Micrometer without Output

$307.00
(No reviews yet) Write a Review
SKU:
3732.1XFL-2
UPC:
049659624304
Category:
Precision Measuring Tools > Precision Hand Tools > Micrometers > Electronic Outside Micrometers
Accessory:
3206
Up-Sell:
733.1XFL-2
Available for Purchase-US-EN:
Y
In Sugar Catalog:
Yes
Item Class:
Stand-Alone
Parent SKU As a Regular Field:
3732.1
Product Group Sort:
pim_icc_num_110102
Show in Web Nav?:
Yes
To Delete:
false
To Remove:
false
Top Seller:
Yes
Total Inventory:
0
US Web Temp Hold:
Off
Item Segmentation:
Catalog
Long Description:
ELECTRONIC MICROMETER, W/O OUTPUT 1-2"
Manufacturer's code:
049659
Item ID:
3732.1XFL-2
Product made to order status:
MTO
Top 354:
N
UOM:
Each
Web Catalog-US-EN:
Y
Starrett Model No.:
3732.1
Category L1:
Micrometers
Category L2:
Electronic Outside Micrometers
Discontinued:
false
Athol Inventory:
0
Rocky Mountain Inventory:
0
Webber Inventory:
0
A002050EANUCC13EAN13:
0049659624304
US Promo Price:
$0.00
01 Attribute:
Micrometer Type
Output:
None
Available In Region:
United States|Canada
Mt Airy Inventory:
0
Country of Origin:
China
A002040UCC12UPCA:
049659624304
US Web Price:
$307.00
Western Link Inventory:
0
Web Price:
$307.00
Resolution (in):
.00005"
Resolution (mm):
0.001mm
Battery Type:
CR2032 lithium Battery (Qty 1), Included
NAFTA Producer:
No
Cal Prop 65 Chemical:
Lead
Schedule B Number:
9017.30.4000
01 Spec:
Outside
02 Attribute:
Range (in)
02 Spec:
1-2"
03 Attribute:
Range (mm)
03 Spec:
254-50.8mm
04 Attribute:
Resolution (in)
04 Spec:
.00005"
05 Attribute:
Resolution (mm)
05 Spec:
0.001mm
06 Attribute:
Accuracy (in)
06 Spec:
+/- .0001"
07 Attribute:
Accuracy (mm)
07 Spec:
+/-.003mm
08 Attribute:
Output
08 Spec:
None
09 Attribute:
Anvil Type
09 Spec:
Flat
10 Attribute:
Spindle Type
10 Spec:
Flat
11 Attribute:
Anvil/Spindle Material
11 Spec:
Carbide
12 Attribute:
Lock Nut Type
12 Spec:
Knurled Ring Type
13 Attribute:
Thimble Type
13 Spec:
Friction
14 Attribute:
Thimble Graduations
14 Spec:
English
15 Attribute:
Display Type
15 Spec:
LCD
16 Attribute:
Power supply
16 Spec:
Battery
17 Attribute:
Battery Type
17 Spec:
CR2032 lithium Battery (Qty 1), Included
18 Attribute:
SLC Certification
18 Spec:
Optional Add-On
19 Attribute:
Case Type
19 Spec:
Not included
Accuracy (in):
+/- .0001"
Accuracy (mm):
+/-.003mm
Anvil Type:
Flat
Brochure 1:
https://s3.us-west-2.amazonaws.com/catsy.833/starrett-electronic-precision-hand-tools-bulletin-590.pdf
Cal Prop 65 Statement:
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
EDP:
62430
Feature 01:
Balanced frame design for comfortable and accurate measuring
Feature 02:
Large, easy-to-read, high-contrast LCD digital readout
Feature 03:
Starrett No-glare satin chrome finish on thimble and sleeve minimizes annoying surface glare under bright lights indoors or filters out UV light
Feature 04:
No-glare black wrinkle finish on frame
Feature 05:
Hard and stable one-piece friction thimble permits one-hand operation of micrometer and uniform contact pressure
Feature 06:
Ability to zero tool at any position as well as retain and return to the true zero reading of the micrometer
Feature 07:
Ring-type knurled lock nut for quick and sure locking
Feature 08:
Micro-lapped carbide measuring faces
Feature 09:
One 3-volt battery included for extended usage
Feature 10:
Automatic OFF
Feature 11:
Measurement HOLD button
Feature 12:
Inch/millimeter metric conversion provides simple, universal, standardized unit of measurement at any position
Feature 13:
PRESET button to install any reading at any position
Feature 14:
English/Metric models have inch graduations on shell and thimble and display English units at power up
Frame Finish:
Black Wrinkle
Lock Nut Type:
Knurled Ring Type
Micrometer Type:
Outside
Product Photo 01:
https://s3.us-west-2.amazonaws.com/catsy.833/3732.1XFL-2cUSp1.tif
Product Photo 02:
https://s3.us-west-2.amazonaws.com/catsy.833/3732.1XFL-2a1oUS.tif
Product Photo 03:
https://s3.us-west-2.amazonaws.com/catsy.833/3732.1XFL-2a2oUS.tif
Product Title:
3732.1XFL-2 Inch/Metric Electronic Micrometer without Output
Product Type:
Micrometer
Range (in):
1-2"
Range (mm):
254-50.8mm
SDS Sheet:
https://s3.us-west-2.amazonaws.com/catsy.833/SDS-Renata-CR2032-ASDS.pdf
Short Description:
LCD Outside Micrometer, Friction Thimble, Carbide Anvil, .00005" Res., 1-2" Range
SLC Certification:
Optional Add-On
Thimble Graduations:
English
Thimble Type:
Friction
Unit Pack Height (in):
1.9
Unit Pack Item Qty:
1
Unit Pack Length (in):
8
Unit Pack Width (in):
4.8
US List Price:
$307.00
Web Priority-US-EN:
12200010
Unit Pack Weight (lbs):
1.45
User Manual URL-US-EN:
https://www.starrett.com/UM-3732.1
Series Title:
3732.1 Electronic Micrometers Without Output
Status:
Active
Data Sheet URL-US-EN:
https://www.starrett.com/vdoc/3732 Electronic Micrometers (Bulletin 392)
Cal Prop 65 Warning:
Y
Case Type:
Not included
Display Type:
LCD
Max. Range (in):
2
Max. Range (mm):
50.8
Min. Range (in):
1
Min. Range (mm):
254
Main Image:
https://s3.us-west-2.amazonaws.com/catsy.833/3732.1XFL-2cUSp1.tif
Spindle Type:
Flat
Anvil/Spindle Material:
Carbide
The Starrett 3732 Electronic Micrometer is a full-featured precision measuring tool built with customary Starrett quality and workmanship. The 3732 series includes a large, easy-to-read, high-contrast LCD digital readout for clear readings. With its automatic OFF functionality, smooth friction thimble for uniform pressure, and balanced frame design, Starrett products provide comfortable and accurate measuring Its no-glare satin chrome finish minimizes annoying surface glare under bright lights indoors. 1-2" (25.4-50.8 Approx mm), 0.00005" (0.001mm) Resolution.
