3732MEXFL-75 Inch/Metric Electronic Micrometer without Output

3732MEXFL-75 Inch/Metric Electronic Micrometer without Output

$454.00
(No reviews yet) Write a Review
SKU:
3732MEXFL-75
UPC:
049659122763
Discontinued:
false
01 Attribute:
Micrometer Type
A002040UCC12UPCA:
049659122763
A002050EANUCC13EAN13:
0049659122763
Accessory:
3206
Available for Purchase-US-EN:
N
Catalog Section:
https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Section-01-Micrometers.pdf
Catalog Section Page:
7
Category:
Discontinued
Category L1:
Micrometers
Category L2:
Electronic Outside Micrometers
Item Segmentation:
Catalog
NAFTA Producer:
No
Item ID:
3732MEXFL-75
Show in Web Nav?:
Yes
Starrett Model No.:
3732
Superseded By:
3732.1MEXFL-75
UOM:
Each
US Promo Price:
$0.00
US Web Price:
$454.00
Web Catalog-US-EN:
Y
Global Product Classification:
ELECTRONIC MICROMETER, W/O OUTPUT 50-75mm
Manufacturer's code:
049659
Output:
None
Athol Inventory:
0
Available In Region:
United States|Canada|New Zealand
Cal Prop 65 Chemical:
Lead
Current Catalog:
33
Current Catalog Page:
25
Flat Stock Inventory:
0
In Sugar Catalog:
Yes
Item Class:
Stand-Alone
Mt Airy Inventory:
0
Parent SKU As a Regular Field:
3732
Product Group Sort:
discontinued
Rocky Mountain Inventory:
0
Superseded By Comments:
3732 to 3732.1 migration Q2-Q4 2024
To Delete:
false
To Remove:
false
Total Inventory:
0
US Web Temp Hold:
Off
Webber Inventory:
0
Website-URL:
https://www.starrett.com/details?cat-no=3732MEXFL-75
Western Link Inventory:
0
Long Description:
Each
Product made to order status:
MTO
Published Locations:
Catalog 33
Schedule B Number:
9017.30.4000
Sales Category:
TOOLS.HARDWARE TOOLS (DISCOUNTABLE).
Tariff Code for entry into Mexico:
No
Top 354:
N
Use Placeholder Photo:
N
Web Price:
$454.00
Country of Origin:
China
Dimensional Drawing PDF:
https://s3.us-west-2.amazonaws.com/catsy.833/Starrett-3732MEXFL-75-Dimensional-Drawing.pdf
Dimensional Drawing (IMG):
https://s3.us-west-2.amazonaws.com/catsy.833/Starrett-3732MEXFL-75-Dimensional-Drawing.tif
01 Spec:
Outside
02 Attribute:
Range (mm)
02 Spec:
25-50mm
03 Attribute:
Resolution (mm)
03 Spec:
0.001mm
04 Attribute:
Accuracy (mm)
04 Spec:
+/-.003mm
05 Attribute:
SPC Output
05 Spec:
No
06 Attribute:
Wireless
06 Spec:
No
07 Attribute:
Anvil Type
07 Spec:
Flat
08 Attribute:
Spindle Type
08 Spec:
Flat
09 Attribute:
Anvil/Spindle Material
09 Spec:
Carbide
10 Attribute:
Lock Nut Type
10 Spec:
Knurled Ring Type
11 Attribute:
Thimble Type
11 Spec:
Friction
12 Attribute:
Thimble Graduations
12 Spec:
Metric
13 Attribute:
Display Type
13 Spec:
LCD
14 Attribute:
Case Type
14 Spec:
Not included
Accuracy (in):
+/-.0001"
Accuracy (mm):
+/-.003mm
Anvil Type:
Flat
Cal Prop 65 Statement:
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
Catalog:
https://s3.us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Precision-Hand-Tools.pdf
Datasheet:
https://s3.us-west-2.amazonaws.com/catsy.833/3732-electronic-micrometers-bulletin-392.pdf
EAN:
0049659122763
EDP:
12276
Electronic or Mechanical:
Electronic
Feature 01:
Balanced frame design for comfortable and accurate measuring
Feature 02:
Large, easy-to-read, high-contrast LCD digital readout
Feature 03:
Starrett No-glare satin chrome finish on thimble and sleeve minimizes annoying surface glare under bright lights indoors or filters out UV light
Feature 04:
No-glare black wrinkle finish on frame
Feature 05:
Hard and stable one-piece friction thimble permits one-hand operation of micrometer and uniform contact pressure
Feature 06:
Ability to zero tool at any position as well as retain and return to the true zero reading of the micrometer
Feature 07:
Ring-type knurled lock nut for quick and sure locking
Feature 08:
Micro-lapped carbide measuring faces
Feature 09:
One 3-volt battery included for extended usage
Feature 10:
Automatic OFF
Feature 11:
Measurement HOLD button
Feature 12:
Inch/millimeter metric conversion provides simple, universal, standardized unit of measurement at any position
Feature 13:
PRESET button to install any reading at any position
Feature 14:
Metric/English (ME) models include inch and millimeter graduations on shell and thimble
Lock Nut Type:
Knurled Ring Type
Micrometer Type:
Outside
Product Photo 01:
https://s3.us-west-2.amazonaws.com/catsy.833/3732MEXFL-75cUSp1.tif
Product Photo 02:
https://s3.us-west-2.amazonaws.com/catsy.833/3732MEXFL-75cUSp2.tif
Product Title:
3732MEXFL-75 Inch/Metric Electronic Micrometer without Output
Range (in):
1.968-2.953"
Range (mm):
50-75mm
SDS Sheet:
https://s3.us-west-2.amazonaws.com/catsy.833/SDS-Renata-CR2032-ASDS.pdf
Short Description:
LCD Outside Micrometer, Friction Thimble, Carbide Anvil, 0.001mm Res., 50-75mm Range
SLC Certification:
Optional Add-On
Thimble Graduations:
Metric
Thimble Type:
Friction
Unit Pack Height (in):
2.1
Unit Pack Item Qty:
1
Unit Pack Length (in):
12.2
Unit Pack Width (in):
7.9
US List Price:
$454.00
Web Priority-US-EN:
99999999
Unit Pack Weight (lbs):
2.7
User Manual URL-US-EN:
https://www.starrett.com/um-733.1
Series Title:
3732 Electronic Micrometers Without Output
Status:
GOING DISC
Catalog URL-US-EN:
https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Precision-Hand-Tools.pdf
Data Sheet URL-US-EN:
https://www.starrett.com/vdoc/3732 Electronic Micrometers (Bulletin 392)
Cal Prop 65 Warning:
Y
Case Type:
Not included
Display Type:
LCD
Max. Range (in):
2.953
Max. Range (mm):
75
Min. Range (in):
1.968
Min. Range (mm):
50
Main Image:
https://s3.us-west-2.amazonaws.com/catsy.833/3732MEXFL-75cUSp1.tif
Spindle Type:
Flat
Anvil/Spindle Material:
Carbide

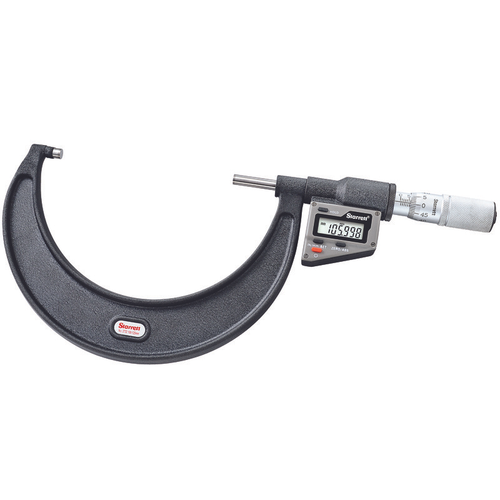

The Starrett 3732 Electronic Micrometer is a full-featured precision measuring tool built with customary Starrett quality and workmanship. The 3732 series includes a large, easy-to-read, high-contrast LCD digital readout for clear readings. With its automatic OFF functionality, smooth friction thimble for uniform pressure, and balanced frame design, Starrett products provide comfortable and accurate measuring Its no-glare satin chrome finish minimizes annoying surface glare under bright lights indoors. 50-75mm (1.968-2.953 Approx Inch), 0.001mm (0.00005") Resolution.
