3753B-8/200 Electronic Depth Gage

3753B-8/200 Electronic Depth Gage

$536.00
(No reviews yet) Write a Review
SKU:
3753B-8/200
UPC:
049659126921
Catalog:
https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Precision-Hand-Tools.pdf
Catalog URL-US-EN:
https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Precision-Hand-Tools.pdf
Category:
Precision Measuring Tools > Precision Hand Tools > Depth Gages > Electronic Depth Gages
Cal Prop 65 Warning:
N
Contaminated if Opened:
N
Current Catalog:
33
Current Catalog Page:
126
EAN:
0049659126921
EDP:
12692
Exists in Comport:
N
Feature 01:
Clear, easily-read numbers, properly sized for the tool
Feature 02:
Hardened stainless steel body and slide for long life
Feature 03:
Fine adjustment thumb roll for precision measurements
Feature 04:
Lock to hold the slide in position
Feature 05:
Hardened base is 3-15/16" (99mm) long, but optional base extensions of 7" and 12" (175 and 300mm) are available.
Feature 06:
Spacing between holes is 2-3/4" (70mm).
Feature 07:
Hook attachment, to take readings from the edge of a work piece to edges of slots, grooves, shoulders, and other I.D. length dimensioning.
Feature 08:
The removable hook has the screw permanently attached to prevent loss.
Feature 09:
One-year minimum battery life with furnished 3-volt battery, CR2033
Feature 10:
Inch/millimeter conversion
Feature 11:
Zero at any position
Feature 12:
Automatic shutoff after 30 minutes of non-use without loss of position upon reactivation
Feature 13:
Linear accuracy :+/- .001" (0.03mm)
Feature 14:
.0005" (0.010mm) resolution
Assembled in US:
N
Athol Inventory:
12
Available for Purchase-US-EN:
Y
Flat Stock Inventory:
0
In Sugar Catalog:
Yes
Item Class:
Stand-Alone
Max. Range (in):
8
Max. Range (mm):
200
Min. Range (in):
0
Min. Range (mm):
0
Parent SKU As a Regular Field:
3753
Product Group Sort:
icc110401
Webber Inventory:
0
Website-URL:
https://www.starrett.com/details?cat-no=3753B-8/200
Rocky Mountain Inventory:
0
Show in Web Nav?:
Yes
To Delete:
false
To Remove:
false
Top Seller:
Yes
Total Inventory:
12
US Web Temp Hold:
Off
Fragile:
N
French Language Included:
N
Global Product Classification:
ELECTRONIC DEPTH GAGE W/CASE, 8", W/OUTPUT
Hazmat Indicator:
N
Item Segmentation:
Catalog
Long Description:
Each
Main Image:
https://s3-us-west-2.amazonaws.com/catsy.833/3753B-8s200cUSp1.tif
Manufacturer's code:
049659
Marked Recyclable:
N
NAFTA Producer:
No
Item ID:
3753B-8/200
Type:
Depth Gage
PMRA Regulated:
N
Product made to order status:
MTA
Product Photo 01:
https://s3-us-west-2.amazonaws.com/catsy.833/3753B-8s200cUSp1.tif
Product Photo 02:
https://s3-us-west-2.amazonaws.com/catsy.833/3753B-8s200metric_cUSp1.tif
Product Photo 03:
https://s3-us-west-2.amazonaws.com/catsy.833/3753B-8s200metric_cUSp2.tif
Product Title:
3753B-8/200 Electronic Depth Gage
Range (in):
0-8"
Range (mm):
0-200mm
Refrigerant Indicator:
N
Resolution (in):
.0005"
Resolution (mm):
0.01mm
RoHS (EU):
N
SDS Indicator:
N
SDS Sheet:
https://s3-us-west-2.amazonaws.com/catsy.833/SDS-Renata-CR2032-ASDS.pdf
Series Title:
3753B Electronic Depth Gages with Output
Shelf Pack Invoiced:
N
Shelf Pack Shippable:
N
Short Description:
8" Electronic Depth Gage, .0005" Resolution, 0-8" Range, SPC Output
Status:
Active
A0006160MSDSINDICATOR:
N
A000670ROHASCOMPLIANT:
N
A002040UCC12UPCA:
049659126921
A002050EANUCC13EAN13:
0049659126921
Subject to Environmental Change:
N
Tariff Code for entry into Mexico:
No
Temperature Sensitive:
N
Top 354:
N
Unit Pack Height (in):
1.5
Unit Pack Invoiced:
N
Unit Pack Item Qty:
1
Unit Pack Length (in):
14
Unit Pack Shippable:
N
Unit Pack Weight (lbs):
1.75
Unit Pack Width (in):
6.2
UOM:
Each
Use Placeholder Photo:
N
US List Price:
$536.00
US Web Price:
$536.00
Variable Unit:
N
Web Catalog-US-EN:
Y
Web Price:
$536.00
Web Priority-US-EN:
32600040
Electronic or Mechanical:
Electronic
Sales Category:
TOOLS.TOOLS (ELECTRONIC & NON-DISCOUNTABLE).
01 Spec:
Electronic
02 Attribute:
Range (in)
02 Spec:
0-8"
03 Attribute:
Range (mm)
03 Spec:
0-200mm
04 Attribute:
Resolution (in)
04 Spec:
.0005"
05 Attribute:
Resolution (mm)
05 Spec:
0.01mm
06 Attribute:
Output
06 Spec:
Cabled Only
Discontinued:
false
Catalog Section Page:
4
Catalog Section:
https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Section-04-Depth-Gages.pdf
Brochure 1:
https://s3-us-west-2.amazonaws.com/catsy.833/starrett-electronic-precision-hand-tools-bulletin-590.pdf
Western Link Inventory:
0
Category L1:
Depth Gages
Category L2:
Electronic Depth Gages
US Promo Price:
$0.00
01 Attribute:
Electronic or Mechanical
User Manual URL-US-EN:
https://www.starrett.com/um-3753B
Accessory:
3648-180|3648-260|798SCU|PT63388|3648-320|798SCKB|PT99492|798SCM
Schedule B Number:
9017.20.8060
Output:
Cabled Only
Available In Region:
United States|Canada
Mt Airy Inventory:
0
Orderable Online Today (US Only):
Yes
Product Type:
Depth Gage
Country of Origin:
China
Adding to cart… The item has been added

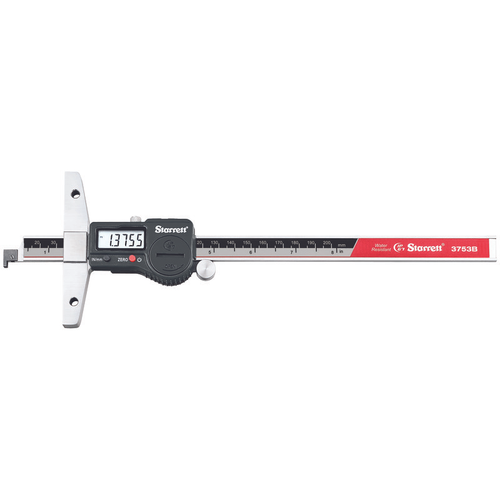

The 3753B Electronic Depth Gage is a versatile, easy-to-use tool for measuring depth, slot width, small section sizes and other applications. The gage provides an IP67 level of protection against foreign matter in a hostile shop environment and has an extra-large LCD for excellent readability. It also offers RS232 output to work with Datasure Wireless Systems as well as with cable-based products.
