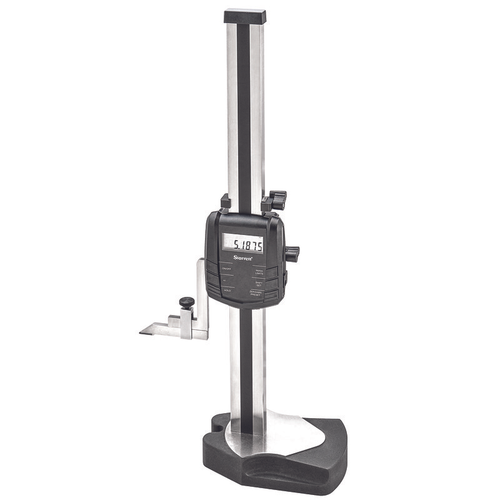

The Starrett 3754 Electronic Height Gage is a full featured, versatile and economic solution for most height measurement applications. All measuring information from these tools can be entered directly into Starrett Data Collection Systems for analysis, data collection and hard copy documentation. This model measures 0-24" (0-600mm)range. Also available in 0-12" (0-300mm) range.
3754-24/600 Electronic Height Gage
$1,482.00
- SKU:
- 3754-24/600
- UPC:
- 049659460032
- PMRA Regulated:
- N
- Product made to order status:
- MTA
- Product Photo 01:
- https://s3-us-west-2.amazonaws.com/catsy.833/3754-24s600cUSp1.tif
- Product Title:
- 3754-24/600 Electronic Height Gage
- Promo Item-US-EN:
- N
- Published Locations:
- Catalog 33
- Range (in):
- 0 - 24"
- Range (mm):
- 0 - 600mm
- Refrigerant Indicator:
- N
- Resolution (in):
- .0005"
- Resolution (mm):
- 0.01mm
- RoHS (EU):
- N
- SDS Indicator:
- N
- Series Title:
- 3754 Electronic Digital Height Gages with Output
- Shelf Pack Invoiced:
- N
- Shelf Pack Shippable:
- N
- Short Description:
- Electronic Height Gage, 0-24" Range, .0005" Res., SPC Output, with Scriber
- Status:
- Active
- Accuracy (in):
- (+/-)0.0015" for 0-18"; (+/-)0.002" for 18-24"
- Accuracy (mm):
- (+/-)0.04mm for 0-450mm; (+/-)0.05mm for 450-600mm
- Allow Testimonial:
- N
- Stocked Locally(Y/N)-US-EN:
- N
- Subject to Environmental Change:
- N
- Temperature Sensitive:
- N
- Top 354:
- N
- Unit Pack Height (in):
- 38
- Unit Pack Height (mm):
- 965.2
- Unit Pack Invoiced:
- N
- Unit Pack Item Qty:
- 1
- Unit Pack Length (in):
- 12.8
- Unit Pack Length (mm):
- 325.12
- Unit Pack Pricing Unit of Measure:
- EA
- Unit Pack Shippable:
- N
- Unit Pack Weight (kg):
- 9.07184
- Unit Pack Weight (lbs):
- 20
- Unit Pack Width (in):
- 8.5
- Unit Pack Width (mm):
- 215.9
- UOM:
- Each
- UPC:
- 049659460032
- Use Placeholder Photo:
- N
- User Manual URL-US-EN:
- https://www.starrett.com/um-3754
- US List Price:
- $1482.00
- US Web Price:
- $1482.00
- Variable Unit:
- N
- Web Catalog-ES-ES:
- Y
- Web Catalog-US-EN:
- Y
- Web Priority-ES-ES:
- 771
- Web Priority-US-EN:
- 40600010
- A0006160MSDSINDICATOR:
- N
- A000670ROHASCOMPLIANT:
- N
- A002040UCC12UPCA:
- 049659460032
- A002050EANUCC13EAN13:
- 0049659460032
- Catalog:
- https://s3-us-west-2.amazonaws.com/catsy.833/Starrett+Catalog+33+Precision+Hand+Tools.pdf
- Catalog URL:
- https://www.starrett.com/dms/flipbooks/Cat-33/index.html?page=112
- Catalog URL-US-EN:
- https://s3-us-west-2.amazonaws.com/catsy.833/Starrett+Band+Saw+Blades+Catalog+60.pdf
- Category:
- Precision Measuring Tools > Height Gages > Electronic Height Gages
- Cal Prop 65 Chemical:
- Lead
- Cal Prop 65 Warning:
- Y
- Cal Prop 65 Statement:
- WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
- Conflict Minerals:
- N
- Contaminated if Opened:
- N
- Country of Origin :
- China
- Country of Origin 2:
- United States
- Current Catalog:
- 33
- Current Catalog Page:
- 112
- Datasheet:
- https://s3-us-west-2.amazonaws.com/catsy.833/3754+Electronic+Height+Gage+Bulletin+129.pdf
- Data Sheet URL-US-EN:
- https://www.starrett.com/vdoc/3754 Electronic Height Gage (Bulletin 129)
- EAN:
- 0049659460032
- EDP:
- 46003
- Effective List Date:
- 2022-12-31
- Effective Web Date:
- 2022-07-01
- Exists in Comport:
- N
- Feature 01:
- Large (9.65mm/3/8"), easy-to-read LCD display reads to 0.01mm or .0005"
- Feature 02:
- Instant unit conversion
- Feature 03:
- Carrier and scriber designed to read from zero
- Feature 04:
- Hold control feature retains a reading at any position
- Feature 05:
- Plus or minus indication allows reading in proper direction
- Feature 06:
- Ability to set zero at any position
- Feature 07:
- Manual on/off plus a built-in automatic off after 30 minutes of non-use to conserve battery life.
- Feature 08:
- Large positive action keypad
- Feature 09:
- Ability to retain and return to the true zero reading of the height gage
- Feature 10:
- PRESET button to install any reading at any position
- Feature 11:
- Ability to install minimum and maximum limits
- Feature 12:
- RS232 data output port
- Feature 13:
- Works well with Starrett DataSure Wireless Data Collection Systems
- Feature 14:
- 1-1/2+ years battery life. Two batteries furnished (CR2032).
- Feature 15:
- The base is well-balanced, hardened, ground and lapped.
- Assembled in US:
- N
- Athol Inventory:
- 3
- Available for Purchase-US-EN:
- Y
- Available In Region :
- United States|Canada
- Brochure:
- https://s3-us-west-2.amazonaws.com/catsy.833/Catalog+33+Section++3+-+Height+Gages.pdf
- Brochure 2:
- https://s3-us-west-2.amazonaws.com/catsy.833/starrett-electronic-precision-hand-tools-bulletin-590.pdf
- CAN List Price:
- CA$1873.00
- CAN Price List Name:
- 133W - 2021
- Combined Dollar Sales:
- 331539.79
- Combined Unit Sales :
- 382
- Description:
- The Starrett 3754 Electronic Height Gage is a full featured, versatile and economic solution for
- In Sugar Catalog:
- Yes
- Item Class:
- Stand-Alone
- Max. Range (in):
- 24
- Max. Range (mm):
- 600
- Min. Range (in):
- 0
- Min. Range (mm):
- 0
- ORS Part Numbers :
- 681-46003
- Parent SKU As a Regular Field:
- 3754
- Product Group Sort:
- icc110301
- Website-URL:
- https://www.starrett.com/details?cat-no=3754-24/600
- Show in Web Nav?:
- Yes
- Top Seller:
- Yes
- Total Inventory:
- 3
- Unit Sales 2020:
- 120
- Unit Sales 2021:
- 161
- Unit Sales 2022:
- 101
- US Price List Name:
- 133W - 2021
- US Web Temp Hold:
- Off
- Web Price:
- $1482.00
- Fragile:
- N
- French Language Included:
- N
- Hazmat Indicator:
- N
- ICC:
- 110301 Electronic Height Gages
- Item Discount Code:
- B
- Item Segmentation:
- Catalog
- Long Description:
- ELECTRONIC HEIGHT GAGE, W/OUTPUT, 0-24"/600mm
- Main Image:
- https://s3-us-west-2.amazonaws.com/catsy.833/3754-24s600cUSp1.tif
- Manufacturer's code:
- 049659
- Marked Recyclable:
- N
- Marked Returnable:
- N
- Master Pack Invoiced:
- N
- Master Pack Shippable:
- N
- META-DESCRIPTION:
- Starrett 24" Electronic Height Gage
- META-TITLE:
- 3754 Starrett Height Gage
- NAFTA Producer:
- No
- Name:
- ELECTRONIC HEIGHT GAGE, W/OUTPUT, 0-24"/600mm
- Item ID:
- 3754-24/600
- Electronic or Mechanical:
- Electronic
- Category L1:
- Height Gages
- Category L2:
- Electronic Height Gages
- Sales Category:
- TOOLS.TOOLS (ELECTRONIC & NON-DISCOUNTABLE).
- Flat Stock Inventory:
- 0
- Mt Airy Inventory :
- 0
- Rocky Mountain Inventory:
- 0
- US Next List Price:
- $1482.00
- IBC Category 1:
- Testing, Measuring and Inspection
- IBC Category 2:
- Height Measurement Tools
- IBC Category 3:
- Electronic Height Gages
- Product Photo 02:
- https://s3-us-west-2.amazonaws.com/catsy.833/3754-24s600cUSp2.tif
- To Delete:
- false
- To Remove:
- false
- Dollar Sales 2023:
- $118797.64
- Unit Sales 2023:
- 126
- Webber Inventory:
- 0
- Minimum Order Quantity:
- 0
- Discontinued:
- false
- 01 Attribute :
- Range (in)
- 01 Spec:
- 0 - 24"
- 02 Attribute:
- Range (mm)
- 02 Spec:
- 0 - 600mm
- 03 Attribute:
- Accuracy (in)
- 03 Spec:
- (+/-)0.0015" for 0-18"; (+/-)0.002" for 18-24"
- 04 Attribute:
- Accuracy (mm)
- 04 Spec:
- (+/-)0.04mm for 0-450mm; (+/-)0.05mm for 450-600mm
- 05 Attribute:
- Resolution (in)
- 05 Spec:
- .0005"
- 06 Attribute:
- Resolution (mm)
- 06 Spec:
- 0.01mm
- Orderable Online Today (US Only):
- Yes
