3840B Micro Vickers Hardness Tester with Digicam - Auto Software

3840B Micro Vickers Hardness Tester with Digicam - Auto Software

$15,767.00
(No reviews yet) Write a Review
SKU:
3840B
UPC:
049659020526
Category:
Precision Measuring Tools > Hardness Testers > Benchtop Hardness Testers
Cal Prop 65 Warning:
N
Conflict Minerals:
N
Contaminated if Opened:
N
Country of Origin :
China
Datasheet:
https://s3-us-west-2.amazonaws.com/catsy.833/3840-hardness-tester-bulletin-1837.pdf
Data Sheet URL-US-EN:
https://www.starrett.com/vdoc/3840 Hardness Tester (Bulletin 1837)
EAN:
0049659020526
EDP:
02052
Exists in Comport:
N
Feature 01:
Includes Video cam, adapter and Auto- Measurement software.
Feature 02:
Technical Features:
Feature 03:
Testing Range: 1HV~2967HV
Feature 04:
Test Force: 0.098N (10g), 0.246N (25g), 0.49N (50g), 0.98N (100g), 1.96N (200g), 4.90N (500g), 9.80N (1000g)
Feature 05:
Max Height of the Specimen: 70mm
Feature 06:
Max Distance from the Indenter Center to the Instrument Panel: 95mm
Feature 07:
Lens/indenters with: With Hand Turret
Feature 08:
Carriage Control: Automatic (loading /holding-up of the load/unloading)
Feature 09:
Amplification of the microscope: 100,40
Feature 10:
Dwell Time of the Test Force: (5-60)S
Feature 11:
Min. Graduation Value of the Testing Drum Wheel: 0.25um
Feature 12:
Dimension of the XY Table: 100 X 100mm
Feature 13:
Movement Field of the XY Table: 25 X 25mm
Feature 14:
Light source/Power Supply: 110/ 220V,60/50Hz/Cold Light Source
Feature 15:
Weight/Gross Weight:41.5kg Net Weight: 35kg
Feature 16:
Package Dimensions: 425-245-490mm
Athol Inventory:
0
Available for Purchase-US-EN:
Y
Available In Region :
United States|Canada
Brochure URL-US-EN:
https://www.starrett.com/vdoc/Starrett Hardness Testers (Bulletin 592)
Description:
The 3840B Micro Vickers hardness tester is a precise testing system suitable for hardness analysis of metallic specimens
Flat Stock Inventory:
0
In Sugar Catalog:
Yes
Item Class:
Stand-Alone
Mt Airy Inventory :
0
Product Group Sort:
benchtop_hardness_testers
Webber Inventory:
0
Website-URL:
https://www.starrett.com/details?cat-no=3840B
Rocky Mountain Inventory:
0
Show in Web Nav?:
Yes
To Delete:
false
To Remove:
false
Top Seller:
Yes
Total Inventory:
0
US Web Temp Hold:
Off
Fragile:
N
French Language Included:
N
Global Product Classification:
MICRO VICKERS HARDNESS TESTER WITH DIGICAM - AUTO SOFTWARE
Hazmat Indicator:
N
Item Segmentation:
Catalog
Long Description:
Each
Main Image:
https://s3-us-west-2.amazonaws.com/catsy.833/3840Be02052cUSp1.tif
Manufacturer's code:
049659
Marked Recyclable:
N
Maximum Test Height:
2.8" (70mm)
Name:
MICRO VICKERS HARDNESS TESTER WITH DIGICAM - AUTO SOFTWARE
Item ID:
3840B
PMRA Regulated:
N
Product Photo 01:
https://s3-us-west-2.amazonaws.com/catsy.833/3840Be02052cUSp1.tif
Product Title:
3840B Micro Vickers Hardness Tester with Digicam - Auto Software
Promo Item-US-EN:
N
Refrigerant Indicator:
N
Results Display:
Digital
RoHS (EU):
N
SDS Indicator:
N
Series Title:
3800 Hardness Testers
Shelf Pack Invoiced:
N
Shelf Pack Shippable:
N
Short Description:
Micro Vickers Hardness Tester With Digicam - Auto Software
Status:
Active
A0006160MSDSINDICATOR:
N
A000670ROHASCOMPLIANT:
N
A002040UCC12UPCA:
049659020526
A002050EANUCC13EAN13:
0049659020526
Allow Testimonial:
N
Stocked Locally(Y/N)-US-EN:
N
Subject to Environmental Change:
N
Temperature Sensitive:
N
Top 354:
N
Unit Height/Width/Depth:
17 x 10 x 20” (430mm x 254mm x 510mm)
Unit Pack Height (in):
48
Unit Pack Invoiced:
N
Unit Pack Length (in):
40
Unit Pack Shippable:
N
Unit Pack Weight (lbs):
155
Unit Pack Width (in):
40
Unit Weight:
80lbs Net / 155lbs Shipping
UOM:
Each
UPC:
049659020526
Use Placeholder Photo:
N
User Manual URL-US-EN:
https://www.starrett.com/UM-3840
US List Price:
$15767.00
US Next List Price:
$15767.00
US Web Price:
$15767.00
Variable Unit:
N
Web Catalog-US-EN:
Y
Web Price:
$15767.00
Web Priority-US-EN:
41800060
Hardness Scale:
Micro Vickers
Electronic or Mechanical:
Electronic
Category L1:
Hardness Testers
Category L2:
Benchtop
Sales Category:
TOOLS.TOOLS (ELECTRONIC & NON-DISCOUNTABLE).
01 Attribute :
Maximum Test Height
01 Spec:
2.8" (70mm)
02 Attribute:
Results Display
02 Spec:
Digital
03 Attribute:
Unit Height/Width/Depth
03 Spec:
17 x 10 x 20” (430mm x 254mm x 510mm)
04 Attribute:
Unit Weight
04 Spec:
80lbs Net / 155lbs Shipping
05 Attribute:
Hardness Scale
05 Spec:
Micro Vickers
Discontinued:
false
Current Catalog:
33
Current Catalog Page:
add
Brochure 1:
https://s3-us-west-2.amazonaws.com/catsy.833/starrett-hardness-testers-bulletin-592.pdf
Western Link Inventory:
0
Unit Pack Item Qty:
1

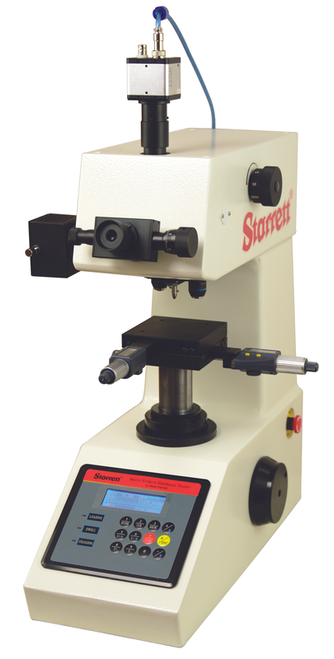

The 3840B Micro Vickers hardness tester is a precise testing system suitable for hardness analysis of metallic specimens in metallography laboratories or production environments. The Starrett micro-vickers hardness testers are versatile and user-friendly systems, designed for the accurate hardness testing of small precision parts, thin materials, coatings, wires and case depth determinations. The Starrett 3840B micro-vickers hardness testers include Video Cam, Adapter, USB Output Cable and Automatic Measurement software giving you the capabilities of machines that cost thousands more. The 3840B Micro Vickers hardness tester covesr the load range from 10g to 1kg.
