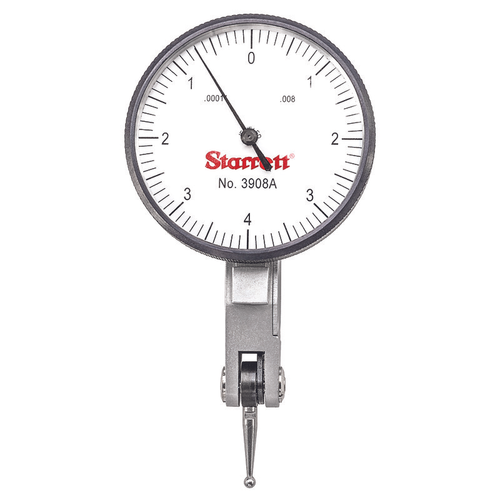

3908A Dial Test Indicator with Dovetail Mount

3908A Dial Test Indicator with Dovetail Mount

$240.00
(No reviews yet) Write a Review
SKU:
3908A
UPC:
049659124880
Category:
Precision Measuring Tools > Precision Hand Tools > Indicators & Gages > Test Indicators
Cal Prop 65 Warning:
N
Contact Ball Material:
Steel
Contact Point Ball Diameter (in):
.078" (2mm)
Contact Point Ball Diameter (mm):
2mm (.078")
Contact Point Length (in):
5/32"
Contact Point Length (mm):
4mm
Country of Origin :
China
Dial Color:
White
Dial Reading:
0-4-0
EAN:
0049659124880
EDP:
12488
Feature 01:
Three dovetail positioning mounts work with most existing test indicator accessories
Feature 02:
Precision gear-driven design with smooth, jeweled movement
Feature 03:
Contact point reverses automatically, always maintaining clockwise hand rotation
Feature 04:
Contacts are frictionally adjustable and replaceable
Feature 05:
Meets or exceeds ANSI/ASME accuracy specifications
Feature 06:
High contrast, easy-to-read dials with a white background on inch reading and a yellow background on millimeter reading indicators
Feature 07:
Narrow body for in reach ability
Feature 08:
Satin chrome finish for durability
Assembled in US:
N
Athol Inventory:
0
Attachments:
.156" contact point, 3/8" & 5/32" dovetail clamps & case
Available for Purchase-US-EN:
Y
Available In Region :
United States|Canada
Description:
DIAL TEST INDICATOR, 0-4-0, 1-9/16" DIAM.
Flat Stock Inventory:
0
Item Class:
Stand-Alone
Max. Range (in):
0.008
Min. Range (in):
0
Mt Airy Inventory :
0
Parent SKU As a Regular Field:
3800, 3900
Product Group Sort:
icc110501
Webber Inventory:
0
Website-URL:
https://www.starrett.com/details?cat-no=3908A
Rocky Mountain Inventory:
0
Show in Web Nav?:
Yes
To Delete:
false
To Remove:
false
Total Inventory:
0
US Web Temp Hold:
Off
Global Product Classification:
DIAL TEST INDICATOR, 0-4-0, 1-9/16" DIAM.
Graduations (in):
.0001"
Item Segmentation:
Catalog
Long Description:
Each
Main Image:
https://s3-us-west-2.amazonaws.com/catsy.833/3908AcUSp2.tif
Manufacturer's code:
049659
NAFTA Producer:
No
Name:
DIAL TEST INDICATOR, 0-4-0, 1-9/16" DIAM.
Item ID:
3908A
Product Photo 01:
https://s3-us-west-2.amazonaws.com/catsy.833/3908AcUSp2.tif
Product Photo 02:
https://s3-us-west-2.amazonaws.com/catsy.833/3908AcUSp3.tif
Product Photo 03:
https://s3-us-west-2.amazonaws.com/catsy.833/3908AcUSp1.tif
Product Title:
3908A Dial Test Indicator with Dovetail Mount
Range (in):
.008"
Series Title:
3808, 3809, 3908, 3909 Dial Test Indicators with Dovetail Mounts
Short Description:
Dial Test Indicator with Dovetail, .008" Range, 0-4-0 1-9/16" Dial Face, .0001" Graduations, Two Dovetail Clamps, Case
Status:
Active
A002040UCC12UPCA:
049659124880
A002050EANUCC13EAN13:
0049659124880
Style:
Dovetail Mount (Imported)
Tariff Code for entry into Mexico:
No
Top 354:
N
Unit Pack Height (in):
1.75
Unit Pack Invoiced:
N
Unit Pack Item Qty:
1
Unit Pack Length (in):
6
Unit Pack Shippable:
N
Unit Pack Weight (lbs):
0.5
Unit Pack Width (in):
4
UOM:
Each
UPC:
049659124880
Use Placeholder Photo:
N
US List Price:
$240.00
US Next List Price:
$240.00
US Web Price:
$240.00
Web Catalog-US-EN:
Y
Web Price:
$240.00
Web Priority-US-EN:
21600465
Electronic or Mechanical:
Mechanical
Starrett Model No.:
3908
Dial Diameter (In):
1-9/16"
Category L1:
Indicators & Gages
Category L2:
Test Indicators
01 Attribute :
Range (in)
01 Spec:
.008"
02 Attribute:
Graduations (in)
02 Spec:
.0001"
03 Attribute:
Dial Reading
03 Spec:
0-4-0
04 Attribute:
Attachments
04 Spec:
.156" contact point, 3/8" & 5/32" dovetail clamps & case
05 Attribute:
Contact Ball Material
05 Spec:
Steel
06 Attribute:
Contact Point Ball Diameter (in)
06 Spec:
.078" (2mm)
07 Attribute:
Contact Point Ball Diameter (mm)
07 Spec:
2mm (.078")
08 Attribute:
Contact Point Length (in)
08 Spec:
5/32"
09 Attribute:
Contact Point Length (mm)
09 Spec:
4mm
10 Attribute:
Style
10 Spec:
Dovetail Mount (Imported)
11 Attribute:
Dial Color
11 Spec:
White
12 Attribute:
Dial Diameter (In)
12 Spec:
1-9/16"
Discontinued:
false
Catalog URL-US-EN:
https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Precision-Hand-Tools.pdf
Current Catalog Page:
140
Catalog Section Page:
8
Catalog:
https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Precision-Hand-Tools.pdf
Catalog Section:
https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Section-05-Dial-and-Electronic-Indicators-and-Gages.pdf
SLC Certification:
Optional Add-On
Western Link Inventory:
0
The Starrett 3908 precise, high quality test indicator offers a full complement of standard features. Indicator includes two dovetail clamps and case.
