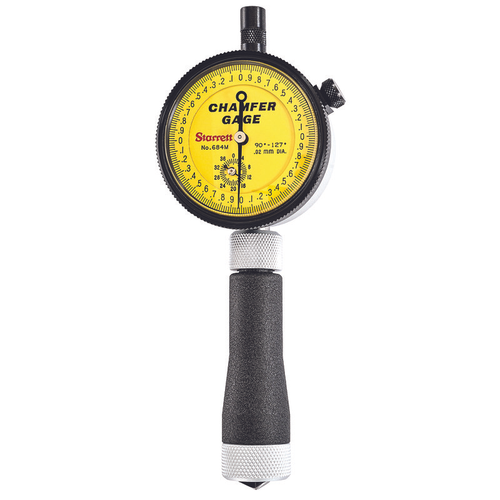

These gages directly measure the diameter of chamfered holes. No setting master is necessary. When the three-blade plunger is pressed against a fl at surface, the gage should read the set number stamped on the back of the indicator. In case of wear, the gage may be adjusted to read the proper number. 0-12.7mm Range In case of wear, the gage may be adjusted to read the proper number.
684M-2Z Metric Internal Chamfer Gage
$600.00
- SKU:
- 684M-2Z
- UPC:
- 049659649949
- POA Flag:
- N
- Product Photo 01:
- https://s3-us-west-2.amazonaws.com/catsy.833/684M-2ZcUSp1.tif
- Product Title:
- 684M-2Z Metric Internal Chamfer Gage
- Range (mm):
- 0 - 12.7mm
- Series Title:
- 684, 684M Internal Chamfer Gages, 90-127 Deg
- Shelf Pack Item Qty:
- 1
- Shelf Pack Pricing Quantity:
- 1
- Short Description:
- Millimeter Reading Dial Indicator Internal Chamfer Gage, 0-12.7mm Range, 90-127 Angle
- Special Function Dial Gage Type:
- Chamfer Gage
- Status:
- Active
