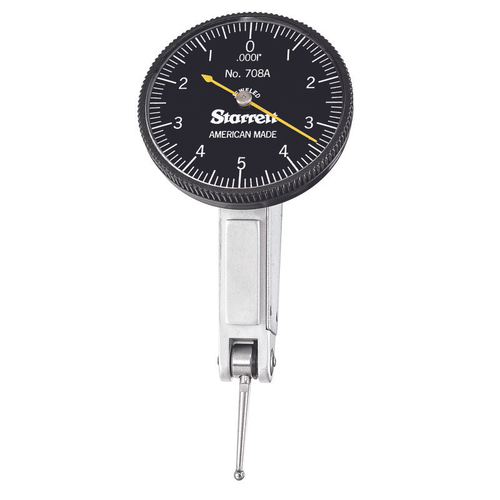

The Starrett 708 Dial Test Indicator with Dovetail Mount offers an easy to read angled head and the flexibility of three dovetail mounts.
708AZ Dial Test Indicator with SLC
$521.00
- SKU:
- 708AZ W/SLC
- UPC:
- 049659668667
- Category:
- Precision Measuring Tools > Precision Hand Tools > Indicators & Gages > Test Indicators
- Cal Prop 65 Chemical:
- Lead
- Cal Prop 65 Warning:
- Y
- Cal Prop 65 Statement:
- WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
- Contact Ball Material:
- Carbide
- Contact Point Ball Diameter (in):
- .078" (2mm)
- Contact Point Ball Diameter (mm):
- 2mm (.078")
- Contact Point Length (in):
- 13/16"
- Contact Point Length (mm):
- 20mm
- Dial Color:
- White
- Dial Reading:
- 0-5-0
- EAN:
- 0049659668667
- EDP:
- 66866
- Feature 01:
- Angled head for better reading position
- Feature 02:
- Three dovetail positioning moutns work with existing test indicator accessories
- Feature 03:
- Large 1-3/8" (35mm) dial diameter
- Feature 04:
- Precision gear-driven design with smooth, jeweled movement
- Feature 05:
- Available with easy-to-read, white dial
- Feature 06:
- Narrow body for inreach ability
- Feature 07:
- Contact point reverses automatically, always maintaining clockwise hand rotation
- Feature 08:
- Satin chrome finish for durability
- Feature 09:
- Contacts are frictionally adjustable and replaceable
- Feature 10:
- .0001" graduation, .010" range, 0-5-0 dial reading and carbide contact point of 13/16" (20mm) length and .078" (2mm) ball diameter, with attachments.
- Feature 11:
- Narrow body for inreach ability
- Feature 12:
- Satin chrome finish for durability
- Feature 13:
- Large 1-3/8" (35mm) dial diameter
- Feature 14:
- Include long carbide contacts 13/16" (20mm)
- Athol Inventory:
- 2
- Attachments:
- Without Attachments
- Available for Purchase-US-EN:
- Y
- Flat Stock Inventory:
- 0
- Item Class:
- Stand-Alone
- Max. Range (in):
- 0.01
- Min. Range (in):
- 0
- Parent SKU As a Regular Field:
- 708
- Product Group Sort:
- icc110501
- Webber Inventory:
- 0
- Website-URL:
- https://www.starrett.com/details?cat-no=708AZ W/SLC
- Rocky Mountain Inventory:
- 0
- Show in Web Nav?:
- Yes
- SLC Certification:
- Included
- To Delete:
- false
- To Remove:
- false
- Total Inventory:
- 2
- US Web Temp Hold:
- Off
- Global Product Classification:
- DIAL TEST INDICATOR WITH STANDARD LETTER OF CERTIFICATION, .010" RANGE
- Graduations (in):
- .0001"
- Item Segmentation:
- Catalog
- Long Description:
- Each
- Made in America:
- Yes
- Main Image:
- https://s3-us-west-2.amazonaws.com/catsy.833/708AZcUSp1.tif
- Manufacturer's code:
- 049659
- NAFTA Producer:
- Yes
- Item ID:
- 708AZ W/SLC
- POA Flag:
- N
- Product Photo 01:
- https://s3-us-west-2.amazonaws.com/catsy.833/708AZcUSp1.tif
- Product Photo 02:
- https://s3-us-west-2.amazonaws.com/catsy.833/708AZcUSp2.tif
- Product Title:
- 708AZ Dial Test Indicator with SLC
- Range (in):
- .010"
- Series Title:

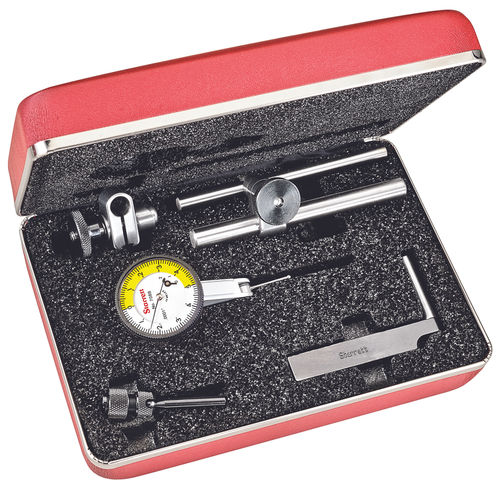

- 708, 708M, 709, 709M Dial Test Indicators with Dovetail Mounts with Case
- Short Description:
- Dial Test Indicator with Dovetail, .010" Range, 0-5-0 Dial Face, .0001" Graduations, Case, SLC
- Status:
- Active
- A002040UCC12UPCA:
- 049659668667
- A002050EANUCC13EAN13:
- 0049659668667
- Style:
- Dovetail Mount
- Tariff Code for entry into Mexico:
- Yes
- Top 354:
- N
- Unit Pack Height (in):
- 2.3
- Unit Pack Height (mm):
- 58.42
- Unit Pack Item Qty:
- 1
- Unit Pack Length (in):
- 7.6
- Unit Pack Length (mm):
- 193.04
- Unit Pack Weight (kg):
- 0.4989512
- Unit Pack Weight (lbs):
- 1.1
- Unit Pack Width (in):
- 5.3
- Unit Pack Width (mm):
- 134.62
- UOM:
- Each
- US List Price:
- $521.00
- US Web Price:
- $521.00
- Web Catalog-US-EN:
- Y
- Web Price:
- $521.00
- Web Priority-US-EN:
- 21600035
- Electronic or Mechanical:
- Mechanical
- Starrett Model No.:
- 708
- Dial Diameter (In):
- 1-3/8"
- 01 Spec:
- .010"
- 02 Attribute:
- Graduations (in)
- 02 Spec:
- .0001"
- 03 Attribute:
- Dial Reading
- 03 Spec:
- 0-5-0
- 04 Attribute:
- Attachments
- 04 Spec:
- Without Attachments
- 05 Attribute:
- Contact Ball Material
- 05 Spec:
- Carbide
- 06 Attribute:
- Contact Point Ball Diameter (in)
- 06 Spec:
- .078" (2mm)
- 07 Attribute:
- Contact Point Ball Diameter (mm)
- 07 Spec:
- 2mm (.078")
- 08 Attribute:
- Contact Point Length (in)
- 08 Spec:
- 13/16"
- 09 Attribute:
- Contact Point Length (mm)
- 09 Spec:
- 20mm
- 10 Attribute:
- Style
- 10 Spec:
- Dovetail Mount
- 11 Attribute:
- Dial Color
- 11 Spec:
- White
- 12 Attribute:
- Dial Diameter (In)
- 12 Spec:
- 1-3/8"
- 13 Attribute:
- SLC Certification
- 13 Spec:
- Included
- Dimensional Drawing PDF:
- https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-708AZ-Dimensional-Drawing.pdf
- Dimensional Drawing (IMG):
- https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-708AZ-Dimensional-Drawing.tif
- Discontinued:
- false
- Catalog URL-US-EN:
- https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Precision-Hand-Tools.pdf
- Current Catalog Page:
- 135
- Catalog Section Page:
- 3
- Catalog:
- https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Precision-Hand-Tools.pdf
- Catalog Section:
- https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Section-05-Dial-and-Electronic-Indicators-and-Gages.pdf
- Western Link Inventory:
- 0
- Category L1:
- Indicators & Gages
- Category L2:
- Test Indicators
- Current Catalog:
- 33
- US Promo Price:
- $0.00
- 01 Attribute:
- Range (in)
- COO Detail:
- Made in the USA with US and Global Content
- Schedule B Number:
- 9017.30.8000
- Product made to order status:
- MTO
- Available In Region:
- United States|Canada
- Mt Airy Inventory:
- 0
- Orderable Online Today (US Only):
- Yes
- Product Type:
- Test Indicator
- Country of Origin:
- United States
