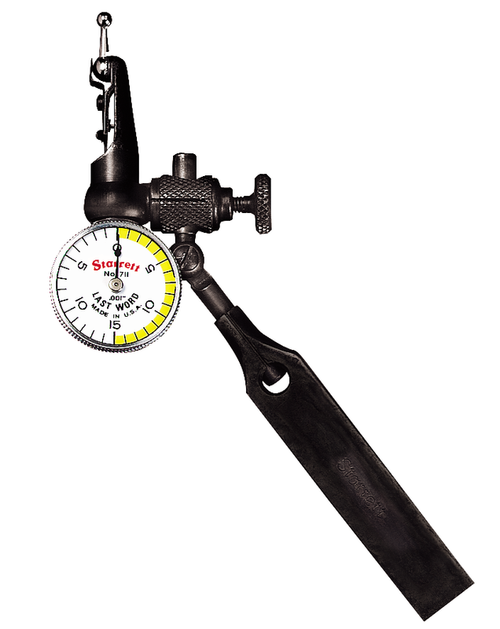

711FSAZ Last Word Dial Test Indicator

711FSAZ Last Word Dial Test Indicator

$273.00
(No reviews yet) Write a Review
SKU:
711FSAZ
UPC:
049659529258
Category:
Precision Measuring Tools > Precision Hand Tools > Indicators & Gages > Test Indicators
Cal Prop 65 Chemical:
Lead
Cal Prop 65 Warning:
Y
Cal Prop 65 Statement:
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
Contact Ball Material:
Steel
Contact Point Ball Diameter (in):
One: .120" (3mm)
Contact Point Ball Diameter (mm):
One: 3mm (.120")
Contact Point Length (in):
5/32"
Contact Point Length (mm):
4mm
Country of Origin :
United States
Dial Color:
White Half Shaded
Dial Reading:
0-15-0
EAN:
0049659529258
EDP:
52925
Feature 01:
Indicators are furnished with one interchangeable steel contact point, PT07087
Feature 02:
The venerable Last Word Dial Test Indicator is among the most versatile available
Feature 03:
Their small size and variety of attachments will handle all jobs with ease and accuracy
Feature 04:
A very useful feature is the shaded dial - when used with a mirror, in a jig bore application, the operator will always know the correct reading
Feature 05:
Ideal for precise measurements in all machining, layout, and inspection work
Feature 06:
Variety of attachments available to suit the application
Feature 07:
Easy reading dials, half yellow for clarity
Feature 08:
Hard chrome-plated ratchet contact point
Feature 09:
Smooth, jeweled lever action
Feature 10:
Swiveling tubular body
Feature 11:
Positive reversing switch
Feature 12:
Indicator with Universal Shank Complete with Long and Short Arm, Body Clamp
Athol Inventory:
12
Attachments:
Indicator with Universal Shank Complete with Long and Short Arm, Body Clamp
Available for Purchase-US-EN:
Y
Available In Region :
United States|Canada
Description:
DIAL TEST INDICATOR SET, 0-15-0, .001" GRAD
Flat Stock Inventory:
0
Item Class:
Stand-Alone
Max. Range (in):
0.03
Min. Range (in):
0
Mt Airy Inventory :
0
Parent SKU As a Regular Field:
711
Product Group Sort:
icc110501
Webber Inventory:
0
Website-URL:
https://www.starrett.com/details?cat-no=711FSAZ
Rocky Mountain Inventory:
0
Show in Web Nav?:
Yes
To Delete:
false
To Remove:
false
Total Inventory:
12
US Web Temp Hold:
Off
Global Product Classification:
DIAL TEST INDICATOR SET, 0-15-0, .001" GRAD
Graduations (in):
.001"
Item Segmentation:
Catalog
Long Description:
Each
Made in America:
Yes
Main Image:
https://s3-us-west-2.amazonaws.com/catsy.833/711FSAZcUSp1.tif
Manufacturer's code:
049659
NAFTA Producer:
Yes
Name:
DIAL TEST INDICATOR SET, 0-15-0, .001" GRAD
Item ID:
711FSAZ
POA Flag:
N
Product Photo 01:
https://s3-us-west-2.amazonaws.com/catsy.833/711FSAZcUSp1.tif
Product Photo 02:
https://s3-us-west-2.amazonaws.com/catsy.833/711FSAZcUSp2.tif
Product Title:
711FSAZ Last Word Dial Test Indicator
Range (in):
.030"
SDS Indicator:
N
Series Title:
711 Last Word Test Indicators with Cases
Shelf Pack Item Qty:
1
Shelf Pack Pricing Quantity:
1
Short Description:
Last Word Dial Test Indicator, .030" Range, 0-15-0 Dial Face, .001" Graduations
Status:
Active
A0006160MSDSINDICATOR:
N
A002040UCC12UPCA:
049659529258
A002050EANUCC13EAN13:
0049659529258
Style:
Last Word®
Tariff Code for entry into Mexico:
Yes
Top 354:
N
Unit Pack Height (in):
1.6
Unit Pack Height (mm):
38.1
Unit Pack Item Qty:
1
Unit Pack Length (in):
7.4
Unit Pack Length (mm):
167.64
Unit Pack Weight (kg):
0.3175144
Unit Pack Weight (lbs):
0.7
Unit Pack Width (in):
3.7
Unit Pack Width (mm):
91.44
UOM:
Each
UPC:
049659529258
Use Placeholder Photo:
N
US List Price:
$273.00
US Next List Price:
$273.00
US Web Price:
$273.00
Web Catalog-US-EN:
Y
Web Price:
$273.00
Web Priority-US-EN:
21600265
Electronic or Mechanical:
Mechanical
Starrett Model No.:
711
Dial Diameter (In):
1"
Category L1:
Indicators & Gages
Category L2:
Test Indicators
01 Attribute :
Range (in)
01 Spec:
.030"
02 Attribute:
Graduations (in)
02 Spec:
.001"
03 Attribute:
Dial Reading
03 Spec:
0-15-0
04 Attribute:
Attachments
04 Spec:
Indicator with Universal Shank Complete with Long and Short Arm, Body Clamp
05 Attribute:
Contact Ball Material
05 Spec:
Steel
06 Attribute:
Contact Point Ball Diameter (in)
06 Spec:
One: .120" (3mm)
07 Attribute:
Contact Point Ball Diameter (mm)
07 Spec:
One: 3mm (.120")
08 Attribute:
Contact Point Length (in)
08 Spec:
5/32"
09 Attribute:
Contact Point Length (mm)
09 Spec:
4mm
10 Attribute:
Style
10 Spec:
Last Word®
11 Attribute:
Dial Color
11 Spec:
White Half Shaded
12 Attribute:
Dial Diameter (In)
12 Spec:
1"
Discontinued:
false
Orderable Online Today (US Only):
Yes
Catalog URL-US-EN:
https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Precision-Hand-Tools.pdf
Current Catalog Page:
138
Catalog Section Page:
6
Catalog:
https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Precision-Hand-Tools.pdf
Catalog Section:
https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Section-05-Dial-and-Electronic-Indicators-and-Gages.pdf
SLC Certification:
Optional Add-On
Western Link Inventory:
0
Adding to cart… The item has been added
The Starrett 711 Last Word Dial Test Indicator is among the most versatile available. Their small size and variety of attachments will handle all jobs with ease and accuracy. A very useful feature is the shaded dial - when used with a mirror, such as in a jig bore application, the operator will always know what the correct reading is. Indicator with univ. Shank, Body Clamp, Long/Short Arm.
