762.1MEXFL-25 Electronic Micrometer Head

762.1MEXFL-25 Electronic Micrometer Head

$408.00
(No reviews yet) Write a Review
SKU:
762.1MEXFL-25
UPC:
049659727838
Discontinued:
false
A002040UCC12UPCA:
049659727838
A002050EANUCC13EAN13:
0049659727838
Available for Purchase-US-EN:
N
Category:
Discontinued
Category L1:
Micrometers
Category L2:
Micrometer Heads
Item Segmentation:
Catalog
Item ID:
762.1MEXFL-25
Show in Web Nav?:
Yes
Superseded By:
762.1XFL
UOM:
Each
US Promo Price:
$0.00
US Web Price:
$408.00
Web Catalog-US-EN:
Y
COO Detail:
Made in the USA with US and Global Content
Global Product Classification:
MICROMETER HEAD, ELECTRONIC (METRIC)
Manufacturer's code:
049659
Output:
Cabled Only
Assembled in US:
N
Athol Inventory:
0
Available In Region:
United States|Canada
Cal Prop 65 Chemical:
Lead
Flat Stock Inventory:
0
In Sugar Catalog:
Yes
Item Class:
Stand-Alone
Mt Airy Inventory:
0
Product Group Sort:
discontinued
Rocky Mountain Inventory:
0
To Delete:
false
To Remove:
false
Total Inventory:
0
US Web Temp Hold:
Off
Webber Inventory:
0
Website-URL:
https://www.starrett.com/metrology/product-detail/762.1MEXFL-25
Western Link Inventory:
0
Long Description:
ECO-19808
Made in America:
Yes
Next Catalog:
No
Product made to order status:
MTA
Schedule B Number:
9017.30.4000
Sales Category:
TOOLS.HARDWARE TOOLS (NON-DISCOUNTABLE).
Top 354:
N
Unit Pack Invoiced:
N
Unit Pack Shippable:
N
Use Placeholder Photo:
Y
Web Price:
$408.00
Country of Origin:
United States
Dimensional Drawing PDF:
https://s3.us-west-2.amazonaws.com/catsy.833/Starrett-762.1MEXFL-25-Dimensional-Drawing.pdf
Dimensional Drawing (IMG):
https://s3.us-west-2.amazonaws.com/catsy.833/Starrett-762.1MEXFL-25-Dimensional-Drawing.tif
Accuracy (in):
+/-.0001"
Accuracy (mm):
+/-.003mm
Brochure 1:
https://s3.us-west-2.amazonaws.com/catsy.833/starrett-electronic-precision-hand-tools-bulletin-590.pdf
Cal Prop 65 Statement:
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
EAN:
0049659727838
EDP:
72783
Feature 01:
Starrett no-glare satin chrome finish on thimble and sleeve
Feature 02:
Large, easy-to-read .275 (7mm) high contrast LCD digital readout
Feature 03:
Extremely hard and stable one-piece spindle
Feature 04:
Auto Off after 20 minutes of nonuse
Feature 05:
Inch/millimeter conversion on English versions
Feature 06:
Smooth friction thimble for uniform pressure
Feature 07:
Measurement HOLD button
Feature 08:
Zero at any position
Feature 09:
Retain and return to true zero reading
Feature 10:
Spindle lock
Feature 11:
Data Output
Feature 12:
Resolution: .00005" (0.001mm)
Feature 13:
Accuracy +/-.0001 (+/-.002mm)
Feature 14:
PRESET button to install any reading at any position
Feature 15:
Ability to install minimum and maximum limits
Lock Nut Type:
Lever Type
Micrometer Type:
Electronic Micrometer Head
Product Photo 01:
https://s3.us-west-2.amazonaws.com/catsy.833/762.1MEXFL-25.tif
Product Title:
762.1MEXFL-25 Electronic Micrometer Head
Range (in):
0-1"
Range (mm):
0-25mm
SDS Sheet:
https://s3.us-west-2.amazonaws.com/catsy.833/SDS-Renata-CR2032-ASDS.pdf
Short Description:
Electronic Digital Micrometer Head, Friction Thimble, 0-25mm, 0.001mm - .0001"
SLC Certification:
Optional Add-On
Thimble Graduations:
English
Thimble Type:
Friction
Unit Pack Height (in):
1.3
Unit Pack Length (in):
8.7
Unit Pack Width (in):
3.5
US List Price:
$408.00
Web Priority-US-EN:
99999999
Unit Pack Weight (lbs):
1.05
User Manual URL-US-EN:
https://www.starrett.com/UM-733.1
Series Title:
762.1 Electronic Digital Micrometer Heads
Status:
GOING DISC
Brochure URL-US-EN:
https://www.starrett.com/vdoc/Starrett Electronic Precision Hand Tools (Bulletin 590)
Cal Prop 65 Warning:
Y
Main Image:
https://s3.us-west-2.amazonaws.com/catsy.833/762.1MEXFL-25.tif
Spindle Material:
Carbide
Spindle Type:
Flat

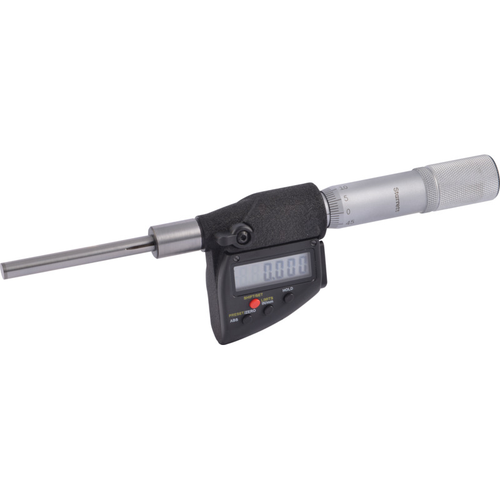

The Starrett 762.1MEXFL-25 Electronic Micrometer Head with Standard Millimeter Graduations on Shell and Thimble includes 0-25mm/0-1" range, friction thimble, lock nut, and carbide face. Featuring large digital readout that is easy to read and reduces errors. Conventional inch or millimeter graduations are standard. Heads are easy to handle with smooth friction thimble for uniform pressure. 0-25mm (0-1") Range, Friction Thimble, Lock Nut, Carbide Face. [Discontinued 10/2022]
