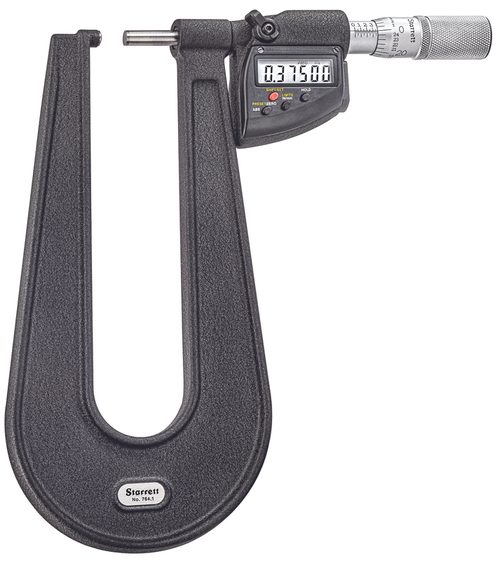

The Starrett 764.1 Series Electronic Sheet Metal Micrometer is a full-featured precision measuring tool built with customary Starrett quality and workmanship. The 764 series includes a large, easy-to-read, high-contrast LCD digital readout for clear readings. Equipped with rounded anvils that gives a point contact for more accurate gaging. Includes 6" Throat Depth with Standard Inch Graduations on Shell and Thimble. Its no-glare satin chrome finish minimizes annoying surface glare under bright lights indoors or filters out UV light. This model features 0.00005"in & 0.001mm resolution and 0-1"in & 0-25mm measuring range. Starrett electronic micrometers guarantee a precise measurement at every position each and every time. 6" Throat Depth, 0-1" (0-25mm) Range, Round Anvil, with Output, Carbide Faces.
764.1AXFL Electronic Sheet Metal Micrometer, 6" Throat Depth
$989.00
(No reviews yet)
Write a Review
Write a Review
764.1AXFL Electronic Sheet Metal Micrometer, 6" Throat Depth
- SKU:
- 764.1AXFL
- UPC:
- 049659728149
- Case Study:
- https://s3-us-west-2.amazonaws.com/catsy.833/Data-Collection-at-Roush-Yates.pdf
- Case Type:
- None
- Category:
- Precision Measuring Tools > Precision Hand Tools > Micrometers > Sheet Metal Micrometers
- Cal Prop 65 Chemical:
- Lead
- Cal Prop 65 Warning:
- Y
- Cal Prop 65 Statement:
- WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
- Conflict Minerals:
- N
- Contaminated if Opened:
- N
- EAN:
- 0049659728149
- EDP:
- 72814
- Exists in Comport:
- N
- Feature 01:
- Starrett no-glare satin chrome finish on thimble and sleeve
- Feature 02:
- Large, easy-to-read .275 (7mm) high contrast LCD digital readout
- Feature 03:
- Extremely hard and stable one-piece spindle
- Feature 04:
- Auto Off after 20 minutes of nonuse
- Feature 05:
- Inch/millimeter conversion on English versions
- Feature 06:
- Smooth friction thimble for uniform pressure
- Feature 07:
- Measurement HOLD button
- Feature 08:
- Zero at any position
- Feature 09:
- Retain and return to true zero reading
- Feature 10:
- Spindle lock
- Feature 11:
- Data Output
- Feature 12:
- Resolution: .00005" (0.001mm)
- Feature 13:
- Accuracy +/-.0001 (+/-.002mm)
- Feature 14:
- PRESET button to install any reading at any position
- Feature 15:
- Ability to install minimum and maximum limits
- Assembled in US:
- N
- Athol Inventory:
- 0
- Available for Purchase-US-EN:
- Y
- Available In Region :
- United States|Canada
- Brochure URL-US-EN:
- https://www.starrett.com/vdoc/Starrett Electronic Precision Hand Tools (Bulletin 590)
- Flat Stock Inventory:
- 0
- In Sugar Catalog:
- Yes
- Item Class:
- Stand-Alone
- Max. Range (in):
- 1
- Max. Range (mm):
- 25
- Min. Range (in):
- 0
- Min. Range (mm):
- 0
- Mt Airy Inventory :
- 0
- ORS Part Numbers :
- 681-72814
- Parent SKU As a Regular Field:
- 764.1
- Product Group Sort:
- sheet_metal_micrometers
- Webber Inventory:
- 0
- Website-URL:
- https://www.starrett.com/details?cat-no=764.1AXFL
- Rocky Mountain Inventory:
- 0
- Show in Web Nav?:
- Yes
- To Delete:
- false
- To Remove:
- false
- Total Inventory:
- 0
- US Web Temp Hold:
- Off
- Fragile:
- N
- French Language Included:
- N
- Global Product Classification:
- SHEET METAL MICROMETER, ELECTRONIC
- Hazmat Indicator:
- N
- Item Segmentation:
- Catalog
- Lock Nut Type:
- Lever
- Long Description:
- Each
- Made in America:
- Yes
- Main Image:
- https://s3-us-west-2.amazonaws.com/catsy.833/764.1AXFLe72814cUSp1.tif
- Manufacturer's code:
- 049659
- Marked Recyclable:
- N
- Micrometer Type:
- Electronic Sheet Metal Micrometer (with output)
- Item ID:
- 764.1AXFL
- Other Document 1 URL-US-EN:
- https://www.starrett.com/vdoc/Starrett DataSure 4.0 (Bulletin 591)
- Other Document 2 URL-US-EN:
- https://www.starrett.com/vdoc/DataSure 4.0 Whitepaper
- Other Document 3 URL-US-EN:
- https://www.starrett.com/vdoc/DS 4.0 at Roush Yates Engines
- Type:
- Micrometer - Sheet Metal
- PMRA Regulated:
- N
- Product made to order status:
- MTO
- Product Photo 01:
- https://s3-us-west-2.amazonaws.com/catsy.833/764.1AXFLe72814cUSp1.tif
- Product Photo 02:
- https://s3-us-west-2.amazonaws.com/catsy.833/764.1AXFLe72814cUSa1.tif
- Product Title:
- 764.1AXFL Electronic Sheet Metal Micrometer, 6" Throat Depth
- Range (in):
- 0-1"
- Range (mm):
- 0-25mm
- Refrigerant Indicator:
- N
- Resolution (in):
- .00005"
- Resolution (mm):
- 0.001mm
- RoHS (EU):
- N
- SDS Indicator:
- N
- SDS Sheet:
- https://s3-us-west-2.amazonaws.com/catsy.833/SDS-Renata-CR2032-ASDS.pdf
- Series Title:
- 764.1 Electronic Digital Sheet Metal Micrometers
- Shelf Pack Invoiced:
- N
- Shelf Pack Shippable:
- N
- Short Description:
- Digital Sheet Metal Micrometer, Friction Thimble, Carbide and Round Anvil, .00005", 0-1" Range
- SPC Output:
- Yes
- Spindle Type:
- Flat
- Status:
- Active
- A0006160MSDSINDICATOR:
- N
- A000670ROHASCOMPLIANT:
- N
- A002040UCC12UPCA:
- 049659728149
- A002050EANUCC13EAN13:
- 0049659728149
- Accuracy (in):
- +/-.0001"
- Accuracy (mm):
- +/-.002mm
- Anvil Type:
- Round
- Anvil/Spindle Material:
- Carbide
- Subject to Environmental Change:
- N
- Temperature Sensitive:
- N
- Thimble Graduations:
- English
- Thimble Type:
- Friction
- Throat Depth (in):
- 6"
- Throat Depth (mm):
- 150mm
- Top 354:
- N
- Unit Pack Height (in):
- 1.8
- Unit Pack Invoiced:
- N
- Unit Pack Length (in):
- 11.7
- Unit Pack Shippable:
- N
- Unit Pack Weight (lbs):
- 2.2
- Unit Pack Width (in):
- 6.7
- UOM:
- Each
- Use Placeholder Photo:
- N
- User Manual URL-US-EN:
- https://www.starrett.com/um-733.1
- US List Price:
- $989.00
- US Web Price:
- $989.00
- Variable Unit:
- N
- Web Catalog-US-EN:
- Y
- Web Price:
- $989.00
- Web Priority-US-EN:
- 15400015
- Electronic or Mechanical:
- Electronic
- Starrett Model No.:
- 764.1
- Sales Category:
- TOOLS.TOOLS (ELECTRONIC & NON-DISCOUNTABLE).
- 01 Spec:
- Electronic Sheet Metal Micrometer (with output)
- 02 Attribute:
- Electronic or Mechanical
- 02 Spec:
- Electronic
- 03 Attribute:
- Range (in)
- 03 Spec:
- 0-1"
- 04 Attribute:
- Range (mm)
- 04 Spec:
- 0-25mm
- 05 Attribute:
- Resolution (in)
- 05 Spec:
- .00005"
- 06 Attribute:
- Resolution (mm)
- 06 Spec:
- 0.001mm
- 07 Attribute:
- Accuracy (in)
- 07 Spec:
- +/- .00015" (whole surface), +/- .0002" (edges),
- 08 Attribute:
- Accuracy (mm)
- 08 Spec:
- +/-.002mm
- 09 Attribute:
- Lock Nut Type
- 09 Spec:
- Lever
- 10 Attribute:
- Output
- 10 Spec:
- Cabled Only
- 11 Attribute:
- Thimble Graduations
- 11 Spec:
- English
- 12 Attribute:
- Thimble Type
- 12 Spec:
- Friction
- 13 Attribute:
- Case Type
- 13 Spec:
- None
- 14 Attribute:
- Anvil/Spindle Material
- 14 Spec:
- Carbide
- 15 Attribute:
- Anvil Type
- 15 Spec:
- Round
- 16 Attribute:
- Spindle Type
- 16 Spec:
- Flat
- 17 Attribute:
- Product Type
- 17 Spec:
- Micrometer - Sheet Metal
- 18 Attribute:
- Throat Depth (in)
- 18 Spec:
- 6"
- 19 Attribute:
- Throat Depth (mm)
- 19 Spec:
- 150mm
- Dimensional Drawing PDF:
- https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-764.1AXFL-Dimensional-Drawing.pdf
- Dimensional Drawing (IMG):
- https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-764.1AXFL-Dimensional-Drawing.tif
- Discontinued:
- false
- Current Catalog:
- 33
- Current Catalog Page:
- add
- Brochure 1:
- https://s3-us-west-2.amazonaws.com/catsy.833/starrett-electronic-precision-hand-tools-bulletin-590.pdf
- Western Link Inventory:
- 0
- Unit Pack Item Qty:
- 1
- Category L1:
- Micrometers
- Category L2:
- Sheet Metal Micrometers
- US Promo Price:
- $0.00
- 01 Attribute:
- Micrometer Type
- Whitepaper 1:
- https://s3-us-west-2.amazonaws.com/catsy.833/Data-Collection-in-Manufacturing.pdf
