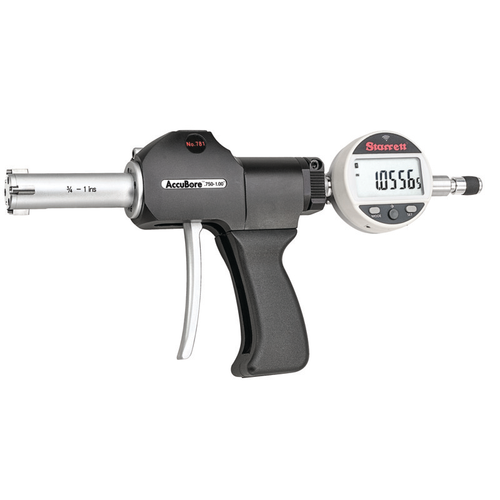

781BXTZ-1 AccuBore Electronic Bore Gage with Output

781BXTZ-1 AccuBore Electronic Bore Gage with Output

$3,258.00
(No reviews yet) Write a Review
SKU:
781BXTZ-1
UPC:
049659730180
Category:
Precision Measuring Tools > Precision Hand Tools > Bore Gages > Electronic Pistol Grip Bore Gages
Cal Prop 65 Chemical:
Lead
Cal Prop 65 Warning:
Y
Cal Prop 65 Statement:
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
Country of Origin :
United Kingdom
EAN:
0049659730180
EDP:
73018
Feature 01:
Single-hand operation with right- and left-hand viewing flexibility
Feature 02:
Large, easy-to-read digital display with integrated LEDs tolerances
Feature 03:
Enhanced wear life with carbide-faced contacts - available from 5/16" to 8"
Feature 04:
True alignment with mechanically-driven parallel anvils
Feature 05:
Push button inch/metric conversion
Feature 06:
Preset and preset recall
Feature 07:
Hold, max/min and zeroing capabilities
Feature 08:
Blind bore measurement is standard from .50" (12.7mm) and above
Feature 09:
Bluetooth Output capability for Statistical Process Control (SPC) analysis
Approximate Measuring Depth (in):
2 5/8"
Approximate Measuring Depth (mm):
66mm
Assembled in US:
N
Athol Inventory:
0
Available for Purchase-US-EN:
Y
Available In Region :
United States|Canada
Description:
ELECTRONIC BT PISTOL BORE GAGE- 3/4-1" RANGE
Flat Stock Inventory:
0
Item Class:
Stand-Alone
Max. Range (in):
1
Max. Range (mm):
25
Min. Range (in):
0.75
Min. Range (mm):
20
Mt Airy Inventory :
0
Parent SKU As a Regular Field:
781BXT
Product Group Sort:
icc110601
Webber Inventory:
0
Website-URL:
https://www.starrett.com/details?cat-no=781BXTZ-1
Rocky Mountain Inventory:
0
Show in Web Nav?:
Yes
To Delete:
false
To Remove:
false
Total Inventory:
0
US Web Temp Hold:
Off
Global Product Classification:
ELECTRONIC BT PISTOL BORE GAGE- 3/4-1" RANGE
Item Segmentation:
Catalog
Long Description:
Each
Main Image:
https://s3-us-west-2.amazonaws.com/catsy.833/781BXTZ-1cUSp1.tif
Manufacturer's code:
049659
Name:
ELECTRONIC BT PISTOL BORE GAGE- 3/4-1" RANGE
Item ID:
781BXTZ-1
Product Photo 01:
https://s3-us-west-2.amazonaws.com/catsy.833/781BXTZ-1cUSp1.tif
Product Photo 02:
https://s3-us-west-2.amazonaws.com/catsy.833/781BXTZ-1cUSp2.tif
Product Title:
781BXTZ-1 AccuBore Electronic Bore Gage with Output
Range (in):
3/4 - 1"
Range (mm):
20-25mm
Resolution (in):
.00005"
Resolution (mm):
0.001mm
Series Title:
781BXT AccuBore Electronic Bore Gages
Short Description:
AccuBore Electronic Bore Gage with Bluetooth, SPC Output, 3/4 - 1" Range, .00005" Res.
SPC Output:
Yes
Status:
Active
A002040UCC12UPCA:
049659730180
A002050EANUCC13EAN13:
0049659730180
Accuracy (in):
.00015"
Accuracy (mm):
.004mm
Top 354:
N
Unit Pack Height (in):
4.2
Unit Pack Height (mm):
106.68
Unit Pack Invoiced:
N
Unit Pack Length (in):
18.1
Unit Pack Length (mm):
459.74
Unit Pack Shippable:
N
Unit Pack Weight (kg):
3.9008912
Unit Pack Weight (lbs):
8.6
Unit Pack Width (in):
11.5
Unit Pack Width (mm):
292.1
UOM:
Each
UPC:
049659730180
Use Placeholder Photo:
N
User Manual URL-US-EN:
https://www.starrett.com/um-781
US List Price:
$3258.00
US Next List Price:
$3258.00
US Web Price:
$3258.00
Web Catalog-US-EN:
Y
Web Price:
$3258.00
Web Priority-US-EN:
30400055
Electronic or Mechanical:
Electronic
Category L1:
Bore Gages
Category L2:
Electronic Pistol Grip Bore Gages
01 Attribute :
Range (in)
01 Spec:
3/4 - 1"
02 Attribute:
Range (mm)
02 Spec:
20-25mm
03 Attribute:
Resolution (in)
03 Spec:
.00005"
04 Attribute:
Resolution (mm)
04 Spec:
0.001mm
05 Attribute:
SPC Output
05 Spec:
Yes
06 Attribute:
Approximate Measuring Depth (in)
06 Spec:
2 5/8"
08 Attribute:
Accuracy (in)
08 Spec:
.00015"
09 Attribute:
Accuracy (mm)
09 Spec:
.004mm
Discontinued:
false
Catalog URL-US-EN:
https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Precision-Hand-Tools.pdf
Current Catalog Page:
205
Catalog Section Page:
3
Catalog:
https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Precision-Hand-Tools.pdf
Catalog Section:
https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Section-06-Bore-Gages.pdf
Brochure 1:
https://s3-us-west-2.amazonaws.com/catsy.833/starrett-electronic-precision-hand-tools-bulletin-590.pdf
Number of Heads:
1
Number of Rings:
1
Western Link Inventory:
0
Unit Pack Item Qty:
1
The Starrett AccuBore is a high-quality, trigger-activated, three-point contact bore gaging system with extended range and Bluetooth Data Output. Its convenient single-hand operation provides speed and control. It also features an easy-to-read digital display as well as mechanically-driven parallel anvils which extend simultaneously, establishing a more true alignment to the axis of the bore, providing consistent pressure and more accurate readings as opposed to models with spring-driven contacts. The gage also features a display with integrated LEDs tolerances that quickly indicate whether a bore measurement is within a preset tolerance window. Pistol Grip, 3/4-1" (20-25mm) Range.
