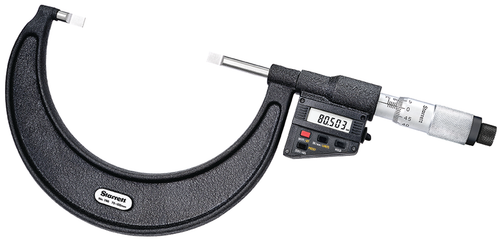

786.1MEP-100 Electronic Blade-Type Micrometer

786.1MEP-100 Electronic Blade-Type Micrometer

$1,210.00
(No reviews yet) Write a Review
SKU:
786.1MEP-100
UPC:
049659728262
Case Study:
https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Datasure-4-Whitepaper-RYE.pdf
Category:
Discontinued
Cal Prop 65 Chemical:
Lead
Cal Prop 65 Warning:
Y
Cal Prop 65 Statement:
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
Country of Origin :
China
EAN:
0049659728262
EDP:
72826
Superseded By:
786.1P-4
Feature 01:
Starrett no-glare satin chrome finish on thimble and sleeve
Feature 02:
Large, easy-to-read .275 (7mm) high contrast LCD digital readout
Feature 03:
Attractive no glare black wrinkle finish on the frame
Feature 04:
Auto Off after 20 minutes of nonuse
Feature 05:
Inch/millimeter conversion on English versions
Feature 06:
Speeder for quick adjustment and uniform pressure
Feature 07:
Measurement HOLD button
Feature 08:
Zero at any position
Feature 09:
Retain and return to true zero reading
Feature 10:
.030 Blade Thickness
Feature 11:
Data Output
Feature 12:
Resolution: .00005" (0.001mm)
Feature 13:
Accuracy +/-.0001 (+/-.002mm)
Feature 14:
PRESET button to install any reading at any position
Feature 15:
Ability to install minimum and maximum limits
Assembled in US:
N
Athol Inventory:
4
Available for Purchase-US-EN:
Y
Available In Region :
United States|Canada
Brochure URL-US-EN:
https://www.starrett.com/vdoc/Starrett Electronic Precision Hand Tools (Bulletin 590)
Description:
The Starrett 786.1 Electronic Blade-Type Micrometer with Non-Rotating Spindle With Output is a
Flat Stock Inventory:
0
In Sugar Catalog:
Yes
Item Class:
Stand-Alone
Max. Range (in):
3.93
Max. Range (mm):
100
Min. Range (in):
2.95
Min. Range (mm):
75
Mt Airy Inventory :
0
Product Group Sort:
discontinued
Webber Inventory:
0
Website-URL:
https://www.starrett.com/metrology/product-detail/786.1MEP-100
Rocky Mountain Inventory:
0
Show in Web Nav?:
Yes
To Delete:
false
To Remove:
false
Total Inventory:
4
US Web Temp Hold:
Off
Global Product Classification:
MICROMETER, ELECTRONIC-METRIC
Graduations (in):
.001"
Intended Use :
ECO-19808
Item Segmentation:
Catalog
Lock Nut Type:
Lever
Long Description:
ECO-19808
Main Image:
https://s3-us-west-2.amazonaws.com/catsy.833/786MEP-100cUSp1.tif
Manufacturer's code:
049659
Micrometer Type:
Electronic Blade-Type Micrometers
Name:
MICROMETER, ELECTRONIC-METRIC
Next Catalog:
No
Item ID:
786.1MEP-100
Other Document 1 URL-US-EN:
https://www.starrett.com/vdoc/Starrett DataSure 4.0 (Bulletin 591)
Other Document 2 URL-US-EN:
https://www.starrett.com/vdoc/DataSure 4.0 Whitepaper
Other Document 3 URL-US-EN:
https://www.starrett.com/vdoc/DS 4.0 at Roush Yates Engines
Placeholder Photo:
https://s3-us-west-2.amazonaws.com/catsy.833/786.1P-1e72832cUSp1.tif
Product made to order status:
MTA
Product Photo 01:
https://s3-us-west-2.amazonaws.com/catsy.833/786MEP-100cUSp1.tif
Product Title:
786.1MEP-100 Electronic Blade-Type Micrometer
Range (in):
2.950-3.930"
Range (mm):
75-100mm
Resolution (in):
.00005"
Resolution (mm):
0.001mm
SDS Sheet:
https://s3-us-west-2.amazonaws.com/catsy.833/SDS-Renata-CR2032-ASDS.pdf
Series Title:
786.1 Electronic Digital Blade Type Micrometers
Short Description:
Digital Blade Type Micrometer, Speeder Thimble, 0.8mm Blade Anvil, SPC Output, 0.001mm, 75-100mm Range
SPC Output:
Yes
Spindle Type:
0.8mm Blade
Status:
GOING DISC
A002050EANUCC13EAN13:
0049659728262
Accuracy (in):
+/-.0001"
Accuracy (mm):
+/-.002mm
Anvil Type:
0.8mm Blade
Anvil/Spindle Material:
Steel
Thimble Graduations:
Metric
Thimble Type:
Speeder
Top 354:
N
Unit Pack Height (in):
1.5
Unit Pack Invoiced:
N
Unit Pack Length (in):
12.4
Unit Pack Shippable:
N
Unit Pack Weight (lbs):
1.75
Unit Pack Width (in):
6.2
UOM:
Each
UPC:
049659728262
Use Placeholder Photo:
Y
User Manual URL-US-EN:
https://www.starrett.com/UM-733.1
US List Price:
$1210.00
US Next List Price:
$1210.00
US Web Price:
$1210.00
Web Catalog-US-EN:
Y
Web Price:
$1210.00
Web Priority-US-EN:
1950
Whitepaper 1 :
https://s3-us-west-2.amazonaws.com/catsy.833/Data-Collection-in-Manufacturing.pdf
Category L1:
Micrometers
Category L2:
Blade Micrometers
Sales Category:
TOOLS.HARDWARE TOOLS (NON-DISCOUNTABLE).
Dimensional Drawing PDF:
https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-786.1MEP-100-Dimensional-Drawing.pdf
Dimensional Drawing (IMG):
https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-786.1MEP-100-Dimensional-Drawing.tif
Discontinued:
false
Brochure 1:
https://s3-us-west-2.amazonaws.com/catsy.833/starrett-electronic-precision-hand-tools-bulletin-590.pdf
Western Link Inventory:
0
Adding to cart… The item has been added
The Starrett 786.1 Electronic Blade-Type Micrometer with Non-Rotating Spindle With Output is a full-featured precision measuring tool built with customary Starrett quality and workmanship. The 786 series includes a large, easy-to-read, high-contrast LCD digital readout for clear readings and a speeder for quicker adjustment on all sizes. The non-rotating spindle prevents blade from turning in narrow slots or rolling off shoulder. Its no-glare satin chrome finish minimizes annoying surface glare under bright lights indoors or filters out UV light. This product features output capability for data transmission. Starrett electronic micrometers guarantee a precise measurement at every position each and every time. 75-100mm Range, 0.001mm Resolution time.
