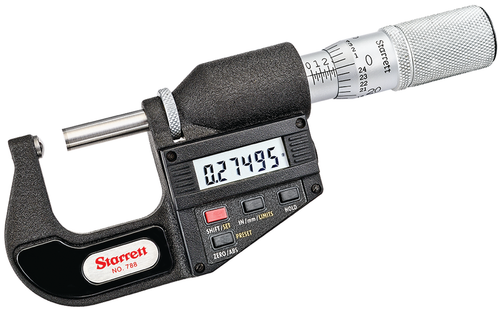

The Starrett 788.1 Electronic Micrometer is a full-featured precision measuring tool built with customary Starrett quality and workmanship. The 788 series is useful for measuring the wall thickness of parts such as solid and split bearings, tubing, sleeves, collars, rings, various cylinders, and also measuring from the inside of a hole to an edge. The 788 includes output capability for data transmission. Special features include a large, easy-to-read, high-contrast LCD digital readout for clear readings. Its no-glare satin chrome finish minimizes annoying surface glare under bright lights indoors or filters out UV light. Advanced sleeve design with staggered lines and distinct figures for precise and easy readability. Starrett electronic micrometers guarantee a precise measurement at every position each and every time. 0-1" (0-25mm) Range, Carbide Anvil & Spindle, without Case.
788.1XFL Electronic Micrometer
$523.00
- SKU:
- 788.1XFL
- UPC:
- 049659728583
- Case Study:
- https://s3-us-west-2.amazonaws.com/catsy.833/Data-Collection-at-Roush-Yates.pdf
- Category:
- Precision Measuring Tools > Precision Hand Tools > Micrometers > Rounded Anvil Micrometers
- Cal Prop 65 Chemical:
- Lead
- Cal Prop 65 Warning:
- Y
- Cal Prop 65 Statement:
- WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
- Conflict Minerals:
- N
- Contaminated if Opened:
- N
- Country of Origin :
- United States
- EAN:
- 0049659728583
- EDP:
- 72858
- Exists in Comport:
- N
- Accessory:
- 3206
- Feature 01:
- IP67 protection against coolants, water, chips, dust and dirt
- Feature 02:
- Starrett no-glare satin chrome finish on thimble and sleeve
- Feature 03:
- Large, easy-to-read .275 (7mm) high contrast LCD digital readout
- Feature 04:
- Extremely hard and stable one-piece spindle
- Feature 05:
- Auto Off after 20 minutes of nonuse
- Feature 06:
- Inch/millimeter conversion on English versions
- Feature 07:
- Smooth friction thimble for uniform pressure
- Feature 08:
- Measurement HOLD button
- Feature 09:
- Zero at any position
- Feature 10:
- Retain and return to true zero reading
- Feature 11:
- Spindle lock
- Feature 12:
- Data Output
- Feature 13:
- Resolution: .00005" (0.001mm)
- Feature 14:
- Accuracy +/-.0001 (+/-.002mm)
- Feature 15:
- PRESET button to install any reading at any position
- Feature 16:
- Ability to install minimum and maximum limits
- Assembled in US:
- N
- Athol Inventory:
- 0
- Available for Purchase-US-EN:
- Y
- Available In Region :
- United States|Canada
- Brochure URL-US-EN:
- https://www.starrett.com/vdoc/Starrett Electronic Precision Hand Tools (Bulletin 590)
- Description:
- The Starrett 788.1 Electronic Micrometer is a full-featured precision measuring tool built with
- Flat Stock Inventory:
- 0
- In Sugar Catalog:
- Yes
- Item Class:
- Stand-Alone
- Max. Range (in):
- 1
- Max. Range (mm):
- 25
- Min. Range (in):
- 0
- Min. Range (mm):
- 0
- Mt Airy Inventory :
- 0
- ORS Part Numbers :
- 681-72858
- Parent SKU As a Regular Field:
- 788.1
- Product Group Sort:
- rounded_anvil_micrometers
- Webber Inventory:
- 0
- Website-URL:
- https://www.starrett.com/details?cat-no=788.1XFL
- Rocky Mountain Inventory:
- 0
- Show in Web Nav?:
- Yes
- To Delete:
- false
- To Remove:
- false
- Total Inventory:
- 0
- US Web Temp Hold:
- Off
- Fragile:
- N
- French Language Included:
- N
- Global Product Classification:
- MICROMETER - ROUND ANVIL
- Hazmat Indicator:
- N
- Item Segmentation:
- Catalog
- Lock Nut Type:
- Knurled Ring Type
- Long Description:
- Each
- Made in America:
- Yes
- Main Image:
- https://s3-us-west-2.amazonaws.com/catsy.833/788.1XFLe72858cUSp1.tif
- Manufacturer's code:
- 049659
- Marked Recyclable:
- N
- Micrometer Type:
- Electronic Micrometer with rounded anvil (with output)
- Name:
- MICROMETER - ROUND ANVIL
- Item ID:
- 788.1XFL
- Other Document 1 URL-US-EN:
- https://www.starrett.com/vdoc/Starrett DataSure 4.0 (Bulletin 591)
- Other Document 2 URL-US-EN:
- https://www.starrett.com/vdoc/DataSure 4.0 Whitepaper
- Other Document 3 URL-US-EN:
- https://www.starrett.com/vdoc/DS 4.0 at Roush Yates Engines
- Type:
- Micrometer - Round Anvil
- PMRA Regulated:
- N
- Product made to order status:
- MTO
- Product Photo 01:
- https://s3-us-west-2.amazonaws.com/catsy.833/788.1XFLe72858cUSp1.tif
- Product Title:
- 788.1XFL Electronic Micrometer
- Range (in):
- 0-1"
- Range (mm):
- 0-25mm
- Refrigerant Indicator:
- N
- Resolution (in):
- .00005"
- Resolution (mm):
- 0.001mm
- RoHS (EU):
- N
- SDS Indicator:
- N
- SDS Sheet:
- https://s3-us-west-2.amazonaws.com/catsy.833/SDS-Renata-CR2032-ASDS.pdf
- Series Title:
- 788.1 - Electronic Digital Micrometers with Rounded Anvil
- Shelf Pack Invoiced:
- N
- Shelf Pack Shippable:
- N
- Short Description:
- Digital Micrometer, Friction Thimble, Carbide and Round Anvil, SPC Output, .00005", 0-1" Range
- SPC Output:
- Yes
- Spindle Type:
- Flat
- Status:
- Active
- A0006160MSDSINDICATOR:
- N
- A000670ROHASCOMPLIANT:
- N
- A002040UCC12UPCA:
- 049659728583
- A002050EANUCC13EAN13:
- 0049659728583
- Accuracy (in):
- +/-.0001"
- Accuracy (mm):
- +/-.002mm
- Anvil Type:
- Round
- Anvil/Spindle Material:
- Carbide
- Subject to Environmental Change:
- N
- Temperature Sensitive:
- N
- Thimble Graduations:
- English
- Thimble Type:
- Friction
- Top 354:
- N
- Unit Pack Height (in):
- 1.3
- Unit Pack Invoiced:
- N
- Unit Pack Length (in):
- 5.8
- Unit Pack Shippable:
- N
- Unit Pack Weight (lbs):
- 0.85
- Unit Pack Width (in):
- 2.6
- UOM:
- Each
- UPC:
- 049659728583
- Use Placeholder Photo:
- N
- User Manual URL-US-EN:
- https://www.starrett.com/um-733.1
- US List Price:
- $523.00
- US Next List Price:
- $523.00
- US Web Price:
- $523.00
- Variable Unit:
- N
- Web Catalog-US-EN:
- Y
- Web Price:
- $523.00
- Web Priority-US-EN:
- 16600010
- Whitepaper 1 :
- https://s3-us-west-2.amazonaws.com/catsy.833/Data-Collection-in-Manufacturing.pdf
- Electronic or Mechanical:
- Electronic
- Starrett Model No.:
- 788.1
- Category L1:
- Micrometers
- Category L2:
- Rounded Anvil Micrometers
- Sales Category:
- TOOLS.HARDWARE TOOLS (NON-DISCOUNTABLE).
- 01 Attribute :
- Micrometer Type
- 01 Spec:
- Electronic Micrometer with rounded anvil (with output)
- 02 Attribute:
- Electronic or Mechanical
- 02 Spec:
- Electronic
- 03 Attribute:
- Range (in)
- 03 Spec:
- 0-1"
- 04 Attribute:
- Range (mm)
- 04 Spec:
- 0-25mm
- 05 Attribute:
- Resolution (in)
- 05 Spec:
- .00005"
- 06 Attribute:
- Resolution (mm)
- 06 Spec:
- 0.001mm
- 07 Attribute:
- Accuracy (in)
- 07 Spec:
- +/- .00015" (whole surface), +/- .0002" (edges),
- 08 Attribute:
- Accuracy (mm)
- 08 Spec:
- +/-.002mm
- 09 Attribute:
- Lock Nut Type
- 09 Spec:
- Knurled Ring Type
- 10 Attribute:
- SPC Output
- 10 Spec:
- Yes
- 11 Attribute:
- Thimble Graduations
- 11 Spec:
- English
- 12 Attribute:
- Thimble Type
- 12 Spec:
- Friction
- 13 Attribute:
- Anvil/Spindle Material
- 13 Spec:
- Carbide
- 14 Attribute:
- Anvil Type
- 14 Spec:
- Round
- 15 Attribute:
- Spindle Type
- 15 Spec:
- Flat
- 16 Attribute:
- Product Type
- 16 Spec:
- Micrometer - Round Anvil
- Dimensional Drawing PDF:
- https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-788.1XFL-Dimensional-Drawing.pdf
- Dimensional Drawing (IMG):
- https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-788.1XFL-Dimensional-Drawing.tif
- Discontinued:
- false
- Current Catalog:
- 33
- Current Catalog Page:
- Add
- Brochure 1:
- https://s3-us-west-2.amazonaws.com/catsy.833/starrett-electronic-precision-hand-tools-bulletin-590.pdf
- Western Link Inventory:
- 0
- Unit Pack Item Qty:
- 1
