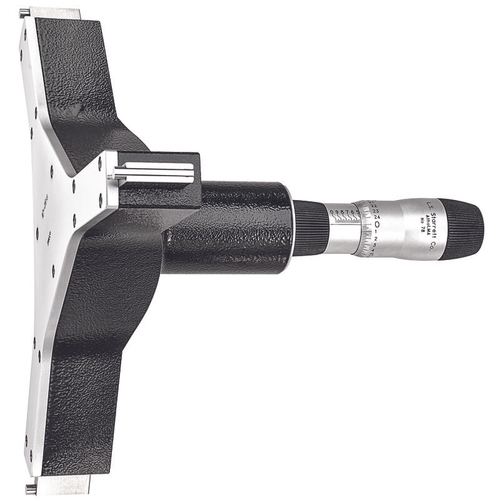

78XTZ-11 Bore Gage

78XTZ-11 Bore Gage

$6,081.00
(No reviews yet) Write a Review
SKU:
78XTZ-11
UPC:
049659678598
Discontinued:
false
01 Spec:
10" to 11"
01 Attribute:
Range (in)
02 Attribute:
Approximate Measuring Depth (in)
02 Spec:
4-5/8"
A002040UCC12UPCA:
049659678598
A002050EANUCC13EAN13:
0049659678598
Approximate Measuring Depth (in):
4-5/8"
Available for Purchase-US-EN:
N
Cal Prop 65 Statement:
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
Catalog:
https://s3.us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Precision-Hand-Tools.pdf
Catalog Section:
https://s3.us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Section-06-Bore-Gages.pdf
Catalog Section Page:
7
Category:
Precision Measuring Tools > Precision Hand Tools > Bore Gages > Mechanical Bore Micrometers
Category L1:
Bore Gages
Category L2:
Mechanical Bore Micrometers
EAN:
0049659678598
EDP:
67859
Electronic or Mechanical:
Mechanical
Feature 01:
Wide measurement range without changing anvils
Feature 02:
Tungsten carbide measuring faces on all 3-point heads above 1/2" (12.5mm)
Feature 03:
Ratchet stop ensures consistent measurements
Feature 04:
Self-centering contacts for true readings
Feature 05:
Blind bore measuring capability above 1/2" (12.5mm) diameter
Feature 06:
Extensions available up to 6" (150mm) for deep hole measuring
Feature 07:
Setting rings included
Feature 08:
Depth stop/collar also available for .080"-.250" (1-6mm) range
Feature 09:
Each micrometer bore gage is furnished in a case, complete with setting ring, contacts, wrenches, and instructions
Graduations (in):
.00025"
Item Segmentation:
Catalog
NAFTA Producer:
No
Item ID:
78XTZ-11
Number of Rings:
1
Product Photo 01:
https://s3.us-west-2.amazonaws.com/catsy.833/78XTZ-11cUSp1.tif
Product Photo 02:
https://s3.us-west-2.amazonaws.com/catsy.833/78XTZ-11cUSp2.tif
Product Title:
78XTZ-11 Bore Gage
Range (in):
10" to 11"
Short Description:
Inside Bore Gage Micrometer, 10-11", .00025"
Show in Web Nav?:
Yes
Unit Pack Height (in):
9
Unit Pack Item Qty:
1
Unit Pack Length (in):
23
Unit Pack Width (in):
16
UOM:
Each
US List Price:
$6081.00
US Promo Price:
$0.00
US Web Price:
$6081.00
Web Catalog-US-EN:
Y
Web Priority-US-EN:
31200115
Unit Pack Weight (lbs):
48
Series Title:
78, 78M Inside Micrometers, Extended Travel with Setting Rings and Cases
Status:
Active
Catalog URL-US-EN:
https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Precision-Hand-Tools.pdf
Global Product Classification:
MICROMETER, INSIDE 10-11" RANGE
Manufacturer's code:
049659
Athol Inventory:
0
Available In Region:
United States|Canada
Cal Prop 65 Chemical:
Lead
Cal Prop 65 Warning:
Y
Current Catalog Page:
209
Flat Stock Inventory:
0
Item Class:
Stand-Alone
Max. Range (in):
11
Min. Range (in):
10
Mt Airy Inventory:
0
Parent SKU As a Regular Field:
78XT
Product Group Sort:
icc110603
Rocky Mountain Inventory:
0
To Delete:
false
To Remove:
false
Total Inventory:
0
US Web Temp Hold:
Off
Webber Inventory:
0
Website-URL:
https://www.starrett.com/details?cat-no=78XTZ-11
Western Link Inventory:
0
Long Description:
Each
Main Image:
https://s3.us-west-2.amazonaws.com/catsy.833/78XTZ-11cUSp1.tif
Number of Heads:
1
Product made to order status:
MTO
Schedule B Number:
9017.30.4000
Tariff Code for entry into Mexico:
No
Top 354:
N
Use Placeholder Photo:
N
Web Price:
$6081.00
Country of Origin:
United Kingdom
Blades per Pack (pcs):
1

The Starrett 78XT Series Internal Micrometer features extended travel, reducing the need to exchange anvils. The ground contact points seat the internal micrometer faster and more accurately than the spherical contacts found in other gages. The rugged and accurate internal micrometer is available individually or in economical sets from .040-12" (1-300mm). 10-11" Range, w/3 Point Carbide Contact.
