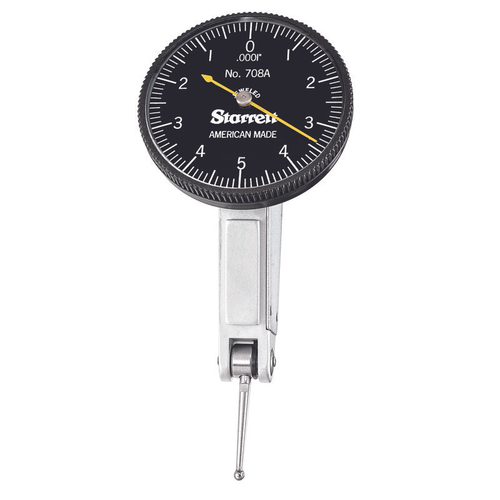

The Starrett 708 Dial Test Indicator with Dovetail Mount offers an easy to read angled head and the flexibility of three dovetail mounts.
B708AZ Dial Test Indicator with SLC
$473.00
- SKU:
- B708AZ W/SLC
- UPC:
- 049659668681
- POA Flag:
- N
- Product Photo 01:
- https://s3-us-west-2.amazonaws.com/catsy.833/B708AZcUSp1.tif
- Product Title:
- B708AZ Dial Test Indicator with SLC
- Range (in):
- .010"
- Series Title:
- 708, 708M, 709, 709M Dial Test Indicators with Dovetail Mounts with Case
- Short Description:
- Dial Test Indicator with Dovetail, .010" Range, 0-5-0 Dial Face, .0001" Graduations, Case, SLC
- Status:
- Active
- Unit Pack Height (in):
- 1.5
- Unit Pack Height (mm):
- 58.42
- Unit Pack Item Qty:
- 1
- Unit Pack Length (in):
- 5.5
- Unit Pack Length (mm):
- 193.04
- Unit Pack Weight (kg):
- 0.4989512
- Unit Pack Weight (lbs):
- 0.2
- Unit Pack Width (in):
- 3
- Unit Pack Width (mm):
- 134.62
- UOM:
- Each
- UPC:
- 049659668681
- Use Placeholder Photo:
- N
- US List Price:
- $473.00
- Web Catalog-US-EN:
- Y
- Web Priority-US-EN:
- 21600075
- Contact Point Ball Diameter (in):
- .078" (2mm)
- Contact Point Length (in):
- 13/16"
- Contact Point Length (mm):
- 20mm
- Country of Origin :
- United States
- Dial Color:
- Black
- Dial Reading:
- 0-5-0
- EAN:
- 0049659668681
- EDP:
- 66868
- Effective List Date:
- 2022-12-31
- Feature 01:
- Angled head for better reading position
- Feature 02:
- Three dovetail positioning moutns work with existing test indicator accessories
- Feature 03:
- Large 1-3/8" (35mm) dial diameter
- Feature 04:
- Precision gear-driven design with smooth, jeweled movement
- Feature 05:
- Narrow body for inreach ability
- Feature 06:
- Contact point reverses automatically, always maintaining clockwise hand rotation
- Feature 07:
- Red dial color, .0001" graduation, .010" range, 0-5-0 dial reading with 13/16" (20mm) carbide contact point and .078" (2mm) ball diameter
- Feature 11:
- Narrow body for inreach ability
- Feature 12:
- Satin chrome finish for durability
- Feature 13:
- Large 1-3/8" (35mm) dial diameter
- Feature 14:
- Include long carbide contacts 13/16" (20mm)
- Description:
- DIAL TEST INDICATOR, BLACK DIAL, WITH STANDARD LETTER OF CERTIFICATION
- Item Class:
- Stand-Alone
- Max. Range (in):
- 0.01
- Min. Range (in):
- 0
- Parent SKU As a Regular Field:
- 708
- Show in Web Nav?:
- Yes
- SLC Certification:
- Included
- Total Inventory:
- 0
- Unit Sales 2020:
- 0
- Unit Sales 2021:
- 1
- Unit Sales 2022:
- 7
- US Web Temp Hold:
- Off
- US Web Price:
- $473.00
- Web Price:
- $473.00
- Contact Ball Material:
- Carbide
- Contact Point Ball Diameter (mm):
- 2mm (.078")
- Style:
- Dovetail Mount
- Starrett Model No.:
- 708
- Dial Diameter (In):
- 1-3/8"
- Top 354:
- N
- US Price List Name:
- 133W
- Graduations (in):
- .0001"
- ICC:
- 110501 Test Indicators
- Item Discount Code:
- B
- Item Segmentation:
- Catalog
- Made in America:
- Yes
- Main Image:
- https://s3-us-west-2.amazonaws.com/catsy.833/B708AZcUSp1.tif
- Manufacturer's code:
- 049659
- NAFTA Producer:
- Yes
- Name:
- DIAL TEST INDICATOR, BLACK DIAL, WITH STANDARD LETTER OF CERTIFICATION
- Item ID:
- B708AZ W/SLC
- Electronic or Mechanical:
- Mechanical
- Flat Stock Inventory:
- 0
- Mt Airy Inventory :
- 0
- Rocky Mountain Inventory:
- 0
- US Next List Price:
- $473.00
- IBC Category 1:
- Testing, Measuring and Inspection
- IBC Category 2:
- Dimensional Measurement Tools
- IBC Category 3:
- Dial, Electronic Drop and Test indicators
- Dimensional Drawing PDF:
- https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-B708AZ-Dimensional-Drawing.pdf
- Dimensional Drawing (IMG):
- https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-B708AZ-Dimensional-Drawing.tif
- Product Photo 02:
- https://s3-us-west-2.amazonaws.com/catsy.833/B708AZcUSp2.tif
- Website-URL:
- https://www.starrett.com/details?cat-no=B708AZ W/SLC
- To Delete:
- false
- To Remove:
- false
- Webber Inventory:
- 0
- Minimum Order Quantity:
- 0
- Discontinued:
- false
- Category:
- Precision Measuring Tools > Precision Hand Tools > Indicators & Gages > Test Indicators
- Cal Prop 65 Chemical:
- Lead
- Cal Prop 65 Warning:
- Y
- Cal Prop 65 Statement:
- WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
- Athol Inventory:
- 0
- Attachments:
- Without Attachments
- Available for Purchase-US-EN:
- Y
- Available In Region :
- United States|Canada
- CAN List Price:
- CA$597.00
- Combined Dollar Sales:
- 2369.25
- Combined Unit Sales :
- 8
- Product Group Sort:
- icc110501
- A002040UCC12UPCA:
- 049659668681
- A002050EANUCC13EAN13:
- 0049659668681
- Category L1:
- Indicators & Gages
- Category L2:
- Test Indicators
- 01 Attribute :
- Range (in)
- 01 Spec:
- .010"
- 02 Attribute:
- Graduations (in)
- 02 Spec:
- .0001"
- 03 Attribute:
- Dial Reading
- 03 Spec:
- 0-5-0
- 04 Attribute:
- Attachments
- 04 Spec:
- Without Attachments
- 05 Attribute:
- Contact Ball Material
- 05 Spec:
- Carbide
- 06 Attribute:
- Contact Point Ball Diameter (in)
- 06 Spec:
- .078" (2mm)
- 07 Attribute:
- Contact Point Ball Diameter (mm)
- 07 Spec:
- 2mm (.078")
- 08 Attribute:
- Contact Point Length (in)
- 08 Spec:
- 13/16"
- 09 Attribute:
- Contact Point Length (mm)
- 09 Spec:
- 20mm
- 10 Attribute:
- Style
- 10 Spec:
- Dovetail Mount
- 11 Attribute:
- Dial Color
- 11 Spec:
- Black
- 12 Attribute:
- Dial Diameter (In)
- 12 Spec:
- 1-3/8"
- 13 Attribute:
- SLC Certification
- 13 Spec:
- Included
