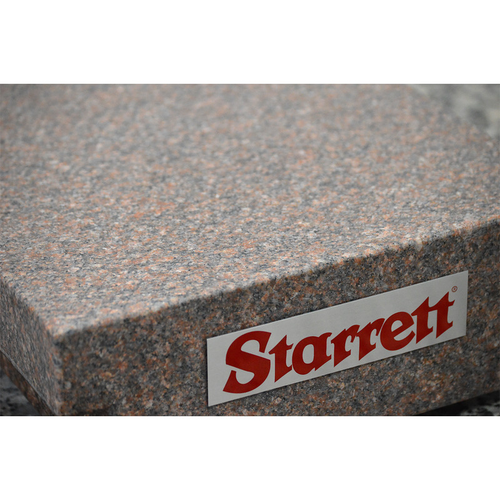

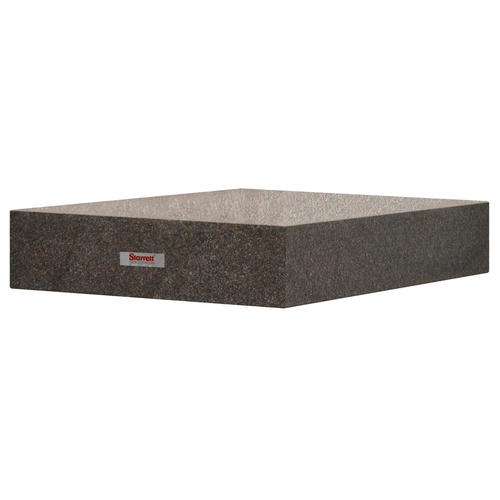

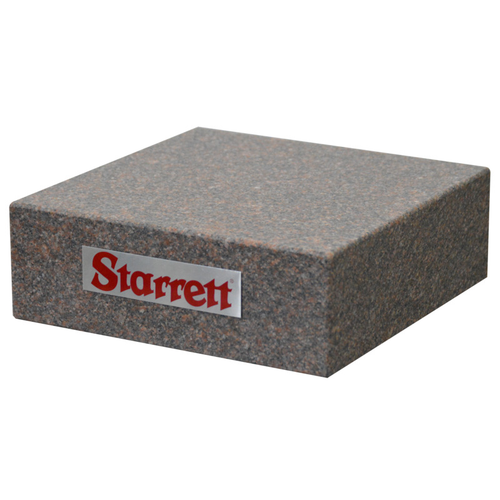

12" x 12" (300mm x 300mm) Superior Red Granite Surface Plate with a 4" (100mm) thickness. Superior Red Granite offers unparalleled wear resistance compared to other surface plates. Grade A (Inspection Grade) for general work in quality control. .000100" (0.0025mm) Flatness unilateral tolerance. Produced without ledges.
G-88604 12" x 12" x 4" Surface Plate
$492.00
- SKU:
- G-88604
- UPC:
- 049659886047
- Category:
- Granite Surface Plates and Accessories > Precision Surface Plates
- Cal Prop 65 Warning:
- N
- Country of Origin :
- United States
- EDP:
- 88604
- Accessory:
- G-83020|G-81824|G-81320
- Feature 01:
- Meets or exceeds U.S. Federal Specification GGG-P-463c and ASME B89.3.7 2013 for flatness.
- Feature 02:
- Best surface hardness and wear resistance - The highest percentage of quartz crystals of any granite plate.
- Feature 03:
- Smooth, jewel-like quartz bearing points protect accuracy and finish of both the surface and the tools used on it.
- Feature 04:
- Quality and economy combined.
- Feature 05:
- Comparable to black granite plates while outwearing them as much as 5 to 1.
- Feature 06:
- Meets or exceeds 50 lb per square foot (24kg per 1,000 sq. cm) load bearing specifications. Available in 100 lb (45kg) test series.
- Feature 07:
- Standard-size plates are mounted on resilient support pads, providing isolation from normal vibration and a non-distorting 3-point suspension.
- Feature 08:
- Packed one per crate with skids for forklift handling.
- Available for Purchase-US-EN:
- N
- Available In Region :
- United States|Canada
- In Sugar Catalog:
- No
- Item Class:
- Stand-Alone
- Parent SKU As a Regular Field:
- GSP-CP
- Product Group Sort:
- icc1301
- Website-URL:
- https://www.starrett.com/details?cat-no=G-88604
- Show in Web Nav?:
- Yes
- To Delete:
- false
- To Remove:
- false
- Total Inventory:
- 0
- US Web Temp Hold:
- Off
- Grade (U.S.):
- A Inspection
- Item Segmentation:
- Catalog
- Ledges:
- 0
- Made in America:
- Yes
- Main Image:
- https://s3-us-west-2.amazonaws.com/catsy.833/Superior+Red+p1.tif
- Manufacturer's code:
- 049659
- Material:
- Superior Red
- Minimum Order Quantity:
- 0
- Name:
- Surface Plate SupRed 12x12x4 A 0L
- Item ID:
- G-88604
- Product Photo 01:
- https://s3-us-west-2.amazonaws.com/catsy.833/Superior+Red+p1.tif
- Product Photo 02:
- https://s3-us-west-2.amazonaws.com/catsy.833/Superior+Red+p2.tif
- Product Photo 03:
- https://s3-us-west-2.amazonaws.com/catsy.833/Superior+Red+p8.tif
- Product Title:
- G-88604 12" x 12" x 4" Surface Plate
- Series Title:
- Superior Red Granite Surface Plate
- Short Description:
- 12 x 12 Superior Red Granite Surface Plate, 4" Thickness, A Grade, No Ledge
- Size LxW (in):
- 12 x 12
- Size LxW (mm):
- 300 x 300
- Size LxWxT (in):
- 12 x 12 x 4
- Size LxWxT (mm):
- 300 x 300 x 100
- Status:
- Active
- Thickness (in):
- 4
- Thickness (mm):
- 100
- Top 354:
- N
- Unit Pack Weight (lbs):
- 1
- UOM:
- Each
- UPC:
- 049659886047
- US Launch Date:
- 2023-06-01
- US List Price:
- $492.00
- Web Catalog-US-EN:
- Y
- Web Priority-US-EN:
- 44800050
- Category L1:
- Granite Products
- Category L2:
- Precision Surface Plates
- 01 Attribute :
- Size LxWxT (in)
- 01 Spec:
- 12 x 12 x 4
- 02 Attribute:
- Grade (U.S.)
- 02 Spec:
- A Inspection
- 03 Attribute:
- Size LxWxT (mm)
- 03 Spec:
- 300 x 300 x 100
- 04 Attribute:
- Ledges
- 04 Spec:
- 0
- 05 Attribute:
- Size LxW (in)
- 05 Spec:
- 12 x 12
- 06 Attribute:
- Size LxW (mm)
- 06 Spec:
- 300 x 300
- Discontinued:
- false
- Current Catalog:
- 33
- Current Catalog Page:
- add
