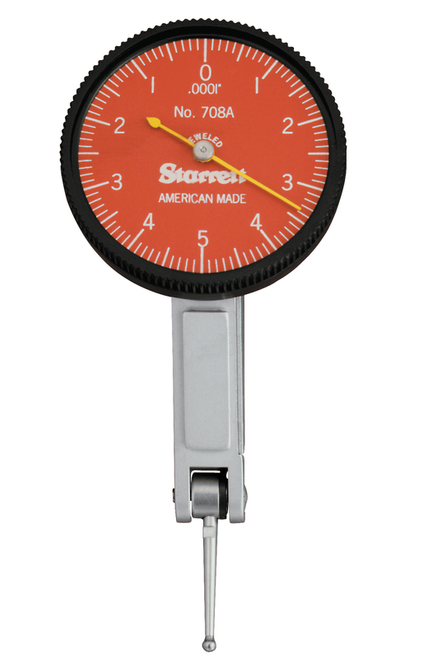

R708ACZ Dial Test Indicator with Dovetail Mount

$592.00

(No reviews yet) Write a Review

SKU:: R708ACZ
UPC:: 049659646047
Cal Prop 65 Chemical:: Lead
Athol Inventory:: 6
Flat Stock Inventory:: 0
Item Class:: Stand-Alone
Parent SKU As a Regular Field:: 708
Product Group Sort:: icc110501
Webber Inventory:: 0
Website-URL:: https://www.starrett.com/details?cat-no=R708ACZ
Rocky Mountain Inventory:: 0
To Delete:: false
To Remove:: false
Total Inventory:: 6
US Web Temp Hold:: Off
Global Product Classification:: DIAL TEST INDICATOR SET, RED DIAL
Long Description:: Each
Made in America:: Yes
Manufacturer's code:: 049659
POA Flag:: N
Shelf Pack Item Qty:: 1
Shelf Pack Pricing Quantity:: 1
Tariff Code for entry into Mexico:: Yes
Top 354:: N
Unit Pack Height (mm):: 58.42
Unit Pack Length (mm):: 193.04
Unit Pack Weight (kg):: 0.7257472
Unit Pack Width (mm):: 134.62
Use Placeholder Photo:: N
Web Price:: $592.00
Discontinued:: false
Current Catalog Page:: 135
Western Link Inventory:: 0
Current Catalog:: 33
categoryl1:: Indicators & Gages
categoryl2:: Test Indicators
number:: R708ACZ
01 Attribute:: Range (in)
A0006160MSDSINDICATOR:: N
A002040UCC12UPCA:: 049659646047
A002050EANUCC13EAN13:: 0049659646047
Available for Purchase-US-EN:: Y
Catalog Section:: https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Section-05-Dial-and-Electronic-Indicators-and-Gages.pdf
Catalog Section Page:: 3
Category:: Precision Measuring Tools > Precision Hand Tools > Indicators & Gages > Test Indicators
Category L1:: Indicators & Gages
Category L2:: Test Indicators
Item Segmentation:: Catalog
Member of Set:: 708/709ZZ|PT11770A|PT22428|PT22429|PT22430|R708AZ
NAFTA Producer:: Yes
Item ID:: R708ACZ
Show in Web Nav?:: Yes
Starrett Model No.:: 708
UOM:: Each
US Promo Price:: $0.00
US Web Price:: $592.00
Web Catalog-US-EN:: Y
COO Detail:: Made in the USA with US and Global Content
Schedule B Number:: 9017.30.8000
Product made to order status:: MTO
Available In Region:: United States|Canada
Mt Airy Inventory:: 0
Country of Origin:: United States
Dimensional Drawing PDF:: https://s3.us-west-2.amazonaws.com/catsy.833/Starrett-R708ACZ-Dimensional-Drawing.pdf
Dimensional Drawing (IMG):: https://s3.us-west-2.amazonaws.com/catsy.833/Starrett-R708ACZ-Dimensional-Drawing.tif
01 Spec:: .010"
02 Attribute:: Graduations (in)
02 Spec:: .0001"
03 Attribute:: Dial Reading
03 Spec:: 0-5-0
04 Attribute:: Attachments
04 Spec:: Dovetail body clamp (PT22429/EDP 72441), tool post holder (PT11770A/EDP 71361), swivel post snug with dovetail indicator clamp (PT22428/EDP 72440), and snug and rod unit PT22430/EDP 72442.
05 Attribute:: Contact Ball Material
05 Spec:: Carbide
06 Attribute:: Contact Point Ball Diameter (in)
06 Spec:: .078" (2mm)
07 Attribute:: Contact Point Ball Diameter (mm)
07 Spec:: 2mm (.078")
08 Attribute:: Contact Point Length (in)
08 Spec:: 13/16"
09 Attribute:: Contact Point Length (mm)
09 Spec:: 20mm
10 Attribute:: Style
10 Spec:: Dovetail Mount
11 Attribute:: Dial Color
11 Spec:: Red
12 Attribute:: Dial Diameter (In)
12 Spec:: 1-3/8"
Attachments:: Dovetail body clamp (PT22429/EDP 72441), tool post holder (PT11770A/EDP 71361), swivel post snug with dovetail indicator clamp (PT22428/EDP 72440), and snug and rod unit PT22430/EDP 72442.
Cal Prop 65 Statement:: WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
Catalog:: https://s3.us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Precision-Hand-Tools.pdf
Dial Color:: Red
Dial Reading:: 0-5-0
EAN:: 0049659646047
EDP:: 64604
Electronic or Mechanical:: Mechanical
Feature 01:: These precision test indicators offer an easy to read angled head and the flexibility of three dovetail mounts
Feature 02:: Three dovetail positioning mounts work with existing test indicator accessories
Feature 03:: Precision gear-driven design with smooth, jeweled movement
Feature 04:: Contact point reverses automatically, always maintaining clockwise hand rotation
Feature 05:: Contacts are frictionally adjustable and replaceable
Feature 06:: Revolution count hand for easy reading
Feature 07:: Meet or exceed ISO accuracy specification
Feature 08:: Inch reading indicators are available with easy-to-read, shaded white, red, or black dials - millimeter reading indicators with yellow dials
Feature 09:: Angled head for better reading position
Feature 10:: Narrow body for inreach ability
Feature 11:: Satin chrome finish for durability
Feature 12:: Large 1-3/8" (35mm) dial diameter
Feature 13:: Include long carbide contacts 13/16" (20mm)
Feature 14:: Attachments include dovetail body clamp, tool post holder, swivel post snug with dovetail indicator clamp, and snug and rod unit
Graduations (in):: .0001"
Orderable Online Today (US Only):: Yes
Product Photo 01:: https://s3.us-west-2.amazonaws.com/catsy.833/R708ACZwe66870cUSp1.tif
Product Photo 02:: https://s3.us-west-2.amazonaws.com/catsy.833/R708ACZcUSp1.tif
Product Title:: R708ACZ Dial Test Indicator with Dovetail Mount
Product Type:: Test Indicator
Range (in):: .010"
Short Description:: Dial Test Indicator with Dovetail, .010" Range, 0-5-0 Dial Face, .0001" Graduations, with Attachments, Case
SLC Certification:: Optional Add-On
Style:: Dovetail Mount
Unit Pack Height (in):: 2.3
Unit Pack Item Qty:: 1
Unit Pack Length (in):: 7.6
Unit Pack Width (in):: 5.3
US List Price:: $592.00
Web Priority-US-EN:: 21600085
Unit Pack Weight (lbs):: 1.65
SDS Indicator:: N
Series Title:: 708, 708M, 709, 709M Dial Test Indicators with Dovetail Mounts with Case
Status:: Active
Catalog URL-US-EN:: https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Precision-Hand-Tools.pdf
Cal Prop 65 Warning:: Y
Contact Ball Material:: Carbide
Contact Point Ball Diameter (in):: .078" (2mm)
Contact Point Ball Diameter (mm):: 2mm (.078")
Contact Point Length (in):: 13/16"
Contact Point Length (mm):: 20mm
Max. Range (in):: 0.01
Min. Range (in):: 0
Main Image:: https://s3.us-west-2.amazonaws.com/catsy.833/R708ACZwe66870cUSp1.tif
Dial Diameter (In):: 1-3/8"
