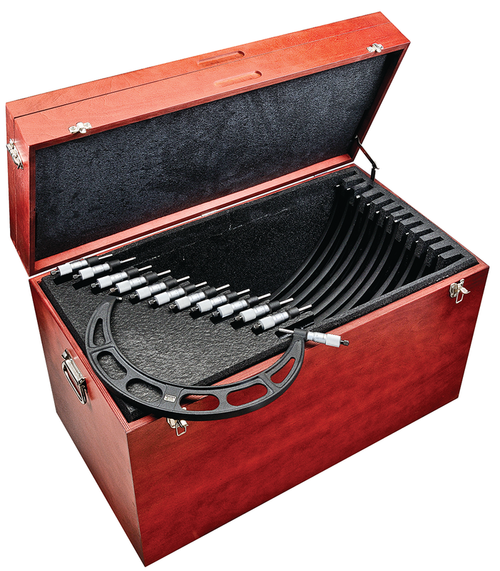

S436.1MBXRLZ Outside Micrometer Set

$1,436.00
(No reviews yet) Write a Review
SKU:
S436.1MBXRLZ
UPC:
049659680713
Category:
Precision Measuring Tools > Precision Hand Tools > Micrometers > Micrometer Sets
Cal Prop 65 Chemical:
Lead
Conflict Minerals:
N
Contaminated if Opened:
N
Current Catalog:
33
Current Catalog Page:
36
Exists in Comport:
N
Athol Inventory:
0
Available for Purchase-US-EN:
Y
Flat Stock Inventory:
0
In Sugar Catalog:
Yes
Item Class:
Stand-Alone
Parent SKU As a Regular Field:
S436.1
Product Group Sort:
pim_icc_num_110103
Webber Inventory:
0
Website-URL:
https://www.starrett.com/details?cat-no=S436.1MBXRLZ
Rocky Mountain Inventory:
0
Show in Web Nav?:
Yes
To Delete:
false
To Remove:
false
Top Seller:
Yes
Total Inventory:
0
US Web Temp Hold:
Off
Fragile:
N
French Language Included:
N
Global Product Classification:
OUTSIDE MICROMETER SET, 0-100mm, 0.01mm GRADS
Hazmat Indicator:
N
Item Segmentation:
Catalog
Long Description:
Each
Manufacturer's code:
049659
Marked Recyclable:
N
NAFTA Producer:
Yes
Item ID:
S436.1MBXRLZ
PMRA Regulated:
N
Product made to order status:
MTO
Published Locations:
Catalog 33
Refrigerant Indicator:
N
Resolution (in):
.001"
Shelf Pack Invoiced:
N
Shelf Pack Shippable:
N
A0006160MSDSINDICATOR:
N
A000670ROHASCOMPLIANT:
N
A002040UCC12UPCA:
049659680713
A002050EANUCC13EAN13:
0049659680713
Subject to Environmental Change:
N
Tariff Code for entry into Mexico:
Yes
Temperature Sensitive:
N
Top 354:
N
Unit Pack Height (mm):
38.1
Unit Pack Invoiced:
N
Unit Pack Length (mm):
414.02
Unit Pack Shippable:
N
Unit Pack Weight (kg):
2.8122704
Unit Pack Width (mm):
248.92
UOM:
Each
Use Placeholder Photo:
N
US Web Price:
$1436.00
Variable Unit:
N
Web Catalog-US-EN:
Y
Web Price:
$1436.00
Starrett Model No.:
436.1
Sales Category:
TOOLS.HARDWARE TOOLS (DISCOUNTABLE).
Discontinued:
false
Catalog Section Page:
18
Catalog Section:
https://s3.us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Section-01-Micrometers.pdf
Western Link Inventory:
0
Category L1:
Micrometers
Category L2:
Micrometer Sets
US Promo Price:
$0.00
01 Attribute:
Micrometer Type
Schedule B Number:
9017.30.4000
Available In Region:
United States|Canada
Mt Airy Inventory:
0
Country of Origin:
China
Member of Set:
936|436.1MXRL-50|PT01526|436.1MXRL-75|234MA-25|436.1MXRL-25|436.1MXRL-100|234MA-75|234MA-50
01 Spec:
Mechanical Outside
02 Attribute:
Set Range (mm)
02 Spec:
0-100mm
03 Attribute:
Graduations (mm)
03 Spec:
0.01mm
04 Attribute:
Micrometer Sizes
04 Spec:
25,50,75,100mm
05 Attribute:
Micrometers Included
05 Spec:
4
06 Attribute:
Anvil/Spindle Material
06 Spec:
Carbide
07 Attribute:
Anvil Type
07 Spec:
Flat
08 Attribute:
Spindle Type
08 Spec:
Flat
09 Attribute:
Lock Nut Type
09 Spec:
Knurled Ring Type
10 Attribute:
Thimble Type
10 Spec:
Ratchet
11 Attribute:
Frame Finish
11 Spec:
Black Gloss
12 Attribute:
Standards Included
12 Spec:
25,50,75mm
13 Attribute:
Case Type
13 Spec:
Wood Case
Anvil Type:
Flat
Cal Prop 65 Statement:
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
Catalog:
https://s3.us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Precision-Hand-Tools.pdf
EAN:
0049659680713
EDP:
68071
Electronic or Mechanical:
Mechanical
Feature 01:
The most popular precision micrometers used by skilled workmen worldwide
Feature 02:
Accurate, rugged, and easy to use
Feature 03:
Includes attractive, protective case, which keep micrometers and standards together, readily accessible
Feature 04:
Hard and stable one-piece friction thimble permits one-hand operation of micrometer and uniform contact pressure
Feature 05:
Balanced frame and thimble design ensure easy handling
Feature 06:
Gracefully designed tapered frame for use in narrow slots and tight places
Feature 07:
Micro-lapped measuring faces
Feature 08:
Starrett No-glare satin chrome finish on thimble and sleeve minimizes annoying surface glare under bright lights and resists rust
Feature 09:
Anvils sized at .250" (6.35mm) diameter.
Frame Finish:
Black Gloss
Graduations (mm):
0.01mm
Lock Nut Type:
Knurled Ring Type
Micrometer Type:
Mechanical Outside
Micrometers Included:
4
Product Photo 01:
https://s3.us-west-2.amazonaws.com/catsy.833/S436.1MBXRLZcUSp1.tif
Product Title:
S436.1MBXRLZ Outside Micrometer Set
Product Type:
Micrometer Set
Set Range (mm):
0-100mm
Short Description:
Outside Micrometer Set, Ratchet Thimble, Carbide Anvil-Spindle, 0-100mm Range, .01mm
Thimble Graduations:
Metric
Thimble Type:
Ratchet
Unit Pack Height (in):
1.5
Unit Pack Item Qty:
1
Unit Pack Length (in):
16.3
Unit Pack Width (in):
9.8
US List Price:
$1436.00
Web Priority-US-EN:
12600090
YouTube Video Code 01-US-EN:
YxX35W6VyTg
YouTube Video Code 02-US-EN:
1Nq2PI7q6Hk
Unit Pack Weight (lbs):
6.2
User Manual URL-US-EN:
https://www.starrett.com/um-436.1
RoHS (EU):
N
SDS Indicator:
N
Series Title:
436,436M Outside Micrometers
Status:
Active
Catalog URL-US-EN:
https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Precision-Hand-Tools.pdf
Cal Prop 65 Warning:
Y
Case Type:
Wood Case
Max. Range (mm):
100
Min. Range (mm):
0
Main Image:
https://s3.us-west-2.amazonaws.com/catsy.833/S436.1MBXRLZcUSp1.tif
Micrometer Sizes:
25,50,75,100mm
Spindle Type:
Flat
Standards Included:
25,50,75mm
Anvil/Spindle Material:
Carbide
Accessory:
3206|936|S234MD
The Starrett S436.1 Outside Micrometer Set includes 25mm, 50mm and 75mm and 100mm micrometers, three standards, adjusting wrench, in case. The most popular precision micrometers used by skilled workmen worldwide. This model features 0-100mm measuring range. Combination ratchet and speeder for uniform pressure and quicker adjustment. Recommended for mechanics, automotive service and machine shops, toolrooms, inspection departments and wherever gaging involves a wide range of measurements.
