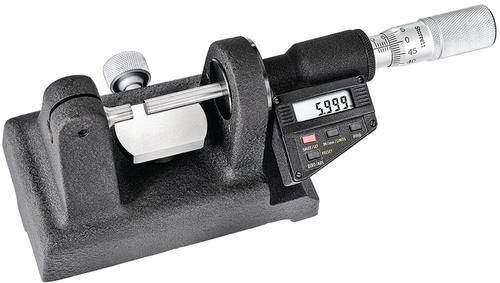

The Starrett W77.17 Wireless Bench Micrometer (with Output) with Standard Millimeter Graduations on Shell and Thimble features 0-1" (0-25mm) range, and carbide face with case.
Free Mobile Application
To use the wireless feature, download the free Datasure Mobile application from App Store (iOS) or Play Store (Android devices). Your wireless Starrett tool will communicate to your mobile device from a distance of up to 30 feet. Send the data with the click of a button or your Starrett wireless gage. It is automatically collected on your device, and can be emailed. air-dropped or texted. The datasure app also provides lots of features and functions such as digital read out (DRO), formulas, unit conversions (SAE/mm), ability to name tools (connect 5 to 8 tools depending your on device capability), name parts being measured, set min/max levels, use device as a remote display, and much more. Download the brochure or give us a call for more details!
W777.1XFLZ Wireless Electronic Bench Micrometer (with Output)
$1,692.00
- SKU:
- W777.1XFLZ
- UPC:
- 049659605990
- Product made to order status:
- MTO
- Product Photo 01:
- https://s3-us-west-2.amazonaws.com/catsy.833/W777.1XFLZe60599cUSp1.tif
- Product Title:
- W777.1XFLZ Wireless Electronic Bench Micrometer (with Output)
- Range (in):
- 0-1"
- Range (mm):
- 0-25mm
- Resolution (in):
- .00005"
- Resolution (mm):
- 0.001mm
- Series Title:
- 777.1 Electronic Digital Bench Micrometers
- Short Description:
- Wireless Bench Micrometer, Friction Thimble, Carbide Anvil, .00005", 0-1" Range
- SPC Output:
- No
- Spindle Type:
- Flat
- Status:
- Active
- Accuracy (in):
- +/-.0001"
- Accuracy (mm):
- +/-.002mm
- Anvil Type:
- Flat
- Anvil/Spindle Material:
- Carbide
- Thimble Graduations:
- English
- Thimble Type:
- Friction
- Top 354:
- N
- Unit Pack Height (in):
- 4.9
- Unit Pack Invoiced:
- N
- Unit Pack Length (in):
- 10.7
- Unit Pack Shippable:
- N
- Unit Pack Weight (lbs):
- 7.55
- Unit Pack Width (in):
- 6.3
- UOM:
- Each
- UPC:
- 049659605990
- Use Placeholder Photo:
- N
- US List Price:
- $1692.00
- US Web Price:
- $1692.00
- Web Catalog-US-EN:
- Y
- Web Priority-US-EN:
- 19400010
- Whitepaper 1 :
- https://s3-us-west-2.amazonaws.com/catsy.833/DataSure+4.pdf
- A002040UCC12UPCA:
- 049659605990
- A002050EANUCC13EAN13:
- 0049659605990
- Case Study:
- https://s3-us-west-2.amazonaws.com/catsy.833/Starrett+Datasure+4.pdf
- Category:
- Precision Measuring Tools > Precision Hand Tools > Micrometers > Bench
- Cal Prop 65 Chemical:
- Lead
- Cal Prop 65 Warning:
- Y
- Cal Prop 65 Statement:
- WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
- Country of Origin :
- United States
- EAN:
- 0049659605990
- EDP:
- 60599
- Effective List Date:
- 2022-12-31
- Effective Web Date:
- 2022-07-01
- Accessory:
- PT64036
- Feature 01:
- Wireless operating distance up to 9 meters (30 feet)
- Feature 02:
- Rechargeable battery port
- Feature 03:
- Starrett no-glare satin chrome finish on thimble and sleeve
- Feature 04:
- Large, easy-to-read .275 (7mm) high contrast LCD digital readout
- Feature 05:
- Extremely hard and stable one-piece spindle
- Feature 06:
- Auto Off after 20 minutes of nonuse
- Feature 07:
- Inch/millimeter conversion on English versions
- Feature 08:
- Smooth friction thimble for uniform pressure
- Feature 09:
- Measurement HOLD button
- Feature 10:
- Zero at any position
- Feature 11:
- Retain and return to true zero reading
- Feature 12:
- Spindle lock
- Feature 13:
- Ability to install minimum and maximum limits
- Feature 14:
- Resolution: .00005" (0.001mm)
- Feature 15:
- Accuracy +/-.0001 (+/-.002mm)
- Feature 16:
- PRESET button to install any reading at any position
- Assembled in US:
- Y
- Available for Purchase-US-EN:
- Y
- Available In Region :
- United States|Canada
- Brochure:
- https://s3-us-west-2.amazonaws.com/catsy.833/starrett-datasure-4-0-bulletin-591.pdf
- Brochure 2:
- https://s3-us-west-2.amazonaws.com/catsy.833/starrett-electronic-precision-hand-tools-bulletin-590.pdf
- Brochure URL-US-EN:
- https://www.starrett.com/vdoc/Starrett DataSure 4.0 (Bulletin 591)
- CAN List Price:
- CA$2141.00
- CAN Price List Name:
- 133W - 2021
- Combined Dollar Sales:
- 5640.50
- Combined Unit Sales :
- 5
- In Sugar Catalog:
- Yes
- Item Class:
- Stand-Alone
- Max. Range (in):
- 1
- Max. Range (mm):
- 25
- Min. Range (in):
- 0
- Min. Range (mm):
- 0
- Parent SKU As a Regular Field:
- 777.1
- Product Group Sort:
- bench
- Website-URL:
- https://www.starrett.com/details?cat-no=W777.1XFLZ
- Secondary Category:
- Precision Measuring Tools > Precision Hand Tools > Wireless
- Show in Web Nav?:
- Yes
- Total Inventory:
- 0
- Unit Sales 2020:
- 0
- Unit Sales 2021:
- 2
- Unit Sales 2022:
- 3
- US Price List Name:
- 133W - 2021
- US Web Temp Hold:
- Off
- Web Price:
- $1692.00
- Starrett Model No.:
- 777.1
- ICC:
- 110109 Special Fuction Microme
- Item Segmentation:
- Catalog
- Lock Nut Type:
- Lever
- Long Description:
- ELECTRONIC BENCH MICROMETER (ENGLISH), WIRELESS
- Made in America:
- Yes
- Main Image:
- https://s3-us-west-2.amazonaws.com/catsy.833/W777.1XFLZe60599cUSp1.tif
- Manufacturer's code:
- 049659
- Micrometer Type:
- Wireless Electronic Bench Micrometer
- Name:
- ELECTRONIC BENCH MICROMETER (ENGLISH), WIRELESS
- Item ID:
- W777.1XFLZ
- Other Document 1 URL-US-EN:
- https://www.starrett.com/vdoc/DataSure 4.0 Whitepaper
- Other Document 2 URL-US-EN:
- https://www.starrett.com/vdoc/DS 4.0 at Roush Yates Engines
- Electronic or Mechanical:
- Electronic
- Category L1:
- Micrometers
- Category L2:
- Bench Micrometers
- Sales Category:
- TOOLS.HARDWARE TOOLS (NON-DISCOUNTABLE).
- Athol Inventory:
- 0
- Flat Stock Inventory:
- 0
- Mt Airy Inventory :
- 0
- Rocky Mountain Inventory:
- 0
- US Next List Price:
- $1692.00
- IBC Category 1:
- Testing, Measuring and Inspection
- IBC Category 2:
- Dimensional Measurement Tools
- IBC Category 3:
- Specialty Micrometers
- Wireless:
- Yes
- User Manual URL-US-EN:
- https://www.starrett.com/UM-W733.1
- To Delete:
- false
- To Remove:
- false
- Webber Inventory:
- 0
- Minimum Order Quantity:
- 0
- Discontinued:
- false
- 01 Attribute :
- Micrometer Type
- 01 Spec:
- Wireless Electronic Bench Micrometer
- 02 Attribute:
- Electronic or Mechanical
- 02 Spec:
- Electronic
- 03 Attribute:
- Range (in)
- 03 Spec:
- 0-1"
- 04 Attribute:
- Range (mm)
- 04 Spec:
- 0-25mm
- 05 Attribute:
- Resolution (in)
- 05 Spec:
- .00005"
- 06 Attribute:
- Resolution (mm)
- 06 Spec:
- 0.001mm
- 07 Attribute:
- Accuracy (in)
- 07 Spec:
- +/- .00015" (whole surface), +/- .0002" (edges),
- 08 Attribute:
- Accuracy (mm)
- 08 Spec:
- +/-.002mm
- 09 Attribute:
- Lock Nut Type
- 09 Spec:
- Lever
- 10 Attribute:
- Wireless
- 10 Spec:
- Yes
- 11 Attribute:
- Thimble Graduations
- 11 Spec:
- English
- 12 Attribute:
- Thimble Type
- 12 Spec:
- Friction
- 13 Attribute:
- Anvil/Spindle Material
- 13 Spec:
- Carbide
- 14 Attribute:
- Anvil Type
- 14 Spec:
- Flat
- 15 Attribute:
- Spindle Type
- 15 Spec:
- Flat
