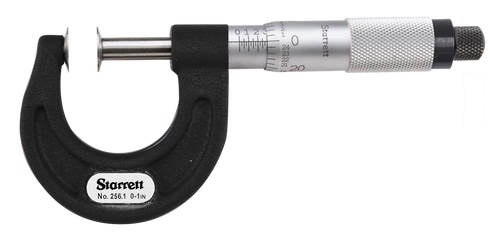

256.1RL-1 Disc-Type Micrometer

(No reviews yet) Write a Review

Write a Review

Close ×

256.1RL-1 Disc-Type Micrometer

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name Required

Email Required

Review Subject Required

Comments Required

SKU:

256.1RL-1

UPC:

049659572902

Case Type:

Not included

Category:

Precision Measuring Tools > Precision Hand Tools > Micrometers > Disc Micrometers

Cal Prop 65 Chemical:

Lead

Cal Prop 65 Warning:

Y

Cal Prop 65 Statement:

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov

Conflict Minerals:

N

Contaminated if Opened:

N

EAN:

0049659572902

EDP:

57290

Accessory:

910|3206

Feature 01:

Starrett satin chrome-no glare-resists rust

Feature 02:

Advanced sleeve design with staggered lines and distinct figures for precise and easy readability

Feature 03:

Quick-reading figures every thousandth numbered

Feature 04:

Balanced frame and thimble design ensure easy handling and better readability

Feature 05:

Ring type lock nut for quick and sure locking

Feature 06:

The combination ratchet and speeder for uniform pressure and quicker adjustment on all sizes

Feature 07:

Gracefully tapered frame for use in narrow slots and tight places

Feature 08:

Anvil and spindle discs are 1/2” (12.7mm) diameter tapering to .015” (0.4mm) edge thickness making it possible to enter narrow grooves and recesses

Feature 09:

Extremely hard and stable one-piece spindle (the heart of our accuracy)

Feature 10:

Quick and easy adjustment

Feature 11:

This tool is accurate to +/-.00015” or +/-0.003mm measuring over the whole surface and +/-.0002” or +/-0.004mm measuring on the edges

Athol Inventory:

0

Available for Purchase-US-EN:

Y

Flat Stock Inventory:

0

Item Class:

Stand-Alone

Max. Range (in):

1

Min. Range (in):

0

Parent SKU As a Regular Field:

256.1

Product Group Sort:

disc_micrometers

Webber Inventory:

0

Website-URL:

https://www.starrett.com/details?cat-no=256.1RL-1

Rocky Mountain Inventory:

0

Show in Web Nav?:

Yes

To Delete:

false

To Remove:

false

Total Inventory:

0

US Web Temp Hold:

Off

Fragile:

N

French Language Included:

N

Global Product Classification:

DISC MICROMETER, 0-1", .001" GRADS

Graduations (in):

.001"

Hazmat Indicator:

N

Item Segmentation:

Catalog

Lock Nut Type:

Knurled Ring Type

Long Description:

Each

Made in America:

Yes

Main Image:

https://s3.us-west-2.amazonaws.com/catsy.833/256.1RL-1e57290cUSp2-1.tif

Manufacturer's code:

049659

Marked Recyclable:

N

Micrometer Type:

Mechanical Disc Micrometer with Rotating Spindle

NAFTA Producer:

Yes

Item ID:

256.1RL-1

PMRA Regulated:

N

Product made to order status:

MTO

Product Photo 01:

https://s3.us-west-2.amazonaws.com/catsy.833/256.1RL-1e57290cUSp2-1.tif

Product Photo 02:

https://s3.us-west-2.amazonaws.com/catsy.833/256.1RL-1e57290cUSp1.tif

Product Title:

256.1RL-1 Disc-Type Micrometer

Range (in):

0-1"

Refrigerant Indicator:

N

RoHS (EU):

N

SDS Indicator:

N

Series Title:

256.1, 256.1M Disc Type Micrometers with Rotating and Non-Rotating Spindle

Shelf Pack Invoiced:

N

Shelf Pack Shippable:

N

Short Description:

Disc-Type Micrometer, Ratchet Thimble, 0-1" Range

Spindle Type:

Flat Disk

Status:

DISC

A0006160MSDSINDICATOR:

N

A000670ROHASCOMPLIANT:

N

A002040UCC12UPCA:

049659572902

A002050EANUCC13EAN13:

0049659572902

Accuracy (in):

+/- .00015" (whole surface), +/- .0002" (edges),

Anvil Type:

Flat Disk

Anvil/Spindle Material:

Steel

Subject to Environmental Change:

N

Tariff Code for entry into Mexico:

Yes

Temperature Sensitive:

N

Thimble Graduations:

English

Thimble Type:

Ratchet

Top 354:

N

Unit Pack Height (in):

2

Unit Pack Invoiced:

N

Unit Pack Length (in):

8

Unit Pack Shippable:

N

Unit Pack Weight (lbs):

2

Unit Pack Width (in):

4

UOM:

Each

US List Price:

$469.00

US Web Price:

$469.00

Variable Unit:

N

Web Catalog-US-EN:

Y

Web Price:

$469.00

Web Priority-US-EN:

14600060

Electronic or Mechanical:

Mechanical

Spindle Rotation:

Yes

Starrett Model No.:

256.1

Sales Category:

TOOLS.HARDWARE TOOLS (DISCOUNTABLE).

01 Spec:

Mechanical Disc Micrometer with Rotating Spindle

02 Attribute:

Electronic or Mechanical

02 Spec:

Mechanical

03 Attribute:

Range (in)

03 Spec:

0-1"

04 Attribute:

Accuracy (in)

04 Spec:

+/- .00015" (whole surface), +/- .0002" (edges),

05 Attribute:

Graduations (in)

05 Spec:

.001"

06 Attribute:

Lock Nut Type

06 Spec:

Knurled Ring Type

07 Attribute:

Thimble Graduations

07 Spec:

English

08 Attribute:

Thimble Type

08 Spec:

Ratchet

09 Attribute:

Case Type

09 Spec:

Not included

10 Attribute:

Anvil/Spindle Material

10 Spec:

Steel

11 Attribute:

Anvil Type

11 Spec:

Flat Disk

12 Attribute:

Spindle Type

12 Spec:

Flat Disk

13 Attribute:

Spindle Rotation

13 Spec:

Yes

Discontinued:

false

Current Catalog:

33

Current Catalog Page:

Add

Western Link Inventory:

0

Category L1:

Micrometers

Category L2:

Disc Micrometers

US Promo Price:

$0.00

01 Attribute:

Micrometer Type

COO Detail:

Made in the USA with US and Global Content

Schedule B Number:

9017.30.4000

Available In Region:

United States|Canada

Mt Airy Inventory:

0

Product Type:

Micrometer

Country of Origin:

United States

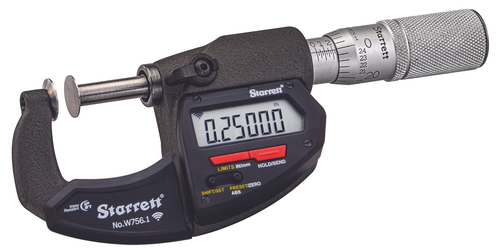

Superseded By:

W756.1FL-1

Dimension Type:

Inch

Market:

USA/CANADA
