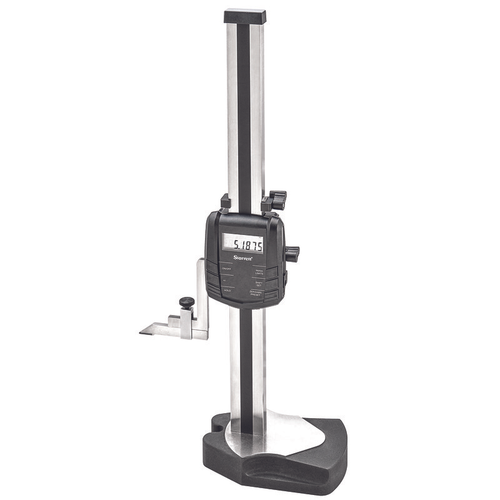

3754-12/300 Electronic Height Gage

3754-12/300 Electronic Height Gage

$1,091.00
(No reviews yet) Write a Review
SKU:
3754-12/300
UPC:
049659726251
Cal Prop 65 Chemical:
Lead
Contaminated if Opened:
N
Current Catalog:
33
Current Catalog Page:
112
Exists in Comport:
N
Assembled in US:
N
Athol Inventory:
0
Flat Stock Inventory:
0
In Sugar Catalog:
Yes
Item Class:
Stand-Alone
Parent SKU As a Regular Field:
3754
Product Group Sort:
icc110301
Webber Inventory:
0
Website-URL:
https://www.starrett.com/details?cat-no=3754-12/300
Rocky Mountain Inventory:
0
To Delete:
false
To Remove:
false
Top Seller:
Yes
Total Inventory:
0
US Web Temp Hold:
Off
Fragile:
N
French Language Included:
N
Global Product Classification:
ELECTRONIC HEIGHT GAGE, W/OUTPUT, 0-12"/300mm
Hazmat Indicator:
N
Long Description:
Each
Manufacturer's code:
049659
Marked Recyclable:
N
Product made to order status:
MTO
Promo Item-US-EN:
N
Published Locations:
Catalog 33
Refrigerant Indicator:
N
Shelf Pack Invoiced:
N
Shelf Pack Shippable:
N
Allow Testimonial:
N
Stocked Locally(Y/N)-US-EN:
N
Subject to Environmental Change:
N
Tariff Code for entry into Mexico:
No
Temperature Sensitive:
N
Top 354:
N
Unit Pack Height (mm):
736.6
Unit Pack Invoiced:
N
Unit Pack Length (mm):
317.5
Unit Pack Pricing Unit of Measure:
EA
Unit Pack Shippable:
N
Unit Pack Weight (kg):
6.3956472
Unit Pack Width (mm):
228.6
Use Placeholder Photo:
N
Variable Unit:
N
Web Price:
$1091.00
Sales Category:
TOOLS.HARDWARE TOOLS (NON-DISCOUNTABLE).
Discontinued:
false
Western Link Inventory:
0
brochure:
https://s3-us-west-2.amazonaws.com/catsy.833/starrett-electronic-precision-hand-tools-bulletin-590.pdf
categoryl1:
Height Gages
categoryl2:
Electronic Height Gages
number:
3754-12/300
01 Attribute:
Range (in)
A0006160MSDSINDICATOR:
N
A000670ROHASCOMPLIANT:
N
A002040UCC12UPCA:
049659726251
A002050EANUCC13EAN13:
0049659726251
Accessory:
PT99492|928|733SCU|733SCM|733SCKB
Available for Purchase-US-EN:
Y
Catalog Section:
https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Section-03-Height-Gages.pdf
Catalog Section Page:
6
Category:
Precision Measuring Tools > Height Gages > Electronic Height Gages
Category L1:
Height Gages
Category L2:
Electronic Height Gages
Item Segmentation:
Catalog
NAFTA Producer:
No
Item ID:
3754-12/300
PMRA Regulated:
N
Resolution (in):
.0005"
Resolution (mm):
0.01mm
Show in Web Nav?:
Yes
UOM:
Each
US Promo Price:
$0.00
US Web Price:
$1091.00
Web Catalog-US-EN:
Y
Schedule B Number:
9017.30.8000
Output:
None
Available In Region:
United States|Canada
Mt Airy Inventory:
0
ORS Part Numbers:
681-72625
Country of Origin:
China
Dimensional Drawing (IMG):
https://s3.us-west-2.amazonaws.com/catsy.833/3754-12s300cUSa7.tif
01 Spec:
0 - 12"
02 Attribute:
Range (mm)
02 Spec:
0 - 300mm
03 Attribute:
Accuracy (in)
03 Spec:
+/- 0.0015" for 0-18"; +/- 0.002" for 18-24"
04 Attribute:
Accuracy (mm)
04 Spec:
+/- 0.04mm
05 Attribute:
Resolution (in)
05 Spec:
.0005"
06 Attribute:
Resolution (mm)
06 Spec:
0.01mm
Accuracy (in):
+/- 0.0015" for 0-18"; +/- 0.002" for 18-24"
Accuracy (mm):
+/- 0.04mm for 0-450mm; +/- 0.05mm for 450-600mm
Brochure 1:
https://s3.us-west-2.amazonaws.com/catsy.833/starrett-electronic-precision-hand-tools-bulletin-590.pdf
Cal Prop 65 Statement:
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
Catalog:
https://s3.us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Precision-Hand-Tools.pdf
Datasheet:
https://s3.us-west-2.amazonaws.com/catsy.833/3754+Electronic+Height+Gage+Bulletin+129.pdf
EAN:
0049659726251
EDP:
72625
Electronic or Mechanical:
Electronic
Feature 01:
Large (9.65mm/3/8"), easy-to-read LCD display reads to 0.01mm or .0005"
Feature 02:
Instant unit conversion
Feature 03:
Carrier and scriber designed to read from zero
Feature 04:
Hold control feature to retains a reading at any position
Feature 05:
Plus or minus indication allows reading in proper direction
Feature 06:
Ability to set zero at any position
Feature 07:
Manual on/off plus a built-in automatic off after 30 minutes of non-use to conserve battery life.
Feature 08:
Large positive action keypad
Feature 09:
Ability to retain and return to the true zero reading of the height gage
Feature 10:
PRESET button to install any reading at any position
Feature 11:
Ability to install minimum and maximum limits
Feature 12:
RS232 data output port
Feature 13:
Works well with Starrett Datasure Wireless Data Collection Systems
Feature 14:
1-1/2+ years battery life. Two batteries furnished (CR2032).
Feature 15:
The base is well-balanced, hardened, ground and lapped.
Product Photo 01:
https://s3.us-west-2.amazonaws.com/catsy.833/3754-12s300cUSp1.tif
Product Photo 02:
https://s3.us-west-2.amazonaws.com/catsy.833/3754-12s300cUSp2.tif
Product Photo 03:
https://s3.us-west-2.amazonaws.com/catsy.833/3754+back_cUSp1.tif
Product Title:
3754-12/300 Electronic Height Gage
Product Type:
Height Gage
Range (in):
0 - 12"
Range (mm):
0 - 300mm
Short Description:
Electronic Height Gage, 12" Range, .0005" Res., SPC Output, with Scriber
Technical Reference 1:
https://s3.us-west-2.amazonaws.com/catsy.833/UL4200A-General-Certificate-of-Conformity-LCSA080122046S.pdf
Unit Pack Height (in):
29
Unit Pack Item Qty:
1
Unit Pack Length (in):
12.5
Unit Pack Width (in):
9
US List Price:
$1091.00
Web Priority-US-EN:
40600005
Unit Pack Weight (lbs):
14.1
User Manual URL-US-EN:
https://www.starrett.com/um-3754
RoHS (EU):
N
SDS Indicator:
N
Series Title:
3754 Electronic Digital Height Gages with Output
Status:
Active
Catalog URL-US-EN:
https://s3-us-west-2.amazonaws.com/catsy.833/Starrett-Catalog-33-Precision-Hand-Tools.pdf
Data Sheet URL-US-EN:
https://www.starrett.com/vdoc/3754 Electronic Height Gage (Bulletin 129)
Cal Prop 65 Warning:
Y
Max. Range (in):
12
Max. Range (mm):
300
Min. Range (in):
0
Min. Range (mm):
0
Main Image:
https://s3.us-west-2.amazonaws.com/catsy.833/3754-12s300cUSp1.tif
The Starrett 3754 Electronic Height Gage is a full featured, versatile and economic solution for most height measurement applications. All measuring information from these tools can be entered directly into Starrett Data Collection Systems for analysis, data collection and hard copy documentation. It is available in 0-12" and 0-24" ranges. 0-600mm (0-24") Range.
