SV436.1MDXRLZ Outside Micrometer Set

SV436.1MDXRLZ Outside Micrometer Set

$5,143.00
(No reviews yet) Write a Review
SKU:
SV436.1MDXRLZ
Discontinued:
false
01 Spec:
Mechanical Outside
01 Attribute:
Micrometer Type
02 Attribute:
Set Range (mm)
02 Spec:
150-300mm
03 Attribute:
Graduations (mm)
03 Spec:
0.001mm
04 Attribute:
Micrometer Sizes
04 Spec:
175,200,225,250,275,300mm
05 Attribute:
Micrometers Included
05 Spec:
6
06 Attribute:
Anvil/Spindle Material
06 Spec:
Carbide
07 Attribute:
Anvil Type
07 Spec:
Flat
08 Attribute:
Spindle Type
08 Spec:
Flat
09 Attribute:
Lock Nut Type
09 Spec:
Knurled Ring Type
10 Attribute:
Thimble Type
10 Spec:
Ratchet
11 Attribute:
Frame Finish
11 Spec:
Black Wrinkle
12 Attribute:
Standards Included
12 Spec:
175,200,225,250,275mm
13 Attribute:
Case Type
13 Spec:
Wood Case
A002040UCC12UPCA:
049659625325
A002050EANUCC13EAN13:
0049659625325
Anvil Type:
Flat
Available for Purchase-US-EN:
Y
Cal Prop 65 Statement:
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
Category:
Precision Measuring Tools > Precision Hand Tools > Micrometers > Micrometer Sets
Datasheet:
https://s3.us-west-2.amazonaws.com/catsy.833/STARRETT-436.1-OUTSIDE-MICROMETER-Datasheet.pdf
EDP:
62532
Feature 01:
The most popular precision micrometers used by skilled workmen worldwide
Feature 02:
Accurate, rugged, and easy to use
Feature 03:
All sets come with attractive, protective case, which keep micrometers and standards together, readily accessible
Feature 04:
Hard and stable one-piece friction thimble permits one-hand operation of micrometer and uniform contact pressure
Feature 05:
Balanced frame and thimble design ensure easy handling
Feature 06:
Gracefully designed tapered frame for use in narrow slots and tight places
Feature 07:
Micro-lapped carbide measuring faces
Feature 08:
Starrett No-glare satin chrome finish on thimble and sleeve minimizes annoying surface glare under bright lights and resists rust
Feature 09:
Quick and easy adjustment
Frame Finish:
Black Wrinkle
Graduations (mm):
0.001mm
Lock Nut Type:
Knurled Ring Type
Micrometer Type:
Outside Micrometer Set
NAFTA Producer:
No
Item ID:
SV436.1MDXRLZ
Product Photo 01:
https://s3.us-west-2.amazonaws.com/catsy.833/Missing-Image-Sign.tif
Product Title:
SV436.1MDXRLZ Outside Micrometer Set
Range (mm):
150-300mm
Resolution (mm):
0.001mm
Short Description:
Outside Micrometer Set, Ratchet Thimble, Carbide Anvil-Spindle, 150-300mm Range, .001mm
SLC Certification:
Optional Add-On
Starrett Model No.:
436.1
Thimble Graduations:
Metric
Thimble Type:
Ratchet
Unit Pack Height (in):
13.2
Unit Pack Item Qty:
1
Unit Pack Length (in):
22.3
Unit Pack Width (in):
22.3
UOM:
Each
US List Price:
$5143.00
US Promo Price:
$0.00
US Web Price:
$0.00
Web Catalog-US-EN:
Y
Web Priority-US-EN:
12600105
Unit Pack Weight (lbs):
15.65
Status:
Active
Manufacturer's code:
049659
Athol Inventory:
0
Cal Prop 65 Chemical:
Lead
Cal Prop 65 Warning:
Y
Case Type:
Wood
Max. Range (mm):
300
Min. Range (mm):
150
Mt Airy Inventory:
0
Product Group Sort:
pim_icc_num_110103
Rocky Mountain Inventory:
0
To Delete:
false
To Remove:
false
Total Inventory:
0
US Web Temp Hold:
Off
Webber Inventory:
0
Western Link Inventory:
0
Main Image:
https://s3.us-west-2.amazonaws.com/catsy.833/Missing-Image-Sign.tif
Product made to order status:
MTO
Schedule B Number:
9017.30.4000
Spindle Type:
Flat
Standards Included:
175,200,225,250,275mm
Anvil/Spindle Material:
Carbide
Web Price:
$0.00
Country of Origin:
China
Dimension Type:
Metric
Blades per Pack (pcs):
1
A0006160MSDSINDICATOR:
N
A000670ROHASCOMPLIANT:
N
PMRA Regulated:
N
Hazmat Indicator:
N
Conflict Minerals:
N
Contaminated if Opened:
N
Fragile:
N
Refrigerant Indicator:
N
Subject to Environmental Change:
N
Temperature Sensitive:
N
Micrometers Included:
6
Set Range (mm):
150-300mm
Micrometer Sizes:
175,200,225,250,275,300mm

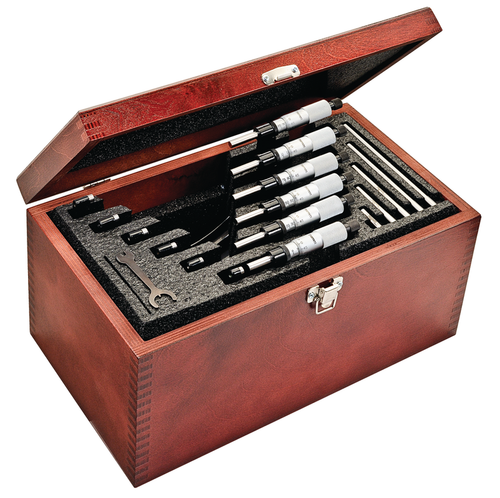

The Starrett S436.1 Outside Micrometer Set includes six (6) micrometers, five (5) standards, adjusting wrench, in case. The most popular precision micrometers used by skilled workmen worldwide. This model features 150-300mm Measuring Range Combination ratchet and speeder for uniform pressure and quicker adjustment. Recommended for mechanics, automotive service and machine shops, toolrooms, inspection departments and wherever gaging involves a wide range of measurements. With trust built into every measurement, the 436.1 is the micrometer professionals rely on to get the job done.
