The Starrett W769.1 Series Wireless Tube Micrometer is used for measuring the wall thickness of tubing and other materials that have cylindrical walls. This tool is also used for measuring from hole-to-edge. Built with customary Starrett quality and workmanship, the 769 series includes a large, easy-to-read, high-contrast LCD digital readout for clear readings. Its no-glare satin chrome finish minimizes annoying surface glare under bright lights indoors or filters out UV light. This model features 0.00005"in and 0.001mm resolution and 0-1"in and 0-25mm measuring range. Starrett electronic micrometers guarantee a precise measurement at every position each and every time. 0-1" (0-25mm) Range with Output, Carbide Spindle.
Free Mobile Application
To use the wireless feature, download the free Datasure Mobile application from i-Tunes (iOS) or Play Store (Android devices). Your wireless Starrett tool will communicate to your mobile device from a distance of up to 30 feet. Send the data with the click of a button or your Starrett wireless gage. It is automatically collected on your device, and can be emailed. air-dropped or texted. The datasure app also provides lots of features and functions such as digital read out (DRO), formulas, unit conversions (SAE/mm), ability to name tools (connect 5 to 8 tools depending your on device capability), name parts being measured, set min/max levels, use device as a remote display, and much more. Download the brochure or give us a call for more details!

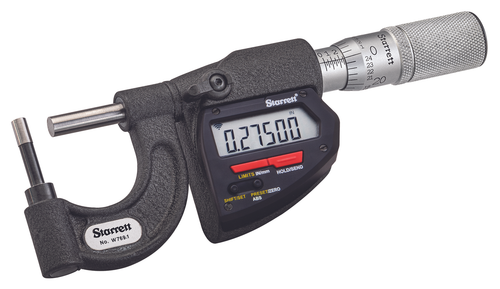

W769.1AXFL Wireless Electronic Tube Micrometer
$1,014.00
- SKU:
- W769.1AXFL
- UPC:
- 049659605983
- Case Study:
- https://s3-us-west-2.amazonaws.com/catsy.833/Data-Collection-at-Roush-Yates.pdf
- Category:
- Precision Measuring Tools > Precision Hand Tools > Micrometers > Tube
- Cal Prop 65 Chemical:
- Lead
- Cal Prop 65 Warning:
- Y
- Cal Prop 65 Statement:
- WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
- Country of Origin :
- United States
- EAN:
- 0049659605983
- EDP:
- 60598
- Accessory:
- PT64036
- Feature 01:
- Wireless operating distance up to 9 meters (30 feet)
- Feature 02:
- Rechargeable battery port
- Feature 03:
- Starrett no-glare satin chrome finish on thimble and sleeve
- Feature 04:
- Large, easy-to-read .275 (7mm) high contrast LCD digital readout
- Feature 05:
- Extremely hard and stable one-piece spindle
- Feature 06:
- Auto Off after 20 minutes of nonuse
- Feature 07:
- Inch/millimeter conversion on English versions
- Feature 08:
- Smooth friction thimble for uniform pressure
- Feature 09:
- Measurement HOLD button
- Feature 10:
- Zero at any position
- Feature 11:
- Retain and return to true zero reading
- Feature 12:
- Spindle lock
- Feature 13:
- Ability to install minimum and maximum limits
- Feature 14:
- Resolution: .00005" (0.001mm)
- Feature 15:
- Accuracy +/-.0001 (+/-.002mm)
- Feature 16:
- PRESET button to install any reading at any position
- Assembled in US:
- Y
- Athol Inventory:
- 0
- Available for Purchase-US-EN:
- Y
- Available In Region :
- United States|Canada
- Brochure 2:
- https://s3-us-west-2.amazonaws.com/catsy.833/starrett-electronic-precision-hand-tools-bulletin-590.pdf
- Brochure URL-US-EN:
- https://www.starrett.com/vdoc/Starrett DataSure 4.0 (Bulletin 591)
- Flat Stock Inventory:
- 0
- In Sugar Catalog:
- Yes
- Item Class:
- Stand-Alone
- Max. Range (in):
- 1
- Max. Range (mm):
- 25
- Min. Range (in):
- 0
- Min. Range (mm):
- 0
- Mt Airy Inventory :
- 0
- Parent SKU As a Regular Field:
- 769.1
- Product Group Sort:
- tube
- Webber Inventory:
- 0
- Website-URL:
- https://www.starrett.com/details?cat-no=W769.1AXFL
- Rocky Mountain Inventory:
- 0
- Secondary Category:
- Precision Measuring Tools > Precision Hand Tools > Wireless
- Show in Web Nav?:
- Yes
- To Delete:
- false
- To Remove:
- false
- Total Inventory:
- 0
- US Web Temp Hold:
- Off
- Global Product Classification:
- ELECTRONIC TUBE MICROMETER, WIRELESS
- Item Segmentation:
- Catalog
- Lock Nut Type:
- Lever
- Long Description:
- Each
- Made in America:
- Yes
- Main Image:
- https://s3-us-west-2.amazonaws.com/catsy.833/W769.1AXFLe60598cUSp1.tif
- Manufacturer's code:
- 049659
- Micrometer Type:
- Wireless Electronic Tube Micrometer
- Name:
- ELECTRONIC TUBE MICROMETER, WIRELESS
- Item ID:
- W769.1AXFL
- Other Document 1 URL-US-EN:
- https://www.starrett.com/vdoc/DataSure 4.0 Whitepaper
- Other Document 2 URL-US-EN:
- https://www.starrett.com/vdoc/DS 4.0 at Roush Yates Engines
- Type:
- Micrometer - Tube
- Product made to order status:
- MTO
- Product Photo 01:
- https://s3-us-west-2.amazonaws.com/catsy.833/W769.1AXFLe60598cUSp1.tif
- Product Title:
- W769.1AXFL Wireless Electronic Tube Micrometer
- Range (in):
- 0-1"
- Range (mm):
- 0-25mm
- Resolution (in):
- .00005"
- Resolution (mm):
- 0.001mm
- Series Title:
- 769.1 Electronic Digital Tube Outside Micrometers
- Short Description:
- Wireless Tube Outside Micrometer, Friction Thimble, Carbide and 3/16" Round, .00005", 0-1" Range
- SPC Output:
- No
- Spindle Type:
- Flat
- Status:
- Active
- A002040UCC12UPCA:
- 049659605983
- A002050EANUCC13EAN13:
- 0049659605983
- Accuracy (in):
- +/-.0001"
- Accuracy (mm):
- +/-.002mm
- Anvil Type:
- 3/16" Round
- Anvil/Spindle Material:
- Carbide
- Thimble Graduations:
- English
- Thimble Type:
- Friction
- Top 354:
- N
- Unit Pack Height (in):
- 1
- Unit Pack Invoiced:
- N
- Unit Pack Length (in):
- 8.3
- Unit Pack Shippable:
- N
- Unit Pack Weight (lbs):
- 0.85
- Unit Pack Width (in):
- 2.3
- UOM:
- Each
- UPC:
- 049659605983
- Use Placeholder Photo:
- N
- User Manual URL-US-EN:
- https://www.starrett.com/UM-W733.1
- US List Price:
- $1014.00
- US Next List Price:
- $1014.00
- US Web Price:
- $1014.00
- Web Catalog-US-EN:
- Y
- Web Price:
- $1014.00
- Web Priority-US-EN:
- 19000020
- Whitepaper 1 :
- https://s3-us-west-2.amazonaws.com/catsy.833/Data-Collection-in-Manufacturing.pdf
- Wireless:
- Yes
- Electronic or Mechanical:
- Electronic
- Starrett Model No.:
- 769.1
- Category L1:
- Micrometers
- Category L2:
- Tube Micrometers
- Sales Category:
- TOOLS.HARDWARE TOOLS (NON-DISCOUNTABLE).
- 01 Attribute :
- Micrometer Type
- 01 Spec:
- Wireless Electronic Tube Micrometer
- 02 Attribute:
- Electronic or Mechanical
- 02 Spec:
- Electronic
- 03 Attribute:
- Range (in)
- 03 Spec:
- 0-1"
- 04 Attribute:
- Range (mm)
- 04 Spec:
- 0-25mm
- 05 Attribute:
- Resolution (in)
- 05 Spec:
- .00005"
- 06 Attribute:
- Resolution (mm)
- 06 Spec:
- 0.001mm
- 07 Attribute:
- Accuracy (in)
- 07 Spec:
- +/- .00015" (whole surface), +/- .0002" (edges),
- 08 Attribute:
- Accuracy (mm)
- 08 Spec:
- +/-.002mm
- 09 Attribute:
- Lock Nut Type
- 09 Spec:
- Lever
- 10 Attribute:
- Wireless
- 10 Spec:
- Yes
- 11 Attribute:
- Thimble Graduations
- 11 Spec:
- English
- 12 Attribute:
- Thimble Type
- 12 Spec:
- Friction
- 13 Attribute:
- Anvil/Spindle Material
- 13 Spec:
- Carbide
- 14 Attribute:
- Anvil Type
- 14 Spec:
- 3/16" Round
- 15 Attribute:
- Spindle Type
- 15 Spec:
- Flat
- 16 Attribute:
- Product Type
- 16 Spec:
- Micrometer - Tube
- Discontinued:
- false
- Current Catalog:
- 33
- Current Catalog Page:
- add
- Brochure 1:
- https://s3-us-west-2.amazonaws.com/catsy.833/starrett-datasure-4-0-bulletin-591.pdf
- Western Link Inventory:
- 0
- Unit Pack Item Qty:
- 1
