The Starrett W762.1XFL Wireless Micrometer Head with Standard Millimeter Graduations on Shell and Thimble includes 0-1"/0-25mm range, friction thimble, lock nut, and carbide face. Featuring large digital readout that is easy to read and reduces errors. Conventional inch or millimeter graduations are standard. Heads are easy to handle with smooth friction thimble for uniform pressure. 0-1" (0-25mm) Range, Friction Thimble, Lock Nut, Carbide Face.
Free Mobile Application
To use the wireless feature, download the free Datasure Mobile application from i-Tunes (iOS) or Play Store (Android devices). Your wireless Starrett tool will communicate to your mobile device from a distance of up to 30 feet. Send the data with the click of a button or your Starrett wireless gage. It is automatically collected on your device, and can be emailed. air-dropped or texted. The datasure app also provides lots of features and functions such as digital read out (DRO), formulas, unit conversions (SAE/mm), ability to name tools (connect 5 to 8 tools depending your on device capability), name parts being measured, set min/max levels, use device as a remote display, and much more. Download the brochure or give us a call for more details!

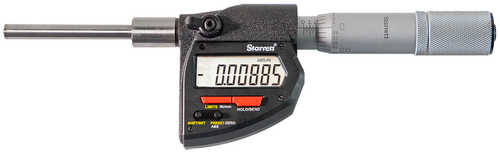

W762.1XFL Wireless Electronic Micrometer Head
$701.00
- SKU:
- W762.1XFL
- UPC:
- 049659605952
- Product made to order status:
- MTO
- Product Photo 01:
- https://s3-us-west-2.amazonaws.com/catsy.833/W7621XFLe60595cUSp1.jpg
- Product Title:
- W762.1XFL Wireless Electronic Micrometer Head
- Range (in):
- 0-1"
- Range (mm):
- 0-25mm
- Resolution (in):
- .00005"
- Resolution (mm):
- 0.001mm
- Series Title:
- 762.1 Electronic Digital Micrometer Heads
- Short Description:
- Wireless Micrometer Head, Friction Thimble, 0-1" Range, .0001" - 0.001mm
- SPC Output:
- No
- Spindle Material:
- Carbide
- Spindle Type:
- Flat
- Status:
- Active
- Accuracy (in):
- +/-.0001"
- Accuracy (mm):
- +/-.003mm
- Thimble Graduations:
- English
- Thimble Type:
- Friction
- Top 354:
- N
- Unit Pack Height (in):
- 1.4
- Unit Pack Invoiced:
- N
- Unit Pack Length (in):
- 9.1
- Unit Pack Shippable:
- N
- Unit Pack Weight (lbs):
- 1.05
- Unit Pack Width (in):
- 2.8
- UOM:
- Each
- UPC:
- 049659605952
- Use Placeholder Photo:
- N
- US List Price:
- $701.00
- US Web Price:
- $701.00
- Web Catalog-US-EN:
- Y
- Web Priority-US-EN:
- 14200070
- Whitepaper 1 :
- https://s3-us-west-2.amazonaws.com/catsy.833/DataSure+4.pdf
- A002040UCC12UPCA:
- 049659605952
- A002050EANUCC13EAN13:
- 0049659605952
- Case Study:
- https://s3-us-west-2.amazonaws.com/catsy.833/Starrett+Datasure+4.pdf
- Category:
- Precision Measuring Tools > Precision Hand Tools > Micrometers > Micrometer Heads
- Cal Prop 65 Chemical:
- Lead
- Cal Prop 65 Warning:
- Y
- Cal Prop 65 Statement:
- WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
- Country of Origin :
- China
- EAN:
- 0049659605952
- EDP:
- 60595
- Effective List Date:
- 2022-12-31
- Effective Web Date:
- 2022-07-01
- Accessory:
- PT64036|733SCKB|733SCU|733SCM|PT61963|PT61120|247A|247B|247C|247D|247E
- Feature 01:
- Wireless operating distance up to 9 meters (30 feet)
- Feature 02:
- Rechargeable battery port
- Feature 03:
- Starrett no-glare satin chrome finish on thimble and sleeve
- Feature 04:
- Large, easy-to-read .275 (7mm) high contrast LCD digital readout
- Feature 05:
- Extremely hard and stable one-piece spindle
- Feature 06:
- Auto Off after 20 minutes of nonuse
- Feature 07:
- Inch/millimeter conversion on English versions
- Feature 08:
- Smooth friction thimble for uniform pressure
- Feature 09:
- Measurement HOLD button
- Feature 10:
- Zero at any position
- Feature 11:
- Retain and return to true zero reading
- Feature 12:
- Spindle lock
- Feature 13:
- Ability to install minimum and maximum limits
- Feature 14:
- Resolution: .00005" (0.001mm)
- Feature 15:
- Accuracy +/-.0001 (+/-.002mm)
- Feature 16:
- PRESET button to install any reading at any position
- Assembled in US:
- N
- Athol Inventory:
- 23
- Available for Purchase-US-EN:
- Y
- Available In Region :
- United States|Canada
- Brochure:
- https://s3-us-west-2.amazonaws.com/catsy.833/starrett-datasure-4-0-bulletin-591.pdf
- Brochure 2:
- https://s3-us-west-2.amazonaws.com/catsy.833/starrett-electronic-precision-hand-tools-bulletin-590.pdf
- Brochure URL-US-EN:
- https://www.starrett.com/vdoc/Starrett DataSure 4.0 (Bulletin 591)
- CAN List Price:
- CA$888.00
- CAN Price List Name:
- 133W - 2021
- CAN Web Price:
- CA$737.88
- Combined Dollar Sales:
- 825.00
- Combined Unit Sales :
- 2
- In Sugar Catalog:
- Yes
- Item Class:
- Stand-Alone
- Max. Range (in):
- 1
- Max. Range (mm):
- 25
- Min. Range (in):
- 0
- Min. Range (mm):
- 0
- Parent SKU As a Regular Field:
- 762.1
- Product Group Sort:
- icc110106
- Website-URL:
- https://www.starrett.com/details?cat-no=W762.1XFL
- Secondary Category:
- Precision Measuring Tools > Precision Hand Tools > Wireless
- Show in Web Nav?:
- Yes
- Total Inventory:
- 23
- Unit Sales 2020:
- 0
- Unit Sales 2021:
- 2
- Unit Sales 2022:
- 0
- US Price List Name:
- 133W - 2021
- US Web Temp Hold:
- Off
- Web Price:
- $701.00
- Starrett Model No.:
- 762.1
- Electronic or Mechanical:
- Electronic
- ICC:
- 110106 Micrometer Heads
- Item Segmentation:
- Catalog
- Lock Nut Type:
- Lever Type
- Long Description:
- MICROMETER HEAD, ELECTRONIC, WIRELESS
- Main Image:
- https://s3-us-west-2.amazonaws.com/catsy.833/W7621XFLe60595cUSp1.jpg
- Manufacturer's code:
- 049659
- Material:
- Steel
- Micrometer Type:
- Electronic Micrometer Head
- Name:
- MICROMETER HEAD, ELECTRONIC, WIRELESS
- Item ID:
- W762.1XFL
- Other Document 1 URL-US-EN:
- https://www.starrett.com/vdoc/DataSure 4.0 Whitepaper
- Other Document 2 URL-US-EN:
- https://www.starrett.com/vdoc/DS 4.0 at Roush Yates Engines
- Category L1:
- Micrometers
- Category L2:
- Micrometer Heads
- Sales Category:
- TOOLS.HARDWARE TOOLS (NON-DISCOUNTABLE).
- Flat Stock Inventory:
- 0
- Mt Airy Inventory :
- 0
- Rocky Mountain Inventory:
- 0
- US Next List Price:
- $701.00
- IBC Category 1:
- Testing, Measuring and Inspection
- IBC Category 2:
- Dimensional Measurement Tools
- IBC Category 3:
- Micrometer Heads
- Wireless:
- Yes
- User Manual URL-US-EN:
- https://www.starrett.com/UM-W733.1
- To Delete:
- false
- To Remove:
- false
- Webber Inventory:
- 0
- Minimum Order Quantity:
- 0
- Orderable Online Today (US Only):
- Yes
- Discontinued:
- false
- 01 Attribute :
- Micrometer Type
- 01 Spec:
- Electronic Micrometer Head
- 02 Attribute:
- Electronic or Mechanical
- 02 Spec:
- Electronic
- 03 Attribute:
- Range (in)
- 03 Spec:
- 0-1"
- 04 Attribute:
- Range (mm)
- 04 Spec:
- 0-25mm
- 05 Attribute:
- Resolution (in)
- 05 Spec:
- .00005"
- 06 Attribute:
- Resolution (mm)
- 06 Spec:
- 0.001mm
- 07 Attribute:
- Accuracy (in)
- 07 Spec:
- +/- .00015" (whole surface), +/- .0002" (edges),
- 08 Attribute:
- Accuracy (mm)
- 08 Spec:
- +/-.003mm
- 09 Attribute:
- Lock Nut Type
- 09 Spec:
- Lever Type
- 10 Attribute:
- Wireless
- 10 Spec:
- Yes
- 11 Attribute:
- Thimble Graduations
- 11 Spec:
- English
- 12 Attribute:
- Thimble Type
- 12 Spec:
- Friction
- 13 Attribute:
- Spindle Type
- 13 Spec:
- Flat
- 14 Attribute:
- Spindle Material
- 14 Spec:
- Carbide
